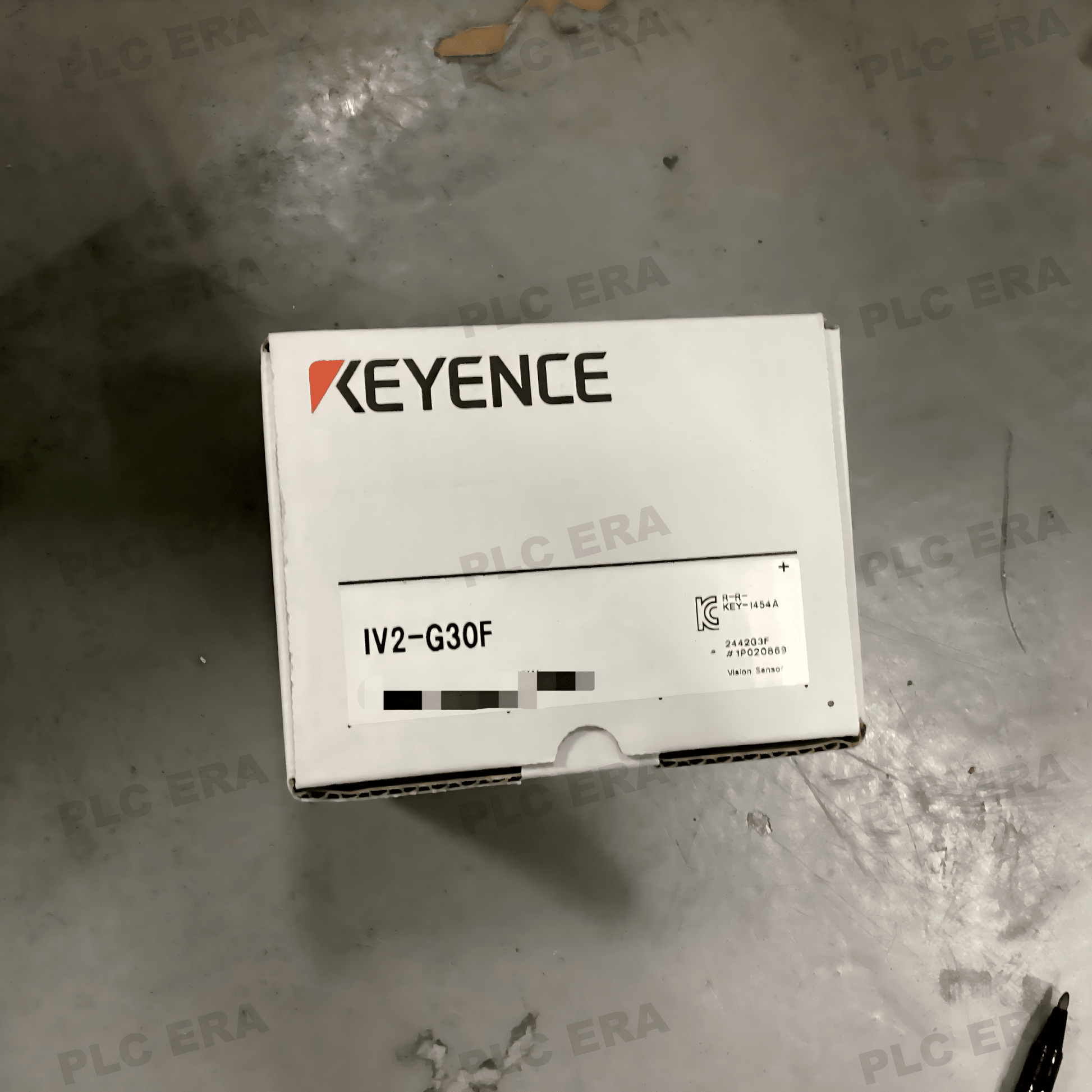

KEYENCE IV2-G30F IV2 Series Sensor Amplifier Learning/Standard Mode

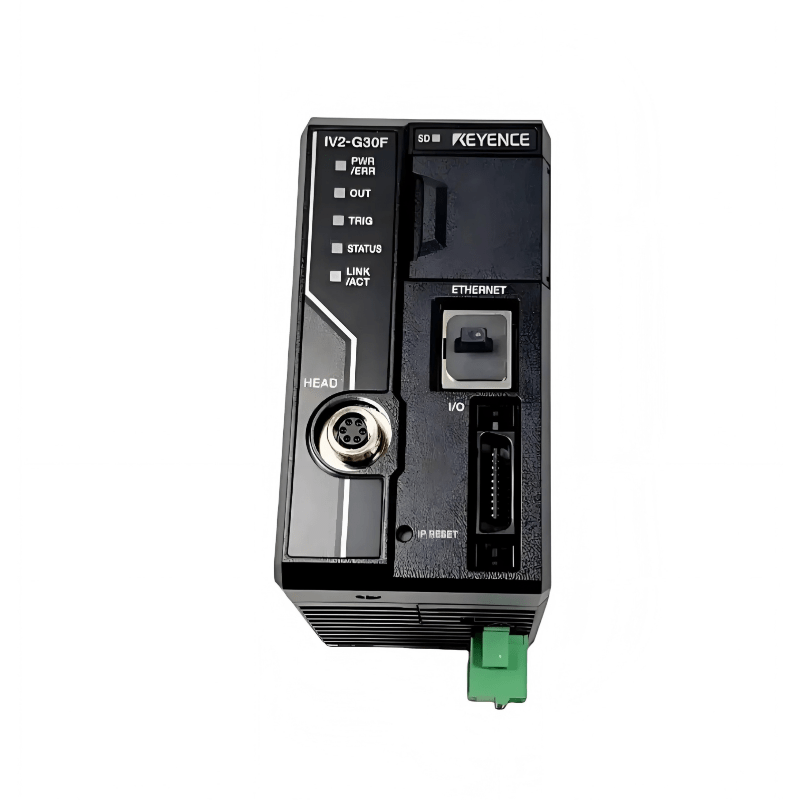

KEYENCE IV2-G30F is a vision sensor control unit (amplifier) for the IV2 series vision sensors. Designed to simplify complex inspections through built‑in AI, it eliminates the need for advanced vision programming. Dual‑mode operation supports both Learning Mode (automatic setup by showing OK/NG samples) and Standard Mode (advanced tool‑driven configuration). Built‑in Ethernet with EtherNet/IP™ and PROFINET enables direct PLC connectivity. SD card slot provides program storage (up to 128 programs) and image logging (up to 1000 images). 8 inputs and 8 outputs (NPN/PNP selectable). 24 V DC power supply. For use with IV2 series camera heads (sold separately).

Applications:

• Multi‑point assembly inspection (e.g., presence of O‑rings, screws, clips)

• Automotive part traceability and orientation verification across different models

• Food and beverage packaging quality (label alignment, cap presence, multi‑product switching)

• Error proofing (poka‑yoke) to prevent defective parts from advancing

• General pass/fail checks and complex multi‑parameter inspections

Core Specifications:

Advanced Specifications:

Inputs

• Type: Switchable between non‑voltage input and voltage input

• Number of inputs: 8 (IN1 to IN8)

• IN1 function: External trigger

• IN2 to IN8: Assignable functions (program switching, clear error, external master image registration, SD card save cancel)

Outputs

• Type: Open collector output, NPN/PNP switchable, N.O./N.C. switchable

• Number of outputs: 8 (OUT1 to OUT8)

• NPN rating: 26.4 V, 50 mA, residual voltage ≤ 1.5 V

• PNP rating: 26.4 V, 50 mA, residual voltage ≤ 2 V

• Assignable functions: total judgment (OK/NG), Run, Busy, Ready, Strobe, position adjustment result, tool judgment results, logical operation results, Error, SD card error

Power & Environment

• Power voltage: 24 V DC ±10 % (including ripple)

• Current consumption: 1.8 A or less (including communication unit and output load)

• Mounting: DIN rail

• Weight: approx. 330 g

Standard Mode Built‑in Tools:

• Outline, Color area, Area, Edge pixels, Color average, Brightness average, Width, Diameter, Edge presence, Pitch, OCR, Color/brightness prohibit, Position adjustment, High‑speed position adjustment (1‑axis edge / 2‑axis edge)

• Detection tools: 16 tools, position adjustment tool: 1 tool*³

Note: Color‑related tools only available when using colour sensor heads

Learning Mode Features:

• Automatic configuration of optimal lighting, focus and detection parameters by showing "Good" and "Bad" parts

• Additional learning function for incremental refinement

Utilities & Analysis:

• Failing sensor list, Failure hold, Test run, I/O monitor, Security settings, Simulator*⁷

• RUN display: Tools list (judgment results, degree of similarity, bar display)

• RUN information: Histogram, processing time, count, output monitor (switchable)

System Integration:

• This sensor amplifier belongs to the KEYENCE IV2 series vision sensor system.

• Must be used with IV2 series camera heads (sold separately).

• DIN rail mounting (35 mm).

• The amplifier can be operated via the optional IV2-CP50 control panel or IV2‑Navigator software.

• Images saved to the amplifier‘s internal memory can be backed up to a USB memory stick inserted into the control panel (IV2-CP50) or to a PC running IV2 series software (IV2‑H1).

• SD/SDHC card slot supports program storage, data logging, and system updates.

• Communication units (DL series, order separately) add EtherCAT®, CC‑Link, DeviceNet®, PROFIBUS or RS‑232C connectivity.

• For detailed installation, wiring and configuration, refer to the IV2 series user‘s manual.

Related Products (order separately):

• IV2‑G500MA – Standard monochrome autofocus sensor head

• IV2‑G500CA – Standard colour autofocus sensor head

• IV2‑G150MA – Narrow field of view monochrome sensor head

• IV2‑G300CA – Wide field of view colour sensor head

• IV2‑G600MA – Wide field of view monochrome sensor head

• IV2‑CP50 – Touch panel control panel for IV2 series

• IV2‑H1 – IV2 series configuration software

• OP‑87904 – Sensor head connection cable, 5 m

• DL series communication units – For EtherCAT®, CC‑Link, DeviceNet®, PROFIBUS or RS‑232C

• SD/SDHC card – For program storage and data logging (user‑supplied)
