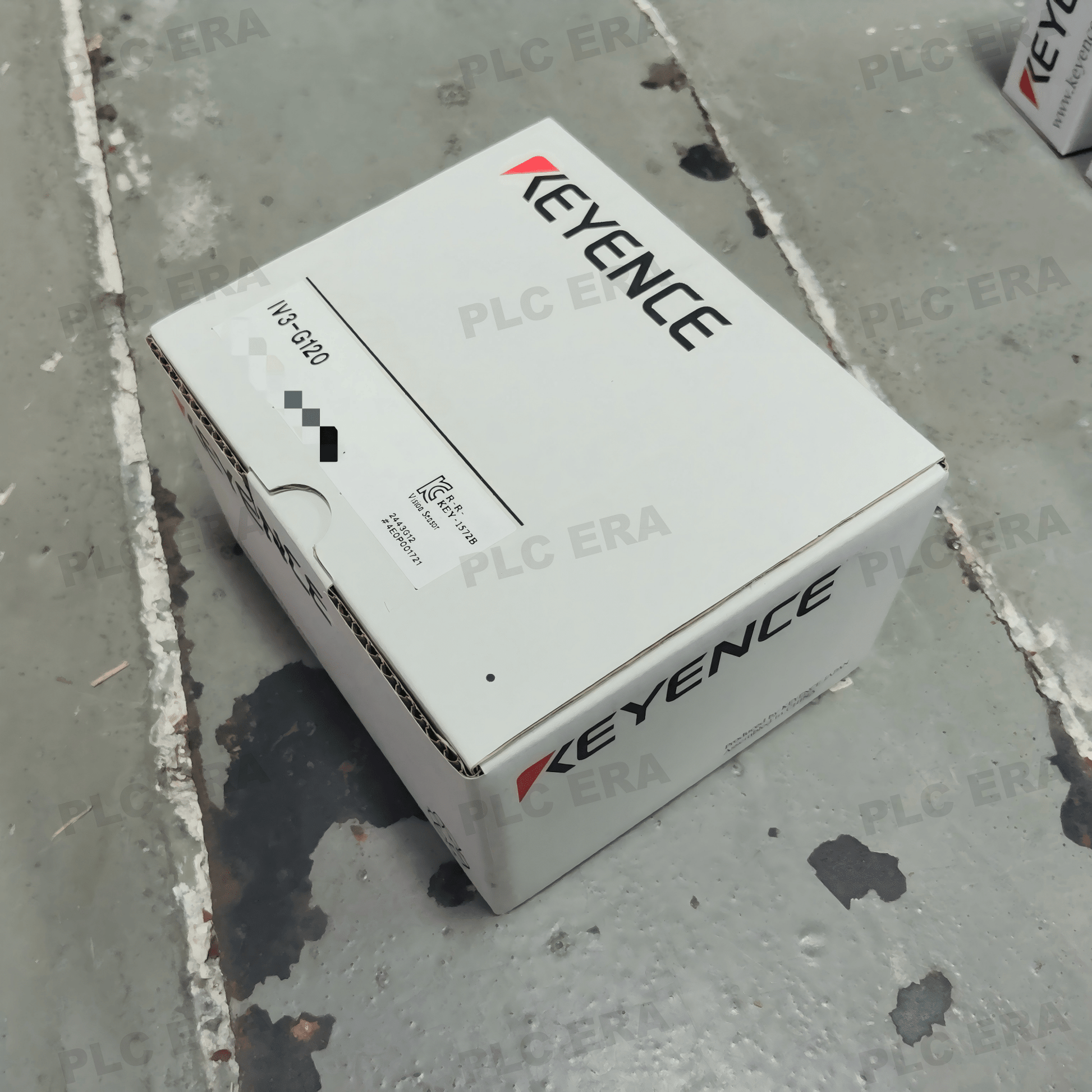

KEYENCE IV3-G120 Compact Model Sensor Amplifier 24V DC

KEYENCE IV3-G120 is a compact sensor amplifier for the IV3 series vision sensors. It connects to IV3 series camera heads (sold separately) and processes images using built‑in AI to perform pass/fail judgments based on learning, outline, color area, area, edge pixels, width, diameter, pitch, OCR and other detection tools. Standard mode and sorting mode are available. The unit provides 8 inputs (IN1 to IN8) and 8 outputs (OUT1 to OUT8). Built‑in Ethernet supports EtherNet/IP™, PROFINET and TCP/IP non‑procedure communication. Communication units (sold separately) add EtherCAT®, CC‑Link, DeviceNet®, RS‑232C or PROFIBUS connectivity. The amplifier can store up to 100 images internally; an SD card slot allows program and image backup/transfer. For use with AI Lighting unit, order separately.

Applications:

• Presence/absence inspection of components on assembly lines

• Orientation and part differentiation in automated pick‑and‑place

• Quality control and defect detection in manufacturing

• OCR (optical character recognition) on product labels

• Position adjustment and alignment in packaging machinery

Technical Specifications:

General

• Model: IV3‑G120

• Type: Compact sensor amplifier (main controller unit)

Tool & Modes

• Available modes: Standard mode / Sorting mode

• Standard mode tools: Learning, Outline, Color area, Area, Edge pixels, Color average, Brightness average, Width, Diameter, Edge presence, Pitch, OCR, Color prohibit*, Brightness prohibit, Position adjustment, High‑speed position adjustment (1‑axis edge/2‑axis edge), Blob count

• Total tools: 65 tools*

Program Memory & Image Storage

• Switch settings (programs): 128 programs (when using SD card) / 32 programs (without SD card)

• Image history: up to 100 images (saved to internal memory)*

Image Data Transfer

• Transfer destination: SD card, FTP server, SFTP server

• Transfer format: bmp, jpeg, iv3p, txt

I/O Specifications

• Input type: switchable between non‑voltage input and voltage input

• Number of inputs: 8 (IN1 to IN8)

• Function: IN1 = External trigger; IN2 to IN8 assignable (program switching, clear error, external master image registration, SD card save cancel)

• Output type: Photo MOS relay output, N.O./N.C. switchable

• Number of outputs: 8 (OUT1 to OUT8)

• Maximum rating: 26.4 V 50 mA, residual voltage 1.5 V or less*

• Assignable output functions: total judgment (OK/NG), Run, Busy, position adjustment result, judgment result of each tool, result of logical operation of each tool, Error, SD card error, variety discrimination result, master judgment result

Communications

• Ethernet standard: 1000BASE‑T/100BASE‑TX

• Connector: RJ‑45 8‑pin

• Network functions: FTP client, SFTP client

• Built‑in Ethernet protocols: EtherNet/IP™, PROFINET*, TCP/IP non‑procedure communication

• Communication units (order separately): EtherCAT®, CC‑Link, DeviceNet®, RS‑232C, PROFIBUS*

Electrical & Environmental

• Power voltage: 24 V DC ±10 % (including ripple)

• Current consumption: 2.2 A or less (including communication unit, without AI Lighting unit, including output load) / 3.4 A or less (including communication unit, with AI Lighting unit, including output load)

• Ambient temperature: 0 °C … +50 °C (no freezing)*

• Relative humidity: 35 % … 85 % RH (no condensation)

• Material: Main unit case PC; I/O terminal block PA; Ethernet connector copper alloy + Ni plating; main unit rear DIN rail fixing tab POM; power connector PA/POM; sensor head connector zinc + Ni plating/PA; main unit rear heat sink aluminum; nameplate PC

• Weight: approx. 300 g

Accessory Functions

• Image capture functions: digital zoom (2×, 4×), HDR, high gain, color filter, white balance, brightness correction, AI capture

• Tool functions: additional learning, mask outline, masking function, color extraction/exclusion, color histogram function, monochrome histogram function*, scaling function

• Utilities: failing sensor list, failure hold, test run, I/O monitor, security settings (two‑factor password), simulator*, additional FTP/SFTP image information, multi‑position adjustment, multi‑master image registration, high‑speed program switching, auto program switching, auto setting backup/restore, threshold changing in RUN

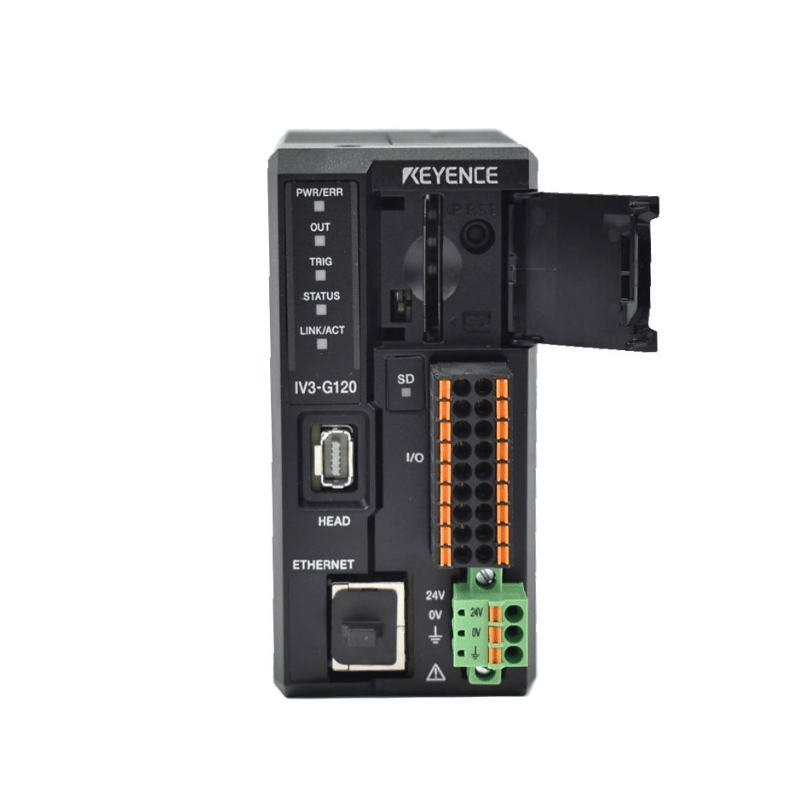

• Indicators: PWR/ERR, OUT, TRIG, STATUS, LINK/ACT, SD

System Integration:

• The IV3‑G120 belongs to the KEYENCE IV3 series of vision sensors. It requires a separate IV3 series camera head (sensor head) for operation.

• The amplifier can be mounted on a 35 mm DIN rail.

• Built‑in Ethernet supports direct connection to PLCs via EtherNet/IP™ or PROFINET protocols, with TCP/IP non‑procedure communication also available.

• For fieldbus networks not covered by built‑in Ethernet, a separate DL Series communication unit (EtherCAT®, CC‑Link, DeviceNet®, RS‑232C or PROFIBUS) is required.

• An AI Lighting unit can be added to improve illumination for demanding inspection tasks.

• Images saved to the amplifier’s internal memory can be backed up to a USB memory stick inserted into the control panel (IV3‑CP50) or to a PC running the IV3 Series software (IV3‑H1).

• Simulator function is available only in the IV3‑H1 software.

Product Status:
Active product. For use only with KEYENCE IV3 series camera heads, AI Lighting unit and DL Series communication units (order separately).
