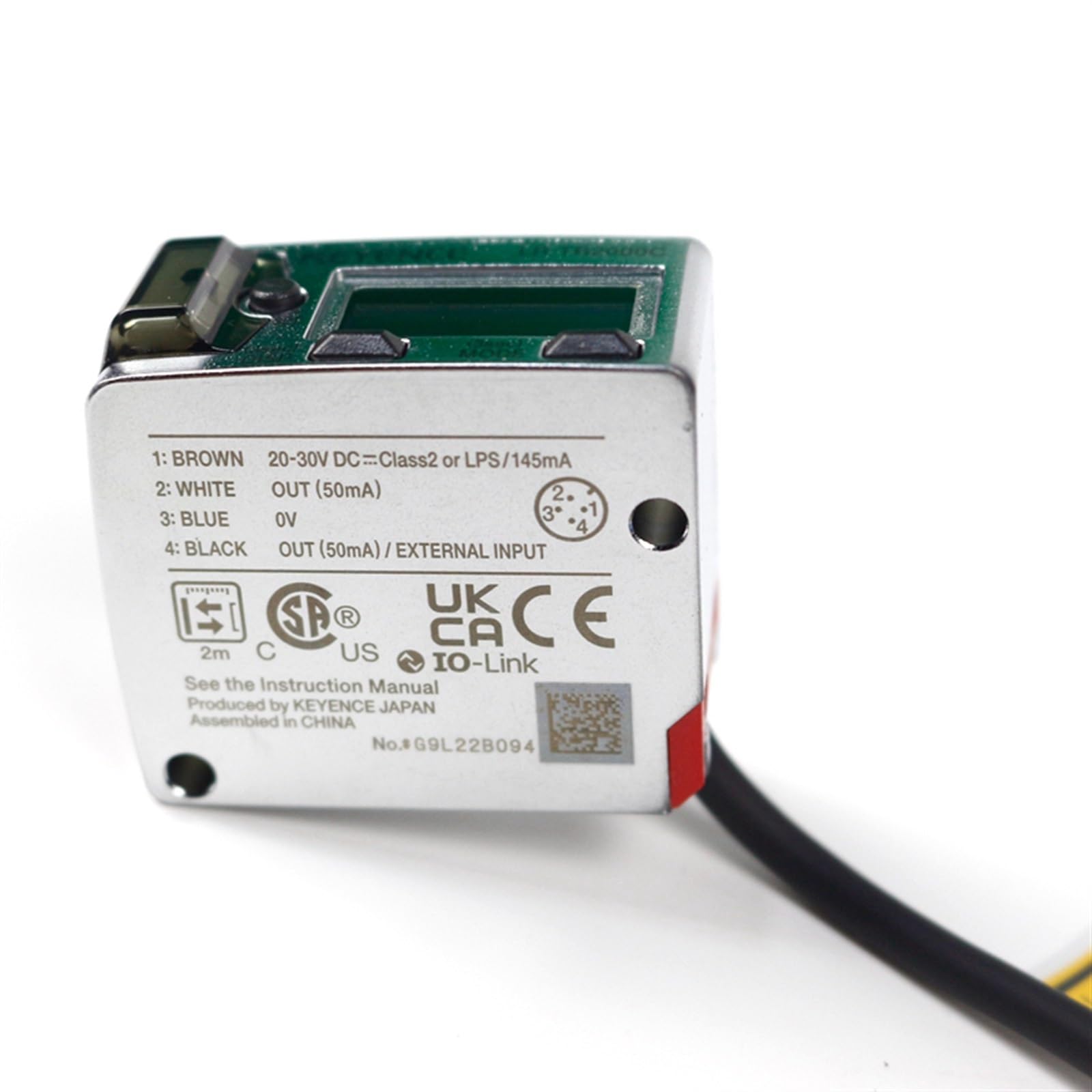

Keyence LR-TB2000C Self-contained TOF Laser Sensor 2m M12 Class 2

Keyence LR-T series LR‑TB2000C is a self-contained TOF (Time of Flight) laser sensor designed for stable detection of a wide range of targets regardless of colour, surface finish or material. 60 to 2000 mm detection range with visible red laser light source (660 nm, Class 2). Equipped with M12 connector cable (5‑core) for industrial connectivity. 5 selectable response times from 1 ms to 1000 ms. NPN/PNP open‑collector output selectable, IO‑Link V1.1/COM2 (38.4 kbps) support, and IP65/IP67 zinc die‑cast housing.

Applications:

• Part presence detection on conveyor systems

• Height verification and dimension measurement in automated assembly

• Small part detection and positioning for pick‑and‑place

• Object detection in packaging, automotive and electronics manufacturing

• Distance‑based detection where target reflectivity may vary

Technical Specifications:

Core Specifications

• Detection distance: 60 to 2000 mm (displayable range 50 to 2200)

• Spot diameter: approx. 4 mm

• Light source: Red laser (660 nm)

• Laser class: Class 2 laser product (IEC60825‑1, FDA (CDRH) Part1040.10)

• Mutual interference prevention: up to 4 units

• Timer functions: OFF / OFF‑delay / ON‑delay / One‑shot

• Response time: 1 ms / 10 ms / 25 ms / 100 ms / 1000 ms selectable

• I/O: Control output (NPN/PNP open‑collector selectable, 30 V DC or less, 50 mA or less, residual voltage 2 V or less, N.O./N.C. selectable), External input (light emission OFF / teaching / reference surface update)

• Protection circuits: Reverse power connection, power supply surges, output overcurrent, reverse output connection, output surge

• Supply voltage: 20 to 30 V DC, including 10 % ripple (P‑P), Class 2 or LPS

• Current consumption: 45 mA or less (without load) — 145 mA or less with load

• Communication: IO‑Link V1.1 / COM2 (38.4 kbps) supported

Environmental Specifications

• Enclosure rating: IP65 / IP67 (IEC60529)

• Ambient light: Incandescent lamp / sunlight: 100,000 lux or less

• Ambient temperature: –20 to +55 °C (no freezing)

• Relative humidity: 35 to 85 % RH (no condensation)

• Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in X,Y,Z directions

• Shock resistance: 1,000 m/s², 6 times each in X,Y,Z directions

Physical Specifications

• Housing material: Zinc die‑cast (nickel‑chrome plating)

• Indicator cover and buttons: PES

• Lens cover and display: PMMA with scratch‑resistant coating

• Cable bushing: PBT, Cable: PVC, M12 connector: TPE, PBT, Nickel‑plated brass

• Dimensions (H × W × D): approx. 36 mm × 13 mm × 26 mm

• Weight: approx. 85 g

System Integration:

• This sensor belongs to the Keyence LR‑T series of self‑contained TOF laser sensors.

• M12 4‑pin male connector mates with standard industrial M12 female cables.

• I/O configuration selectable from the following combinations: control output × 2, control output + external input (for teaching), or IO‑Link (parameter setting and diagnostics).

• For detailed wiring, I/O selection, and parameter setting, refer to the product hardware manual.

• Setup files (IODD) for IO‑Link configuration are available for download from the KEYENCE website.

Related Products:

• LR‑TB2000 – Cable type (without M12 connector)

• LR‑TB5000C – 5 m detection range version with M12 connector

• LR‑TB2000CL – 5 m detection range with cable connector (Class 1)

• OP‑87268 – M8 straight cable (2 m, IP68, 4‑pin)
