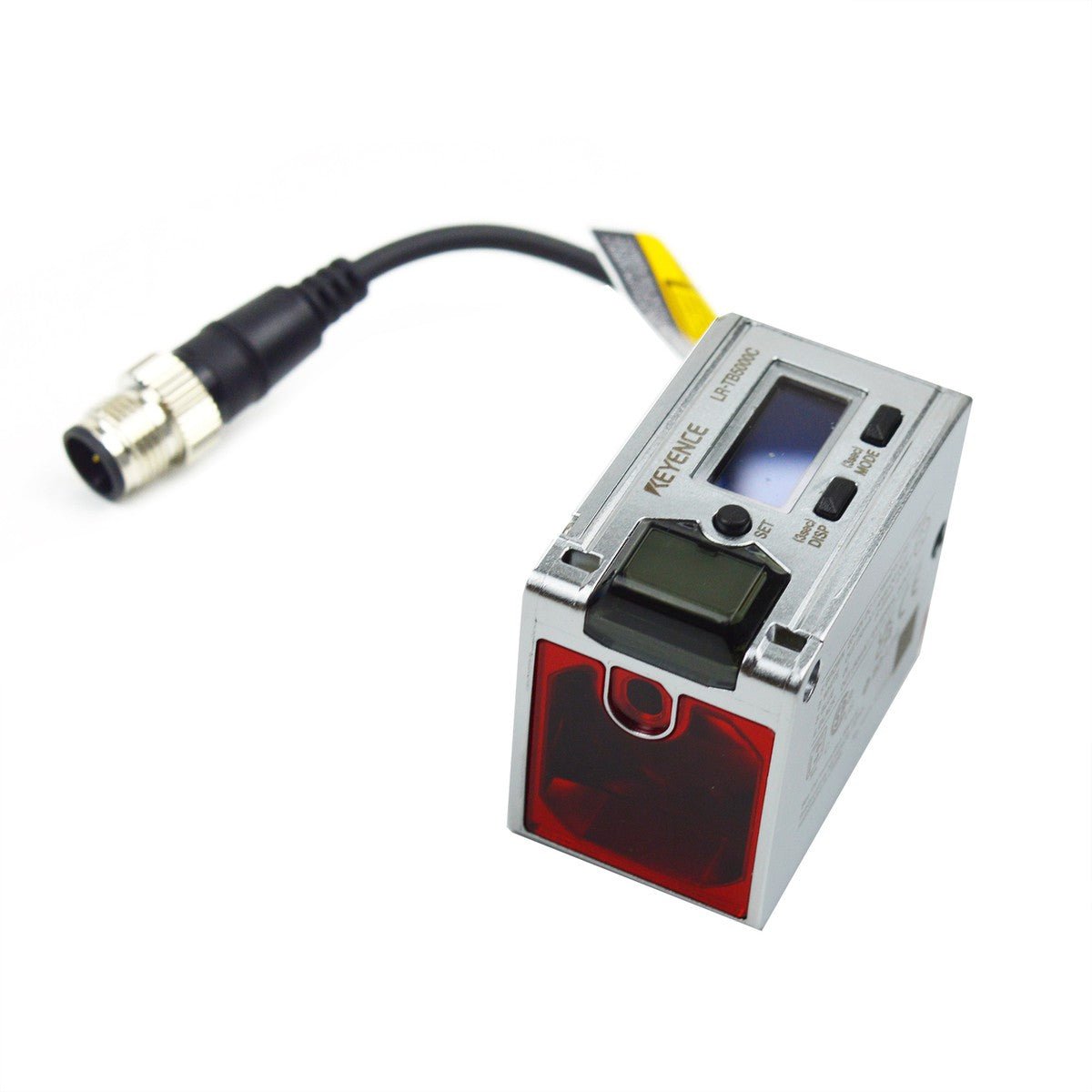

Keyence LR-TB5000C LR-T Series Self-contained TOF Laser Sensor 5m M12 Connector Class 2

Keyence LR-TB5000C is a self-contained TOF (Time of Flight) laser distance sensor for long‑range detection up to 5 m, using a red 660 nm laser (Class 2). Detection range 60 mm to 5000 mm. Adjustable spot diameter (≤40 mm). Five selectable response times (1 ms to 1000 ms). Rugged zinc die‑cast metal case rated IP65/IP67, IO‑Link V1.1/COM2 (38.4 kbps) compatible, with NPN/PNP open‑collector and analog output (4‑20 mA / 0‑10 V). M12 4‑pin connector type. Suitable for material handling, assembly automation, packaging machinery and high‑precision positioning systems.

Applications:

• Long‑range presence detection on conveyor and sorting systems (up to 5 m)

• Distance measurement and positioning in automated assembly lines

• Object detection in packaging machinery and palletising systems

• Fill‑level monitoring and positioning in material handling equipment

• High‑speed counting and inspection in industrial automation

Technical Specifications:

Core Specifications

• Detection distance: 60 to 5000 mm (displayable range 50 to 5200)

• Spot diameter: adjustable (use ≤40 mm)

• Light source: Red laser (660 nm)

• Laser class: Class 2 laser product (IEC60825‑1, FDA (CDRH) Part1040.10)

• Response time: selectable 1 ms / 10 ms / 25 ms / 100 ms / 1000 ms

• Mutual interference prevention: up to 4 units

• Timer functions: OFF / OFF‑delay / ON‑delay / One‑shot

Outputs & I/O

• Control output: NPN open‑collector / PNP open‑collector selectable, 30 V DC or less, 50 mA or less, residual voltage 2 V or less, N.O./N.C. selectable

• Analog output: selectable current output (4 to 20 mA, max. load resistance 500 Ω) or voltage output (0 to 10 V, external load resistance ≥ 5 kΩ)

• External input: transmission OFF / teaching / reference surface update selectable; short‑circuit current ≤ 1 mA (NPN and PNP)

• I/O configuration options: control output × 2 / control output + external input / control output + analog output / external input + analog output

Power Supply & Environment

• Supply voltage: 20 to 30 V DC, including 10 % ripple (P‑P), Class 2 or LPS

• Current consumption: 50 mA or less (without load), 150 mA or less (with load)

• Enclosure rating: IP65 / IP67 (IEC60529)

• Ambient light resistance: incandescent lamp / sunlight ≤ 100,000 lux

• Ambient temperature: –20 °C to +55 °C (no freezing)

• Relative humidity: 35 to 85 % RH (no condensation)

Mechanical & Materials

• Case: Zinc die cast (nickel‑chrome plating)

• Indicator cover and buttons: PES

• Lens cover and display: PMMA (scratch‑resistant coating)

• Cable bushing: PBT, Cable: PVC

• M12 connector: TPE, PBT, nickel‑plated brass

• Mounting hole tightening torque: 1.5 N·m (M4 screw)

• Dimensions (W × H × D): 36 mm × 13 mm × 26 mm

• Weight: approx. 160 g

• Included items: main unit, instruction manual, laser warning and explanation labels

System Integration:

• This sensor belongs to the Keyence LR‑T series of self‑contained TOF laser sensors.

• M12 4‑pin male connector mates with standard industrial M12 female cables.

• IO‑Link V1.1/COM2 (38.4 kbps) is supported for parameter setting and diagnostics. Setup file can be downloaded from the KEYENCE website.

• I/O configurations can be selected during initial settings; independently isolate unused I/O wires.

• For detailed wiring diagrams, time charts, and setting methods, refer to the instruction manual.

• Optical installation guidance: for mirrored target surfaces, install the sensor at an angle to prevent specular reflection from entering the optical receiver.

Standards & Compliance:
IEC60825‑1, FDA (CDRH) Part1040.10, IP65/IP67 (IEC60529). Refer to manufacturer official documentation for detailed certification and compliance information (UL/cUL pending confirmation; check product label for specific approvals).
