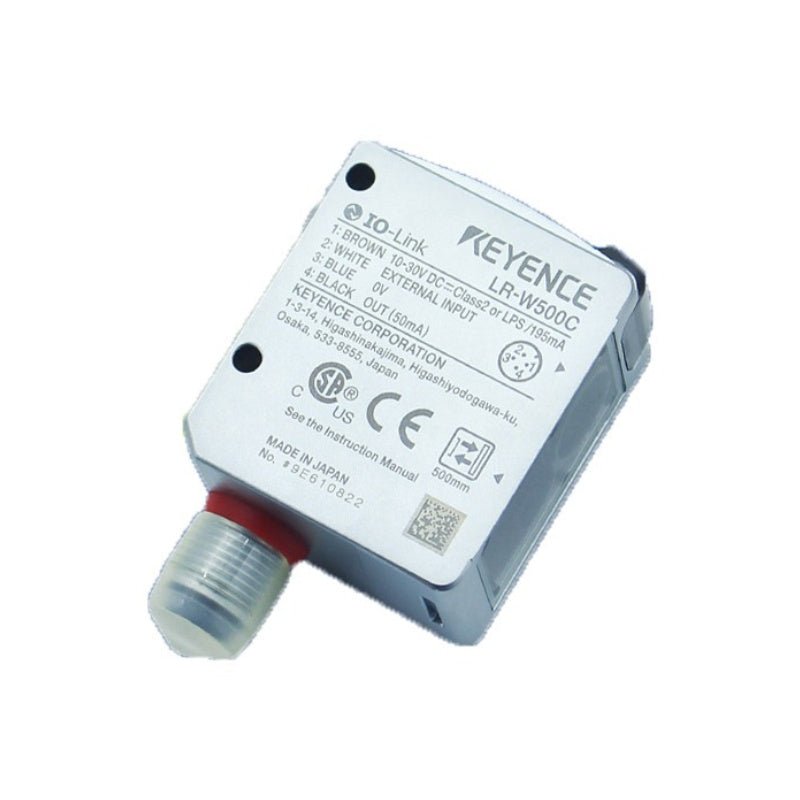

Keyence LR-W500C LR-W Series Self-Contained Full-Spectrum Photoelectric Sensor M12 Connector 500mm

Keyence LR-W500C is a self-contained full-spectrum photoelectric sensor with a 30 to 500 mm detection range. White LED light source with adjustable beam spot. M12 4-pin connector type. NPN/PNP output selectable. IP65/IP67 rated zinc die-cast metal housing. IO-Link V1.1/COM2 (38.4 kbps) compatible. Designed for detection of colour, surface finish, and appearance variations in demanding industrial environments.

Applications:

• Product differentiation based on colour and surface finish

• Registration mark detection on film, labels, and curved surfaces

• Part presence detection in moulds, dies, and assembly stations

• Rounded or irregular target detection on moving conveyors

• Product treatment/coating verification in quality control

Core Specifications:

• Detection range: 30 to 500 mm (adjustable)

• Spot diameter (adjustable): approx. ø3.5 mm at 100 mm, approx. ø9 mm at 250 mm, approx. ø18 mm at 500 mm

• Light source: White LED

• Response time: 200 µs, 1 ms, 10 ms, 100 ms, 500 ms selectable

• Timer functions: OFF / ON-delay / OFF-delay / One-shot

• Control output: NPN open collector / PNP open collector selectable, 30 V DC or less, 50 mA or less, residual voltage 2 V or less, N.O./N.C. selectable

• External input: Tuning / Transmission OFF selectable (short‑circuit current: ≤ 1 mA for NPN, ≤ 2 mA for PNP)

• Power supply voltage: 10 to 30 V DC, including 10 % ripple (P‑P), Class 2 or LPS

• Current consumption: 65 mA or less (without load) at 24 V DC; 120 mA or less (without load) at 12 V DC

• Mutual interference reduction: up to 2 units when alternate frequencies set

• Protection circuits: reverse power connection, power supply surge, output overcurrent, output surge, reverse output connection

Advanced Specifications:

• Enclosure rating: IP65 / IP67 (IEC60529)

• Ambient light resistance: incandescent lamp ≤ 10,000 lux, sunlight ≤ 20,000 lux

• Ambient operating temperature: –20 to +50 °C (no freezing)

• Relative humidity: 35 to 85 % RH (no condensation)

• Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each X,Y,Z axis

• Shock resistance: 1,000 m/s², 6 times in each X,Y,Z axis

• Materials: Case: zinc die cast (nickel‑chrome plating); Indicator cover: PPSU; Buttons: PES; Lens cover and display: PMMA (scratch‑resistant coating); Connector ring: PMP; Connector socket: PEI

• Connection type: M12 4‑pin connector

• Weight: approx. 110 g

System Integration:

• This sensor belongs to the Keyence LR‑W series of self‑contained full‑spectrum photoelectric sensors.

• Selectable NPN or PNP output in the same unit simplifies standardization across different machine types.

• M12 4‑pin connector mates with standard industrial M12 female cables; quick disconnect option simplifies installation and replacement.

• IO‑Link V1.1/COM2 (38.4 kbps) support enables parameter setting and diagnostics. Setup file can be downloaded from the KEYENCE website.

• One‑touch calibration and auto‑tuning function accounts for target colour, brightness and surface finish to determine optimal detection method.

• The LR‑W series features a standard mounting pitch of 25.4 mm for compatibility with existing brackets.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• LR‑W500 – 2 m cable type version, same detection range and specifications

• LR‑W70 – 70 mm short‑range version for applications requiring smaller detection distance

• OP‑87268 – M8 straight cable (2 m, IP68, 4‑pin)

• OP‑87269 – M8 straight cable (5 m, IP68, 4‑pin)
