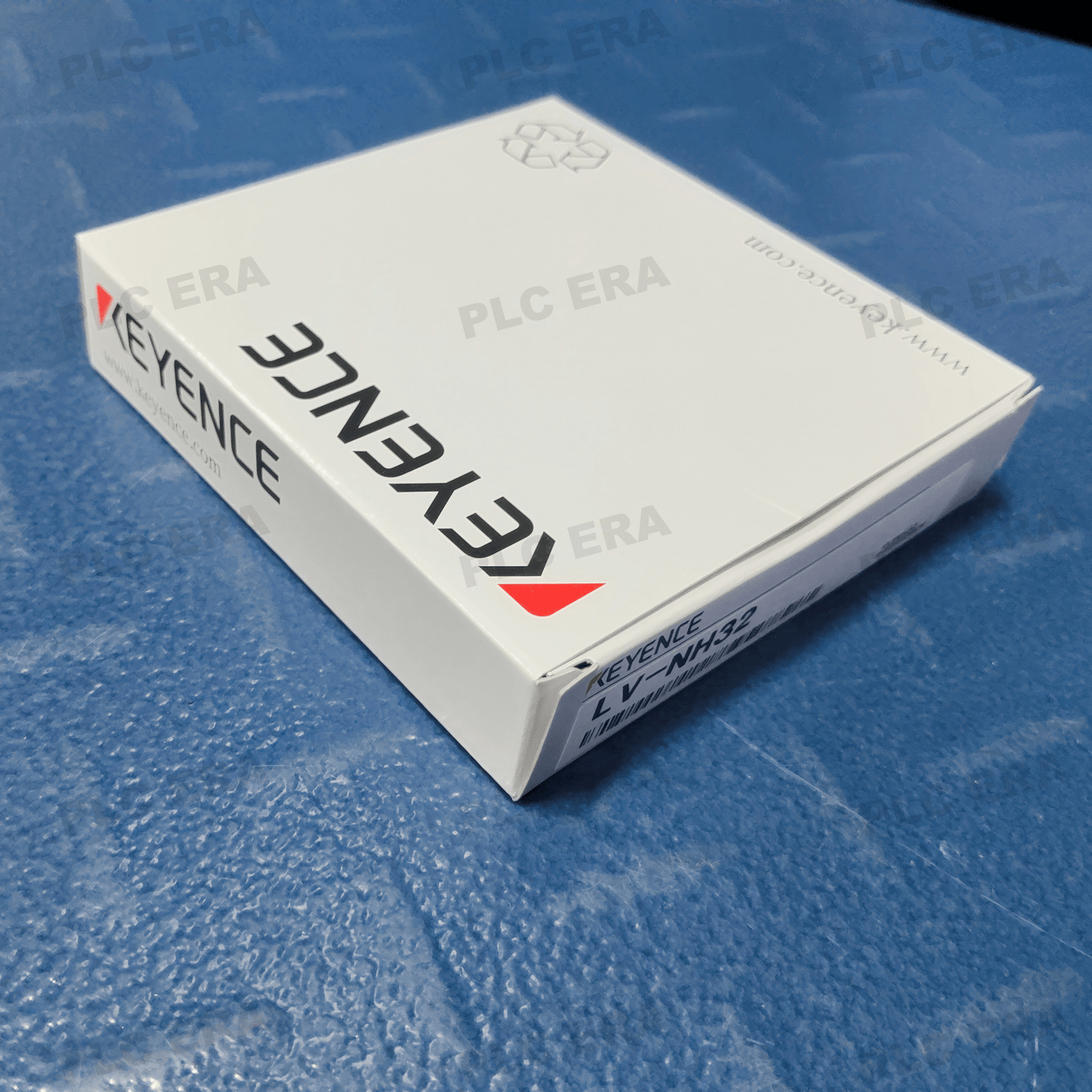

KEYENCE LV-NH32 Adjustable Beam Spot Reflective Laser Sensor Head

The KEYENCE LV-NH32 is a spot reflective laser sensor head designed for the LV-N series of digital laser sensors. Its ability to adjust the beam spot diameter enables flexible detection of both minute targets and larger objects across a wide range of distances. Class 1 visible red laser, 660 nm wavelength. Glass‑reinforced plastic housing, IP67 rating, –10 °C to +55 °C.

Applications:

• Semiconductor and electronic component detection (small parts, fragile wafers)

• Automotive parts manufacturing and assembly verification

• Packaging machinery for label registration and web control

• General parts presence and positioning in industrial automation

Technical Specifications:

Core Specifications

• Light source: Visible red semiconductor laser, wavelength 660 nm

• Laser classification: Class 1 (IEC60825‑1, FDA (CDRH) Part 1040.10)

• Detecting distance (modes): MEGA → 1200 mm, ULTRA → 1000 mm, SUPER → 750 mm, TURBO → 500 mm, FINE → 250 mm, HSP → 200 mm

• Beam spot size: adjustable via focus ring

• Housing material: Glass‑reinforced plastic, lens cover acrylic/polyarylate

• Weight: approx. 65 g

Environmental Specifications

• Ambient temperature: –10 °C … +55 °C (no freezing)

• Relative humidity: 35 % … 85 % RH (no condensation)

• IP rating: IP67 (connection conditions apply)

• Enclosure rating: IP67 (connection conditions apply)

Advanced Specifications

• Spot diameter adjustment: turn focus ring, tighten lock screw after adjustment

• Tightening torque: LV‑NH32 mount ≤ 0.3 N·m

• Vibration resistance: 10 – 55 Hz, double amplitude 1.5 mm, 2 hours in X, Y, Z axes

• Shock resistance: 500 m/s², 3 times in X, Y, Z axes

• Ambient light immunity: incandescent lamp ≤ 10,000 lx, sunlight ≤ 20,000 lx

• Material: Case glass‑reinforced plastic, lens cover acrylic (transmitter) / polyarylate (receiver)

• Cable: PVC (standard)

Compatibility information:

• This sensor head belongs to the KEYENCE LV‑N series and must be used with an LV‑N series amplifier unit (main unit).

• Compatible amplifiers: LV‑N11N (NPN, cable), LV‑N11P (PNP, cable), LV‑N11CN (NPN, M8 connector), LV‑N11CP (PNP, M8 connector) and other LV‑N main units.

• System configuration supports up to 17 total units (main + expansion). Two‑output expansion units count as two units.

• For detailed installation, wiring and amplifier configuration, refer to the LV‑N10 Series User's Manual and the respective amplifier documentation.

Installation & Mounting:

• Sensor head mounts via included bracket (tightening torque ≤ 0.3 N·m)

• Dedicated amplifier mounting bracket (OP‑73880) available for wall installation

• End units (OP‑26751, set of two) secure amplifiers on DIN rail

• Sensor head cable can be shortened following the supplied connector assembly instructions

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (FDA/CDRH, IEC60825‑1, IP67).

Related Products:

• LV‑N11N – Main amplifier unit, cable, NPN output

• LV‑N11P – Main amplifier unit, cable, PNP output

• LV‑N11CN – Main amplifier unit, M8 connector, NPN output

• LV‑N11CP – Main amplifier unit, M8 connector, PNP output

• LV‑N12N – Expansion amplifier unit, NPN output

• LV‑N12P – Expansion amplifier unit, PNP output

• OP‑73880 – Amplifier mounting bracket for wall installation

• OP‑26751 – End unit set (2 pieces, for DIN rail fixation)

• LV‑B101 – Vertical mounting bracket set (for LV‑NH100/NH110)

• LV‑B102 – Horizontal mounting bracket set (for LV‑NH100/NH110)

• LV‑B301 – Vertical mounting bracket set (for LV‑NH300)

• LV‑B302 – Horizontal mounting bracket set (for LV‑NH300)
