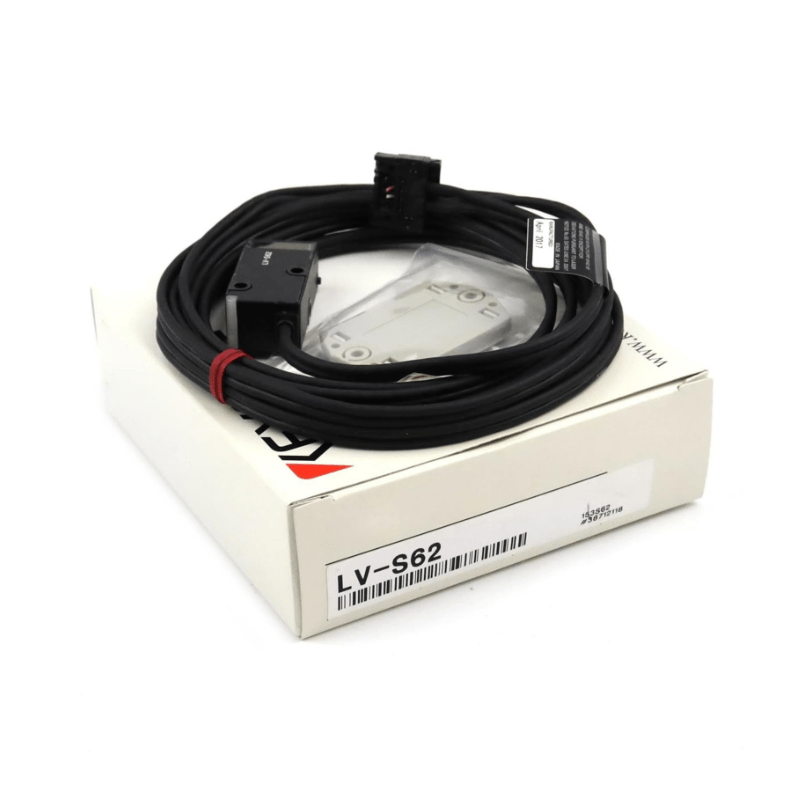

KEYENCE LV-S62 Parallel Light Area Retro‑reflective Laser Sensor Head
KEYENCE LV-S62 Parallel Light Area Retro‑reflective Laser Sensor Head
61 in stock
Couldn't load pickup availability
KEYENCE LV‑S62 is a parallel light area retro‑reflective sensor head for the LV‑N series digital laser sensor system. It emits a broad, sheet‑like parallel light beam instead of a pinpoint spot, delivering stable detection of transparent objects (glass, bottles, films), parts with small gaps or steps, and workpieces prone to beam misalignment due to vibration or temperature drift.
A high‑frequency superposition laser drive circuit suppresses intensity variations caused by microscopic tilts of transparent targets (e.g., submicron changes in glass thickness). This provides consistent received light levels across a wide wavelength range, eliminating detection fluctuations due to workpiece transparency variations. Class 1 laser product (FDA/IEC) rated for eye safety during normal operation.
Applications:
-
Transparent object detection (glass substrates, plastic bottles, clear films, vials)
-
Detection of small gaps, steps, or holes on parts surfaces
-
Parts presence and position verification on conveyors and assembly lines
-
Material handling, pharmaceutical, and food & beverage packaging systems
-
Electronics and semiconductor manufacturing (wafer, PCB positioning)
-
Long‑distance object detection requiring wide beam coverage
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | LV-S62 |
| Type | Parallel light area, retro‑reflective |
| Light source | Visible red semiconductor laser, wavelength 660 nm |
| Laser class | Class 1 (FDA (CDRH) Part 1040.10, IEC 60825‑1) |
| Detecting distance |
MEGA: 12 m (6 m) ULTRA: 10 m (5 m) SUPER: 8 m (3.5 m) TURBO: 5 m (2 m) FINE: 2.5 m (0.7 m) HSP: ― |
| Beam shape | Parallel light area (sheet‑like) |
| Compatible amplifier suffix | Must end with B or BP (e.g., LV‑11SB, LV‑12SBP) |
| Ambient temperature | –10 to +50 °C (no freezing) |
| Housing material | Glass‑reinforced plastic |
| Lens cover material | Acrylic |
| Reflector | Polycarbonate, acrylic (R‑6L included) |
| Weight | Approx. 65 g |
Numbers in parentheses are detection distances for small beam spot.
Mounting & Installation:
| Bracket Type | Model | Material | Notes |
|---|---|---|---|
| L‑shaped mounting bracket | OP‑84350 | SUS304, SUS (screw) | Screw (SUS) attached. Sold separately. |
| Rear mounting bracket | OP‑84349 | SUS304, SUS (screw/nut) | Screw (SUS) and nut (SUS) attached. Sold separately. |
| Side (horizontal) mounting bracket | OP‑84351 | SUS304, SUS (screw) | Screw (SUS) and nut (SUS) attached. Sold separately. |
-
The sensor head mounts using the above dedicated brackets. All optional brackets allow transverse and vertical optical axis adjustment, simplifying alignment.
Compatibility & System Integration:
-
This sensor head belongs to the KEYENCE LV‑N series digital laser sensor system.
-
Must be used with LV‑N series amplifiers whose model number ends with B or BP (e.g., LV‑11SB, LV‑12SB, LV‑11SBP, LV‑12SBP).
-
In multi‑amplifier configurations, units must be installed on a metal DIN rail; total system current should not exceed 20 mA.
-
Up to 16 amplifier expansion units can be connected to a main unit; ambient temperature limits depend on the number of connected units.
Included Accessories (with sensor head):
Optional Accessories (order separately):
-
OP‑84350 – L‑shaped mounting bracket (SUS304, screw included)
-
OP‑84349 – Rear mounting bracket (SUS304, screw and nut included)
-
OP‑84351 – Side/horizontal mounting bracket (SUS304, screw and nut included)
-
OP‑87904 – Sensor head cable, 5 m (for IV series vision sensors)
-
OP‑87230 / OP‑87231 / OP‑87232 – Ethernet cables (NFPA79 compatible) for code readers
Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
