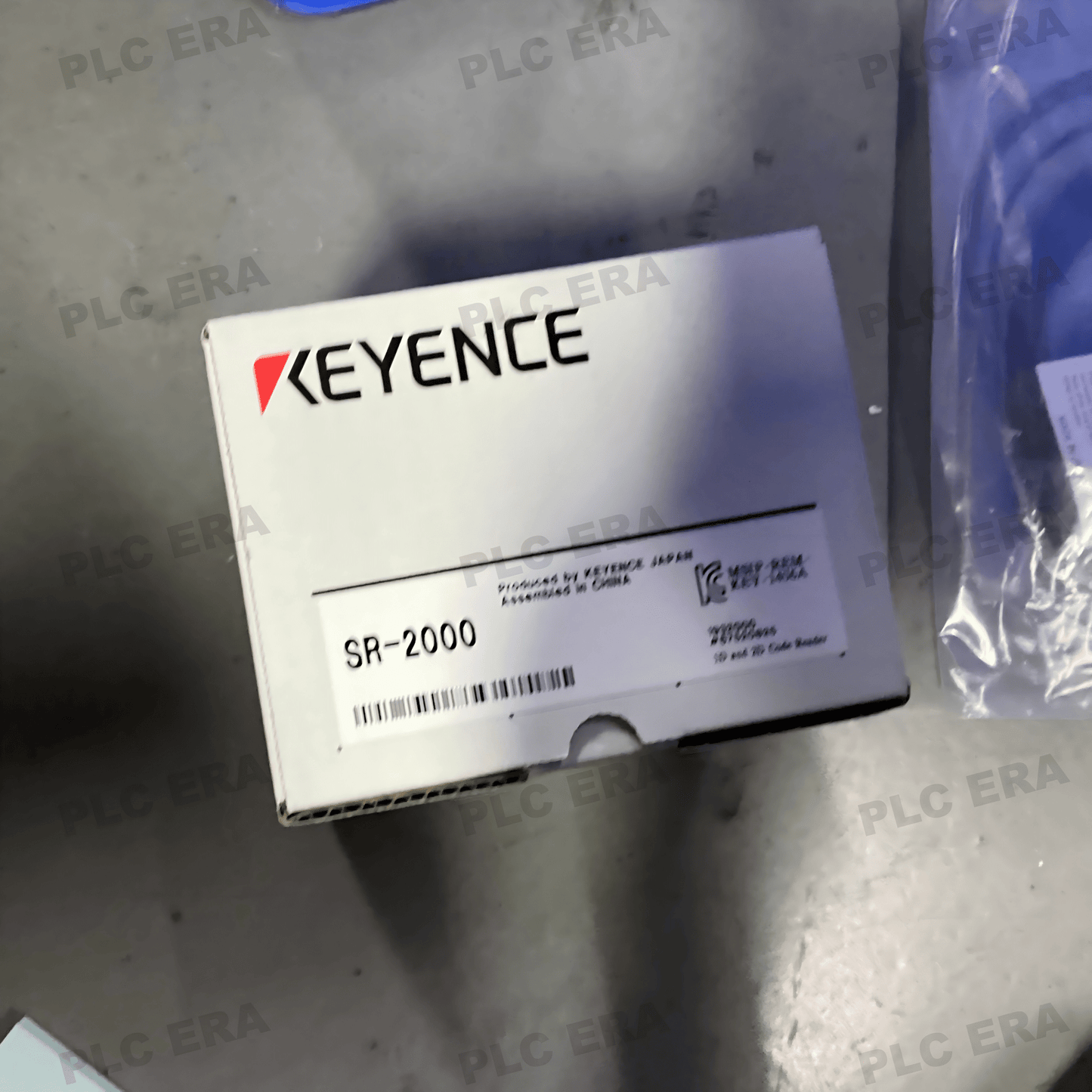

KEYENCE SR-2000 Autofocus 1D/2D Code Reader IP65 EtherNet/IP PROFINET
KEYENCE SR-2000 Autofocus 1D/2D Code Reader IP65 EtherNet/IP PROFINET
Low stock: 9 left
Couldn't load pickup availability
KEYENCE SR-2000 is an autofocus 1D/2D code reader designed for high‑speed, long‑range reading in industrial automation, logistics, and manufacturing applications. Autofocus automatically adjusts focus position during installation and tuning without manual intervention. High‑sensitivity 3.1‑megapixel CMOS image sensor (2048 × 1536 pixels) captures clear images even with dark, low‑contrast codes. Built‑in high‑intensity red LED illumination and green LED pointer. 3‑output photo MOS relay outputs. EtherNet/IP™ and PROFINET industrial Ethernet protocols supported. IP65 enclosure, 24 V DC, 0 … +45 °C operating temperature. Designed for trouble‑free, “install‑and‑go” performance in applications ranging from automotive part traceability to semiconductor FOUP ID reading and high‑speed conveyor scanning.
Applications:
-
Logistics and material handling conveyor code reading
-
Automotive part traceability and assembly verification
-
Semiconductor FOUP ID reading and yield tracking
-
Pharmaceutical and food packaging code inspection
-
Electronic PCB identification and quality control
-
High‑speed production lines requiring moving object code reading
Core Specifications:
| Parameter | Specification |
|---|---|
| General | |
| Type | Full‑range model |
| Receiver sensor | CMOS image sensor |
| Number of pixels | 2048 × 1536 pixels (approx. 3.1 megapixels) |
| Focus | Automatic (adjustable during installation and tuning) |
| Light emitter | High‑intensity red LED |
| Pointer light source | High‑intensity green LED |
| Reading Specifications | |
| Supported 2D codes | QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417, MicroPDF417, GS1 Composite (CC‑A/CC‑B/CC‑C), DotCode |
| Supported barcodes | CODE39, ITF, 2of5 (Industrial 2of5), COOP 2of5, NW‑7 (Codabar), CODE128, GS1‑128, GS1 DataBar, CODE93, JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode, Postal (Japan Postal, IMB) |
| Minimum resolution (2D code) | 0.040 mm |
| Minimum resolution (barcode) | 0.082 mm |
| Reading distance | 100 mm to 2000 mm |
| Field of view for reading (at 800 mm) | 263 mm × 197 mm |
| I/O Specifications | |
| Control inputs | 2 points (bidirectional voltage input) |
| Input max. rating | 26.4 V DC |
| Input min. ON voltage | 15 V DC |
| Input max. OFF current | 0.2 mA |
| Control outputs | 3 points (photo MOS relay output) |
| Output max. rating | 30 V DC |
| Output max. load current | Single output: 50 mA or less, total 3 outputs: 100 mA or less |
| Output OFF leakage current | 0.1 mA or less |
| Output ON residual voltage | 1 V or less |
| Communications | |
| Ethernet standard | IEEE 802.3 compliant, 10BASE‑T/100BASE‑TX |
| Ethernet protocols | TCP/IP, SNTP, FTP, BOOTP, EtherNet/IP™, PROFINET, KV STUDIO, MC Protocol, OMRON PLC Link |
| Serial standard | RS‑232C compliant |
| Serial speeds | 9600, 19200, 38400, 57600, 115200 bps |
| Serial protocols | No‑protocol, KV STUDIO, MC Protocol, SYSWAY |
| USB standard | USB 2.0 Full Speed |
| Electrical & Environmental | |
| Power voltage | 24 V DC ±10 % |
| Current consumption | Approx. 1600 mA |
| Enclosure rating | IP65 |
| Ambient light | Sunlight: 10,000 lux, Incandescent lamp: 6,000 lux, Fluorescent lamp: 2,000 lux |
| Ambient temperature | 0 °C … +45 °C |
| Relative humidity | 35 % … 85 % RH (non‑condensing) |
| Storage temperature | –10 °C … +50 °C |
| Storage relative humidity | 35 % … 85 % RH (non‑condensing) |
| Operating environment | No dust or corrosive gas |
| Vibration resistance | 10 … 55 Hz, double amplitude 0.75 mm, 3 hours each in X, Y and Z directions |
| Weight | Approx. 300 g |
System Integration:
-
This code reader belongs to the KEYENCE SR‑2000 series.
-
Autofocus adjusts focal position automatically, eliminating manual focus configuration during setup.
-
High‑sensitivity CMOS sensor and built‑in high‑intensity red LED illumination ensure stable reading without external lighting in most applications.
-
Ethernet port supports EtherNet/IP™ and PROFINET industrial protocols for direct PLC connectivity.
-
RS‑232C port provides legacy serial communication. USB port enables direct PC connection for configuration using KEYENCE software.
-
Master/slave function supports multiple reader configurations for multi‑sided code reading applications.
Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, UL, RoHS).
Related Products:
-
SR‑2000W – Super wide‑view type with 50 … 1000 mm reading distance, 707 × 530 mm field of view at 800 mm
-
SR‑20AH – High‑resolution attachment (minimum 2D code resolution 0.012 mm, reading distance 35 … 70 mm)
-
OP‑87230 – Ethernet cable (NFPA79 compatible), 2 m
-
OP‑87231 – Ethernet cable (NFPA79 compatible), 5 m
-
OP‑87232 – Ethernet cable (NFPA79 compatible), 10 m
-
SR‑20AL – Illumination accessory for SR‑2000 series
-
AutoID Network Navigator – Configuration software for KEYENCE code readers
