Mitsubishi FR-CB201 Parameter Unit Connection Cable 1m

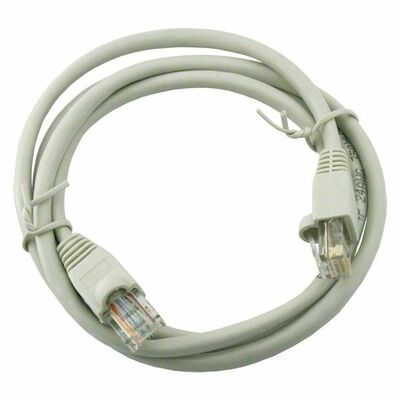

Mitsubishi Electric FR-CB201 is a dedicated cable for connecting a parameter unit (FR-PU04/FR-PU07) or operation panel to a FREQROL series inverter. Its length is 1 metre. It is used for remote operation, parameter setting, and monitoring of inverters without direct panel access.

Applications:

• Remote connection of parameter unit (FR-PU04, FR-PU07) to inverter

• Remote operation panel connection

• Parameter setting and monitoring from control cabinet exterior

• Maintenance and commissioning of inverters mounted in elevated or enclosed positions

• Connecting multiple inverters for parameter copying

Technical Specifications:

• Cable length: 1 m (1,000 mm)

• Cable type: Parameter unit connection cable (dedicated)

• Compatible parameter units: FR-PU04, FR-PU07

• Compatible inverter series: FR-A500, FR-E500, FR-F500, FR-S500, FR-A700, FR-D700, FR-E700, FR-F700, FR-A800, FR-F800, FR-E800, FR-F820, FR-A740, FR-F740P, FR-E720, FR-D720S, FR-E520, FR-S520, FR-V500, FR-V520, FR-FP700, FR-FP700J, FR-500 series

• Maximum permissible cable length: 5 m (FR-CB205)

• Connection type: Modular connector (inverter side) / Parameter unit connector

• Weight: approx. 0.11 kg – 0.3 kg (depending on source)

• Operating temperature: –10 °C … +50 °C

System Integration:

• This connection cable belongs to the Mitsubishi Electric FREQROL accessory family.

• For panel mounting, use FR‑ADP operation panel connection adaptor or FR‑E5P rear cover and adaptor set (order separately).

• When using parameter unit FR‑PU07BB (battery‑powered), parameter setting can be performed without connecting inverter power supply.

• Communication via RS‑485 is possible when the cable and parameter unit are used together.

Compatibility information:

• Designed for connecting FR-PU04 or FR-PU07 parameter units to FREQROL series inverters.

• When connecting to FR‑A700 / FR‑F700 / FR‑E700 / FR‑D700 / FR‑S500 series, the FR‑CB201 is the recommended cable (1 m length).

• Also suitable for connection between multiple inverters for parameter copying applications.

Product Status:
Active product.

Related Products:

• FR-CB203 – Parameter unit connection cable, 3 m length

• FR-CB205 – Parameter unit connection cable, 5 m length (maximum)

• FR-PU04 – Parameter unit with 10‑key keypad (compatible with A500/E500/F500 series)

• FR-PU07 – Parameter unit with LCD display

• FR-PU07BB – Battery‑powered parameter unit (for parameter setting without inverter power)

• FR-ADP – Operation panel connection adaptor (for panel surface mounting)

• FR-E5P – Operation panel rear cover and connector set (for FR-E500 series inverters)
