FR-PA07 Enclosure Surface Operation Panel for FREQROL Inverters | Mitsubishi

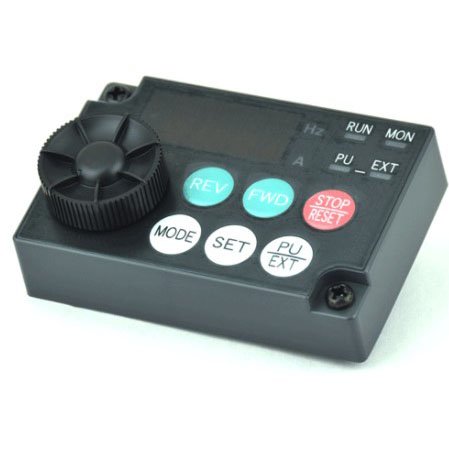

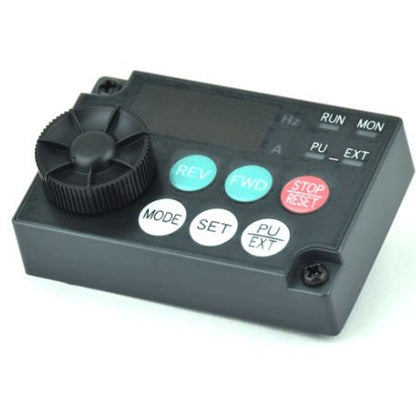

The Original New Mitsubishi Electric FR-PA07 is an enclosure surface operation panel designed for remote control and monitoring of FREQROL series inverters. Mounted directly on the control cabinet door, it enables operators to start and stop the inverter, adjust frequency settings, change parameters, and monitor operating status from outside the enclosure. Using the dedicated FR-CB20 connection cable, it connects to the inverter's PU connector. The panel features a setting dial for frequency and parameter adjustment, a MODE key for function switching, and a SET key for confirming settings. LED indicators show operation mode status (PU, EXT, NET). Compatible with FR-E800 (standard model), FR-E700, FR-D700, FR-F700PJ, FR-E700EX, and FR-D700-G series inverters.

Core Engineering Highlights:
Enclosure surface mounting for remote operation | Setting dial for frequency and parameter adjustment | MODE and SET keys for configuration | PU/EXT/NET operation mode LEDs | IP20 protection | Dimensions: 68 × 45 × 24 mm | Weight: 0.2 kg | Connects via FR-CB20 cable (sold separately) | Operating temperature: -10°C to +50°C

Key Features:

• Original New Mitsubishi Electric FR-PA07 operation panel

• Enables inverter operation and frequency monitoring from the enclosure surface

• Setting dial (rotary dial) for changing frequency and parameter values

• MODE key for switching between operation modes and parameter groups

• SET key for confirming settings and parameter changes

• LED indicators for operation mode: PU, EXT, NET

• Compact dimensions (68 × 45 × 24 mm) for panel surface mounting

• Lightweight design (0.2 kg) for easy installation

• Connects to the inverter's PU connector via FR-CB20 cable (sold separately)

• Cannot be removed from the inverter during operation

• RoHS compliant

Applications:

• Remote control of inverters mounted inside control cabinets

• Frequency setting and monitoring from enclosure surface

• Parameter adjustment without opening the control cabinet

• Industrial automation and machine control systems

• OEM equipment requiring convenient operator access

• HVAC, pump, and fan control applications

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric FREQROL inverter series: FR-E800 (standard model only), FR-E700, FR-D700, FR-F700PJ, FR-E700EX, FR-D700-G

• Connects to the inverter's PU connector using the FR-CB20 connection cable (sold separately)

• For FR-E700 series, the FR-PA02 panel (used with FR-E500 series) can also be used

• The operation panel cannot be removed from the inverter; it is designed for fixed installation

• Refer to the inverter instruction manual for detailed operation panel functions and operation methods

Related Products:

• FR-CB201 – Parameter unit connection cable, 1 m

• FR-CB203 – Parameter unit connection cable, 3 m

• FR-CB205 – Parameter unit connection cable, 5 m

• FR-PU07 – Interactive parameter unit with LCD display (advanced alternative)

• FR-PU04 – Parameter unit for FR-A500/E500/F500/S500 series

• FR-LU08 – LCD operation panel for FR-A800/F800 series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi, FREQROL, and MELSEC are trademarks of Mitsubishi Electric Corporation.
