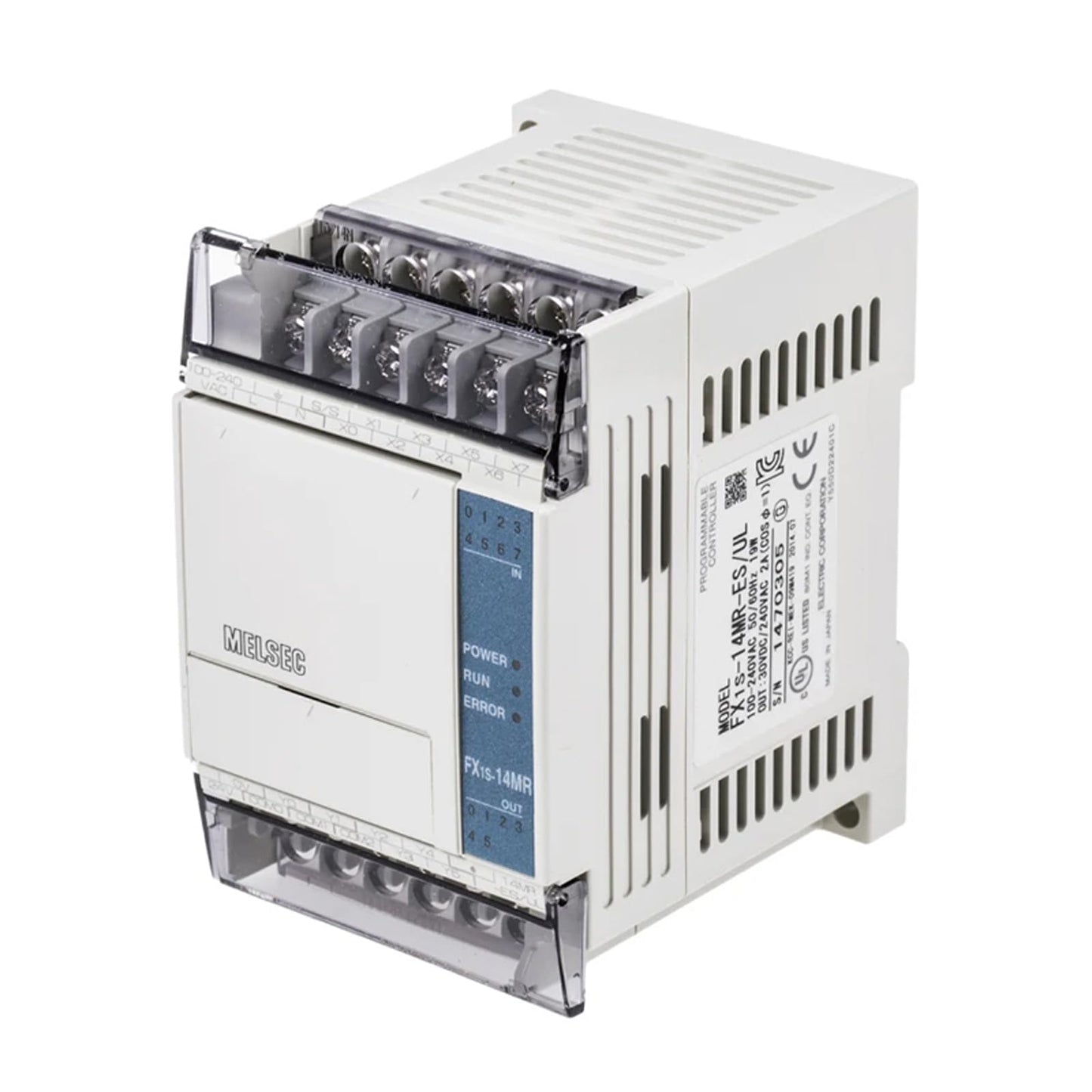

• Mitsubishi FX1S-14MR-ES/UL MELSEC-F series programmable logic controller front view
1 1

MITSUBISHI

Mitsubishi FX1S-14MR-ES/UL MELSEC-F PLC 8 Inputs 6 Relay Outputs 2K Steps AC Power

Mitsubishi FX1S-14MR-ES/UL MELSEC-F PLC 8 Inputs 6 Relay Outputs 2K Steps AC Power

99 in stock

$82.00 USD
$82.00 USD
Sale Sold out
Shipping calculated at checkout.

Mitsubishi Electric MELSEC-F FX1S‑14MR‑ES/UL is a compact programmable logic controller (PLC) basic unit with integrated power supply, CPU and I/O. Provides 8 digital inputs (24 V DC, sink/source configurable) and 6 relay outputs (2 A per point, 250 V AC / 30 V DC). Program memory 2,000 steps (EEPROM) with 0.55‑0.7 μs LD instruction execution time. Built‑in high‑speed counter function, real‑time clock, hour‑meter function, and 24 V DC/400 mA sensor power supply. 100‑240 V AC power supply, screw terminal block, DIN rail mounting. This product has been discontinued by the manufacturer and is available as a spare part for maintaining existing FX1S‑based automation systems.

Applications:

  • Small machine automation and control panels

  • Conveyor systems and material handling equipment

  • Packaging machinery and assembly line control

  • OEM equipment requiring small‑footprint PLC with relay outputs

  • Legacy system replacement and spare part stocking for FX1S configurations

Core Specifications:



Parameter Specification
Program memory 2,000 steps (EEPROM, no battery required)
LD instruction execution time 0.55‑0.7 μs
Total I/O points 14 (8 inputs, 6 outputs)
Input points 8 (24 V DC, sink/source, 7 mA/24 V DC)
Output points 6 (relay, normally open)
Output current 2 A per point, 8 A per common
Max. inductive load 80 VA (AC)
Min. load 5 V DC, 2 mA
Output response time approx. 10 ms
Built‑in high‑speed counter Yes

Advanced Specifications:



Parameter Specification
Supply voltage 100‑240 V AC (‑15% / +10%), 50/60 Hz
Permissible input voltage range 85‑264 V AC
Power consumption 19 W (max.)
Inrush current max. 15 A at 100 V AC, max. 25 A at 200 V AC
Sensor power supply 24 V DC, 400 mA
Isolation Photocoupler (inputs), relay (outputs)
Real‑time clock Built‑in
Protection rating IP10 (IEC 60529)
Mounting DIN rail or panel mount
Dimensions (W × H × D) 60 mm × 90 mm × 49 mm
Weight 0.3 kg
Operating temperature 0 °C … 55 °C
Storage temperature –20 °C … 70 °C
Certifications CE, UL

System Integration:

  • This CPU unit belongs to the Mitsubishi Electric MELSEC‑F FX1S series.

  • Mounts on 35 mm DIN rail or panel mount.

  • FX1S series cannot be expanded with extension modules, but a BD board can be installed to extend a small number of I/O points and achieve RS‑232C, RS‑485, or RS‑422 communication.

  • Built‑in RS‑422 programming port supports connection to GX Works2 or GX Developer software (version 8.72A or higher).

  • Transistor output (MT) models provide 2‑axis independent 100 kHz pulse output for servo/stepper motor positioning.

  • For detailed installation, wiring and programming, refer to the MELSEC‑FX1S Hardware Manual.

Product Status:
Discontinued as of December 1, 2015. Available as a spare part for maintaining existing FX1S‑based systems while stocks permit. Recommended replacement: FX3S‑14MR/ES (MELSEC‑F FX3S series). Mitsubishi Electric accepts product repairs for seven years after production discontinuation.
For new installations, use the recommended successor.
