FX2N-4DA 4-Channel Analog Output Module 12-bit 4-20mA | Mitsubishi

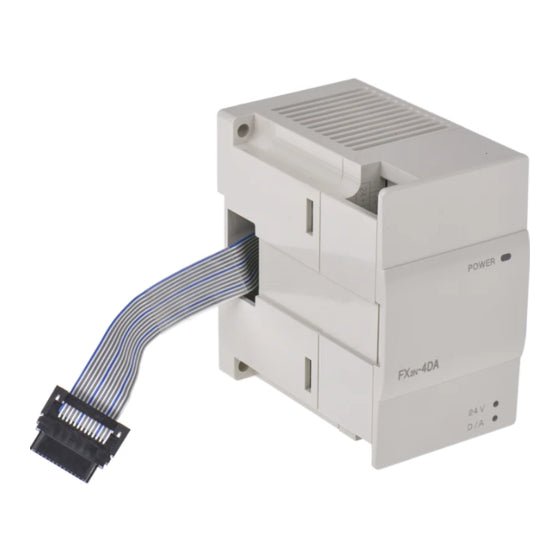

The Original New Mitsubishi FX2N-4DA is a 4-channel analog output special function block for MELSEC-F FX series PLC systems (FX0N, FX1N, FX2N, FX2NC, FX3U, FX3UC). It converts digital values from the PLC into precise analog signals for industrial control applications. Each of the 4 output channels can be independently configured for voltage (-10 to +10V DC, 0-10V DC, 0-5V DC) or current (4-20mA DC, 0-20mA DC) via wiring selection. All four channels update simultaneously with a conversion speed of 2.1ms. The module features a 12-bit resolution (5mV for voltage, 20µA for current) and is programmed via buffer memory (BFM) using FROM/TO instructions. The module draws 30mA from the 5V rail of the FX2N main unit or powered extension unit. This product is discontinued and available as a spare part for maintaining existing FX2N-based systems.

⚠️ Important Product Status Note:

This product has been discontinued by Mitsubishi Electric as of December 2015. The recommended replacement is the FX3U-4DA (for FX3U/FX3G series PLCs) or FX5-4DA-ADP (for MELSEC iQ-F series). This product remains available as a spare part for maintaining existing FX2N-based systems while supplies last. For new installations, please consider the recommended replacement models.

Core Engineering Highlights:
4 analog output channels (voltage/current selectable per channel) | 12-bit resolution (5mV voltage / 20µA current) | Output ranges: -10 to +10V, 0-10V, 0-5V, 0-20mA, 4-20mA | 2.1ms conversion speed for all 4 channels | Occupies 8 I/O points (counted as inputs or outputs) | 30mA @ 5V DC + 200mA @ 24V DC power consumption | Buffer memory (BFM) data exchange via FROM/TO instructions | Photocoupler isolation between analog output and PLC; DC/DC converter isolation for power supply

Key Features:

• Original New Mitsubishi FX2N-4DA module

• 4 analog output channels, individually configurable for voltage or current per channel

• Voltage output: -10 to +10V DC (resolution 5mV), 0-10V DC, 0-5V DC

• Current output: 0-20mA DC, 4-20mA DC (resolution 20µA or 4µA)

• 12-bit high-precision resolution for accurate analog control

• 2.1ms conversion time for all 4 channels (number of selected channels does not affect speed)

• Output range selection via wiring for each channel

• Occupies 8 I/O points from the PLC allocation

• 32 buffer memory (BFM) locations for mode settings, output data storage, offset/gain adjustment

• Offset and gain adjustment per channel for calibration

• Photocoupler isolation between analog output area and PLC; DC/DC converter isolation for power supply

• Screw terminal block for secure and reliable field wiring

• DIN rail mounting for space-efficient installation

• Compatible with FX0N, FX1N, FX2N, FX2NC, FX3U, FX3UC series PLCs

Applications:

• Speed reference control for variable frequency drives (VFDs) and servo systems

• Positioning of proportional valves and electric actuators

• Process control analog signal generation (4-20mA current loops)

• Legacy system spare part replacement for FX2N PLC configurations

• OEM equipment requiring multi-channel analog output

Technical Specifications:

Buffer Memory (BFM) Allocation:

• BFM #0: Output mode selection (voltage/current per channel)

• BFM #1 to #4: Digital value output data for channels 1 to 4

• BFM #5: Output data in STOP mode setting

• BFM #10 to #13: Offset data per channel

• BFM #14 to #17: Gain data per channel

• Refer to the FX2N-4DA User's Manual (JY992D65901a) for complete BFM details

Output Modes (BFM #0):

• 0: -10 to +10V → digital value -2000 to +2000

• 1: 4 to 20mA → digital value 0 to +1000

• 2: 0 to 20mA → digital value 0 to +1000

Compatibility:

• Compatible PLC series: FX0N, FX1N, FX2N, FX2NC, FX3U, FX3UC

• Connects directly to the right side of the main unit or extension units

• For connection to FX3UC or FX3GC, FX2NC-CNV-IF or FX3UC-1PS-5V adapter is required

• Up to 8 special function modules can be connected (depends on PLC main unit type)

Recommended Replacement:

• FX3U-4DA: 4-channel analog output block for FX3U series. Provides 16-bit resolution for voltage and 15-bit for current, offering significantly higher resolution than FX2N-4DA. Compatible with FX3G, FX3GE, FX3GC, FX3U, FX3UC series PLCs. Note that buffer memory addresses and output mode settings differ from FX2N-4DA; program migration is required.

• FX5-4DA-ADP: 4-channel analog output adapter for MELSEC iQ-F (FX5U, FX5UC) series for new system designs.

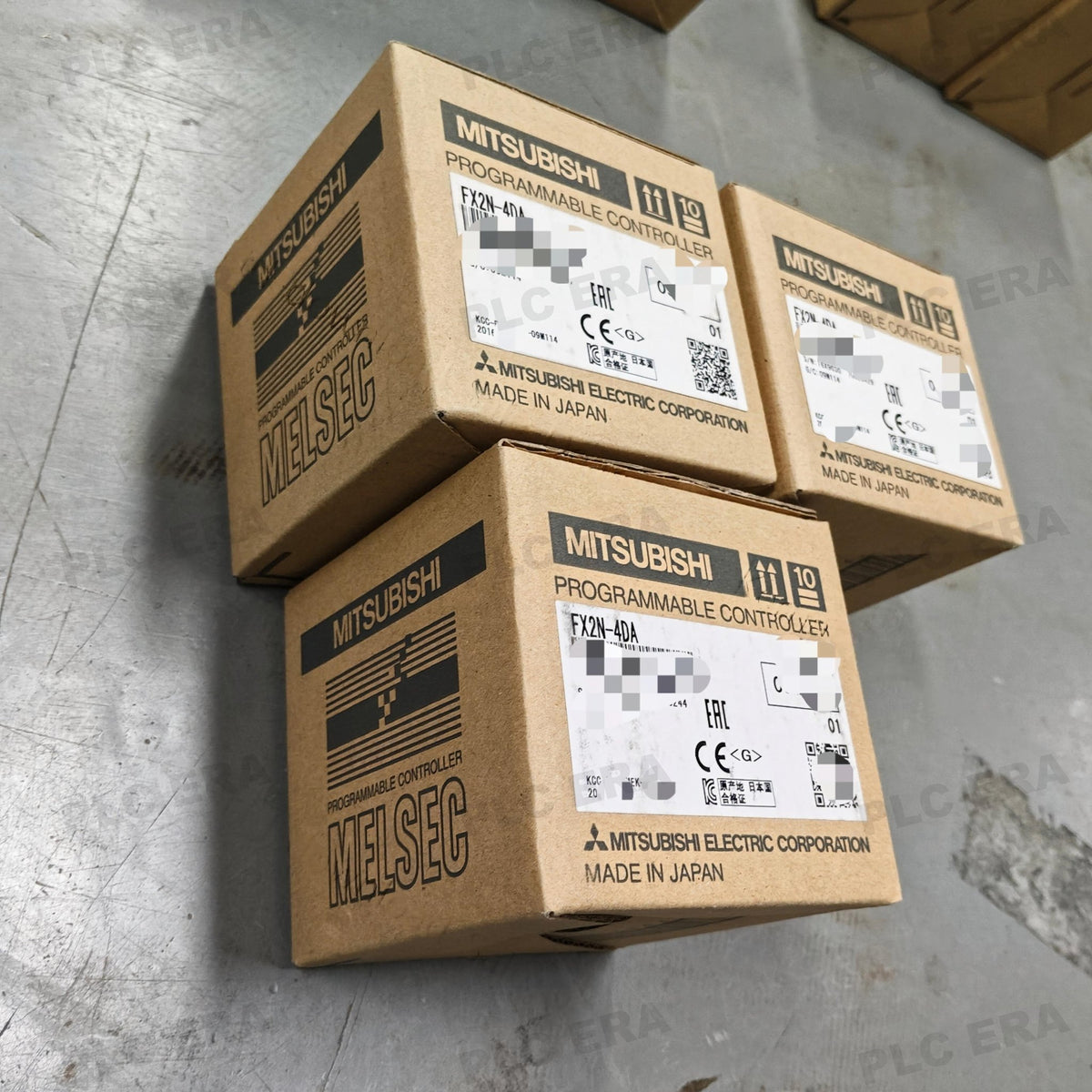

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi and MELSEC are
