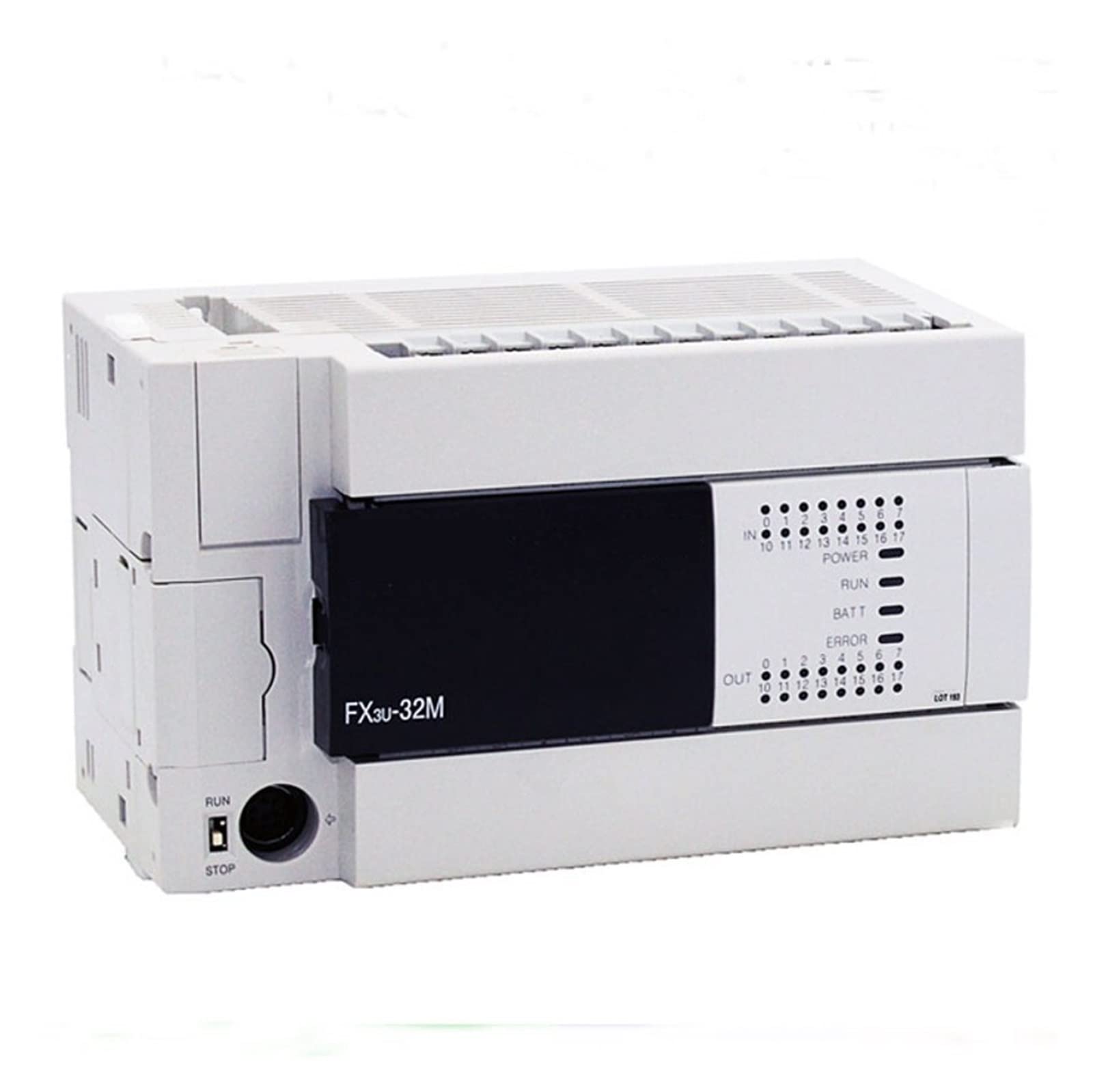

FX3U-32MR/ES-A 32 I/O PLC CPU Unit 16DI/16DO Relay | Mitsubishi Electric

The Original New Mitsubishi Electric FX3U-32MR/ES-A is a high-end compact programmable logic controller (PLC) CPU unit from the MELSEC-F FX3U series, designed for advanced machine control and industrial automation. Featuring 16 digital inputs (24 V DC, sink/source), 16 relay outputs (2 A per point), and 64K steps built-in RAM program memory, it delivers 0.065 μs per basic instruction processing speed. Built-in RS-422 and USB ports, real-time clock, and high-speed counter functions reduce the need for additional modules. The FX3U series supports up to 256 direct I/O points and 384 points with CC-Link remote I/O, making it suitable for packaging, material handling, and OEM machinery applications requiring high-speed processing and scalability.

Core Engineering Highlights:
16 digital inputs (24 V DC, sink/source) | 16 relay outputs (2 A per point, 240 V AC / 30 V DC) | 64K steps RAM program memory | 0.065 μs/basic instruction processing speed | Built-in RS-422 + USB programming ports | Built-in real-time clock | High-speed counters: 6 × 100 kHz + 2 × 10 kHz (single-phase) | 256 direct I/O points / 384 with CC-Link | 100–240 V AC power supply | 150 × 90 × 86 mm | 0.65 kg

Key Features:

• Original New Mitsubishi Electric FX3U-32MR/ES-A CPU unit

• 16 digital inputs, 24 V DC sink/source configurable

• 16 relay outputs (normally open contacts) for AC/DC load switching

• 64K steps built-in RAM program memory, expandable via memory cassette

• 0.065 μs/basic instruction and 0.642 μs/application instruction processing speed

• Built-in RS-422 port for programming and HMI communication

• Built-in USB port for direct PC connection

• Built-in real-time clock for time-based control

• Built-in RUN/STOP switch for local operation control

• Supports run-time program writing via programming software

• High-speed counter function: 100 kHz × 6 points + 10 kHz × 2 points (single-phase); 50 kHz × 2 points (two-phase)

• Input interrupt function with minimum 5 μs ON/OFF width (X000–X005)

• Pulse output function: 3 axes at 100 kHz (transistor output models)

• Expansion: up to 8 FX2N/FX3U series special function modules, up to 256 direct I/O points

• CC-Link remote I/O support: up to 384 total I/O points

• Function expansion boards and adapters can be connected on the left side

• Battery-free EEPROM operation for program retention

• DIN rail mounting (150 mm width)

Applications:

• Packaging machinery and assembly lines

• Material handling and conveyor control

• OEM machine automation and equipment integration

• General factory automation and industrial control

• Applications requiring relay output switching and high-speed processing

• Systems requiring CC-Link network expansion

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC-F FX3U series architecture. Module compatibility should be verified before installation.

• Expansion units: FX2N series I/O expansion units and special function modules (up to 8 modules)

• Function expansion boards: FX3U-232-BD (RS-232C), FX3U-485-BD (RS-485), FX3U-ENET-ADP (Ethernet)

• Special adapters: FX3U-4AD-ADP (analog input), FX3U-4DA-ADP (analog output), FX3U-4HSX-ADP (high-speed input)

• CC-Link communication: requires FX2N-32CCL interface module

• Programmed using GX Works2 or GX Developer 8.23Z or later

Related Products:

• FX3U-16MR/ES-A – 16 I/O version (8 inputs / 8 relay outputs)

• FX3U-32MT/ES-A – 32 I/O version with transistor outputs (sink)

• FX3U-48MR/ES-A – 48 I/O version (24 inputs / 24 relay outputs)

• FX3U-64MR/ES-A – 64 I/O version (32 inputs / 32 relay outputs)

• FX3U-4AD-ADP – 4-channel analog input adapter

• FX3U-4DA-ADP – 4-channel analog output adapter

• FX3U-232-BD – RS-232C function expansion board

• FX3U-485-BD – RS-485 function expansion board

• FX3U-ENET-ADP – Ethernet adapter

• FX2N-32CCL – CC-Link interface module
