FX3U-485-ADP-MB RS-485 Communication Adapter for FX3U | Mitsubishi Electric

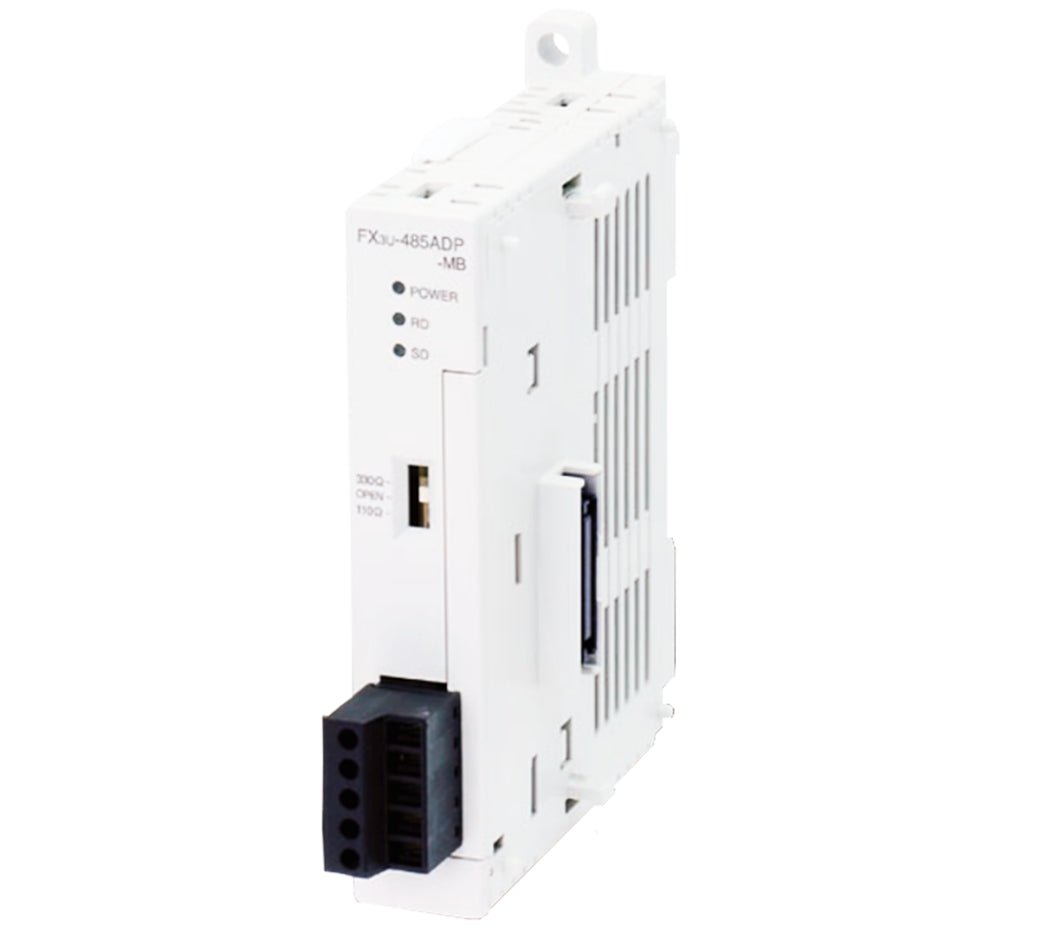

The Original New Mitsubishi Electric FX3U-485-ADP-MB is a communication special adapter designed for the MELSEC-F FX3U series programmable logic controller (PLC) system. It connects directly to the left side of the FX3U main unit and provides one isolated RS-485 communication channel, enabling the PLC to function as either a Modbus RTU/ASCII master or slave station. The adapter supports multiple communication methods including Modbus, computer link, parallel link, N:N network, and Mitsubishi inverter communication, making it a versatile solution for integrating third-party devices such as variable frequency drives, HMI panels, temperature controllers, and remote I/O stations. Photocoupler isolation ensures reliable signal transmission in electrically noisy industrial environments.

Core Engineering Highlights:
1 x RS-485 isolated communication channel | Half-duplex bidirectional communication | Transmission speed: 300 to 115200 bps | Maximum transmission distance: 500 m | Modbus RTU/ASCII (master/slave) | Photocoupler isolation | Built-in terminal resistor selector switch (330 Ω / OPEN / 110 Ω) | 17.6 mm width | 0.08 kg | 0°C to +55°C operating temperature

Key Features:

• Original New Mitsubishi Electric FX3U-485-ADP-MB adapter

• 1 x RS-485 isolated communication channel for the FX3U PLC system

• Supports Modbus RTU/ASCII communication in both master and slave modes

• Up to 32 slave devices can be controlled by one master station in Modbus RTU mode

• Photocoupler isolation ensures reliable, interference-free data transmission

• Built-in terminal resistor selector switch (330 Ω / OPEN / 110 Ω) simplifies network termination

• LED status indicators: POWER (green), RD (receive data, green), SD (send data, green)

• European-type removable terminal block for field wiring

• Occupies 0 I/O points (does not consume PLC I/O allocation)

• Connects to the left side of FX3U main unit

• Supports dedicated communication instructions (RS/RS2) for non-protocol and inverter communication

• Maximum read data (Modbus): 125 words or 2000 coils

• Maximum write data (Modbus): 123 words or 1968 coils

• DIN rail mounting

Applications:

• Modbus RTU/ASCII networking with inverters, HMIs, sensors, and actuators

• Multi-drop RS-485 communication between FX3U PLCs and third-party devices

• Inverter parameter setting and monitoring via Mitsubishi inverter protocol

• Temperature control systems with PID closed-loop control

• Remote sensor and I/O station integration

• Legacy system upgrades requiring Modbus connectivity for FX2N/FX3U configurations

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC-F series FX3U, FX3UC, FX3G, FX3GC, and FX3S PLCs. Drive model and firmware compatibility should be verified before installation.

• Connects to the left side of the PLC main unit

• For FX3S connection, FX3S-CNV-ADP is required

• For FX3G connection, FX3G-CNV-ADP is required

• For FX3U connection, a function expansion board is required when connecting to FX3UC-32MT-LT(-2)

• Maximum 2 special adapters can be connected to FX3U/FX3UC main units

• Modbus functionality requires main unit firmware version 2.40 or later

Related Products:

• FX3U-232ADP-MB – RS-232 communication adapter for FX3U (complementary)

• FX3U-485-BD – RS-485 function expansion board (non-isolated, 50 m)

• FX3G-485-BD – RS-485 function expansion board for FX3G

• FX3U-422-BD – RS-422 function expansion board

• FX3U-ENET-ADP – Ethernet adapter for FX3U

• FX3U-4AD-ADP – 4-channel analog input adapter

• FX3S-CNV-ADP – Conversion adapter for FX3S connection

• FX3G-CNV-ADP – Conversion adapter for FX3G connection
