FX5-4AD-ADP 4-Channel Analog Input Adapter 14-bit 24V DC | Mitsubishi

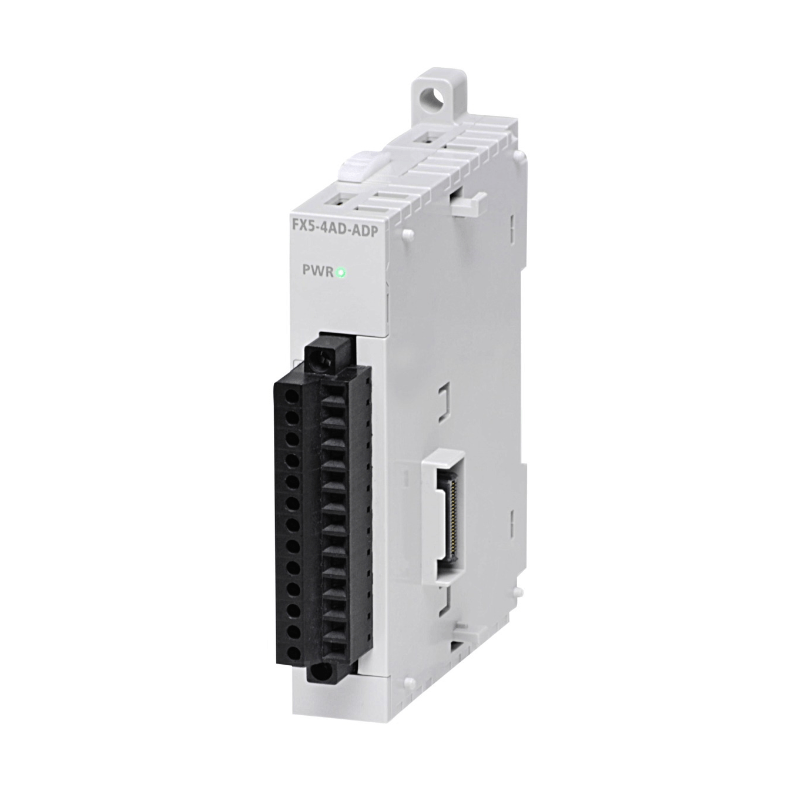

The Original New Mitsubishi FX5-4AD-ADP is a 4-channel analog input expansion adapter for the MELSEC iQ-F series, designed to add high-precision analog measurement capability to FX5U, FX5UC, FX5UJ, and FX5S CPU modules. Each of the 4 channels is independently configurable for voltage (–10 to +10V DC) or current (–20 to +20mA DC) signals with 14-bit binary resolution. The adapter connects to the left side of the CPU module and supports programless data transfer — no dedicated instructions are required. With 14-bit resolution, ±0.1% accuracy, and fast conversion up to 450 µs, it delivers reliable analog signal acquisition for industrial automation, process control, and machine monitoring applications.

Core Engineering Highlights:
4 analog input channels (voltage/current configurable) | –10 to +10V DC voltage range (1 MΩ input resistance) | –20 to +20mA DC current range (250 Ω input resistance) | 14-bit binary digital output | 625 µV to 1250 µV voltage resolution / 1.25 µA to 2.5 µA current resolution | ±0.1% accuracy at 25°C (±0.2% over 0–55°C) | 450 µs max conversion speed | Photocoupler isolation between input terminals and PLC | 0 occupied I/O points | 17.6 mm width | 0.1 kg weight | 0°C to +55°C operating temperature

Key Features:

• Original New Mitsubishi FX5-4AD-ADP adapter

• 4 analog input channels, independently configurable for voltage or current per channel

• Voltage input ranges: –10 to +10V, 0–10V, 0–5V, 1–5V

• Current input ranges: –20 to +20mA, 0–20mA, 4–20mA

• 14-bit binary resolution for high-precision measurement

• Programless data transfer — no dedicated instructions required

• Photocoupler isolation between input terminals and PLC

• 0 occupied I/O points (does not consume PLC I/O allocation)

• Maximum input protection: Voltage ±15V, Current ±30mA

• Connects to left side of CPU module

• Up to 4 modules connectable to FX5U/FX5UC/FX5S; up to 2 modules to FX5UJ

• European-style terminal block for easy wiring

• Compact 17.6 mm width for space-saving installation

Applications:

• Analog signal acquisition from pressure, flow, level, and temperature transmitters

• Process variable monitoring in factory automation and machine control

• Data acquisition for packaging, material handling, and conveyor systems

• OEM equipment requiring multi-channel analog input expansion

• Legacy analog sensor integration into iQ-F series PLC systems

Technical Specifications:

Resolution & Input Characteristics:

Compatibility:

• Compatible CPU modules: FX5U, FX5UC, FX5UJ, FX5S

• Maximum connectable modules: FX5U/FX5UC/FX5S: up to 4 modules; FX5UJ: up to 2 modules

• For FX5UC CPU module, FX5‑CNV‑IFC or FX5‑C1PS‑5V adapter is required

• Connects to the left side of the CPU module

• Compatible with FX5 series programming and configuration via GX Works3

Related Products:

• FX5-4DA-ADP – 4-channel analog output adapter (voltage/current)

• FX5-4AD-PT-ADP – 4-channel Pt100 temperature input adapter

• FX5-4AD-TC-ADP – 4-channel thermocouple input adapter

• FX5-4AD – 4-channel analog input module (spring clamp terminal type, intelligent function unit)

• FX5-CNV-IFC – Conversion adapter for FX5UC CPU connection

• FX5-4AD-ADP – 4-channel analog input adapter (current model)

• GX Works3 – Engineering software for configuration and programming

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi and MELSEC are trademarks of Mitsubishi Electric Corporation.
