FX5-4AD 4-Channel Analog Input Module 1/32000 | Mitsubishi

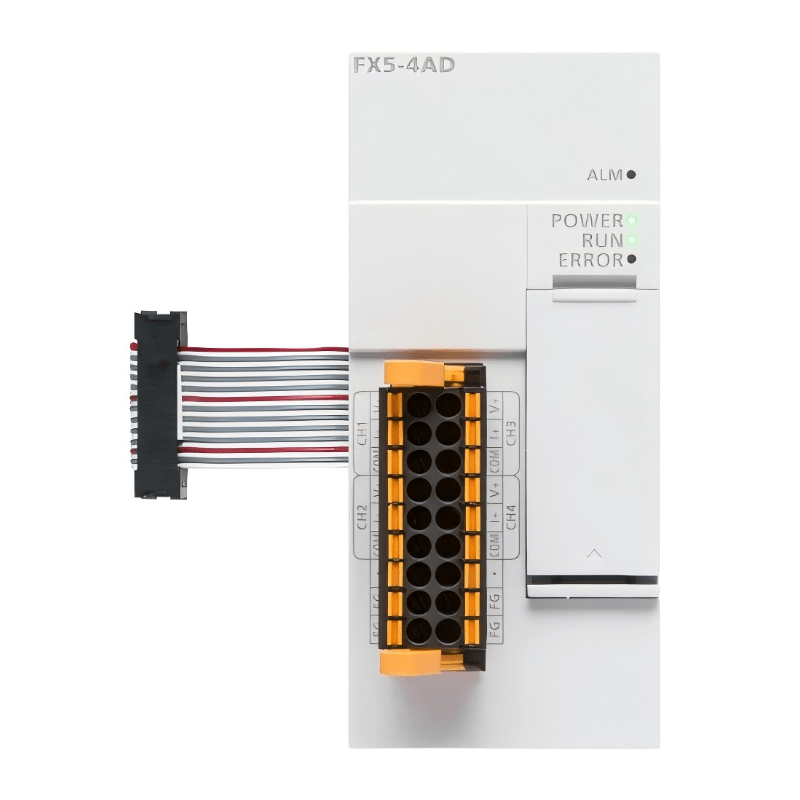

The Original New Mitsubishi FX5-4AD is a 4-channel analog input module from the MELSEC iQ-F series, designed for high-precision analog signal acquisition in compact machine control and industrial automation systems. As an intelligent function module, it converts analog voltage or current signals from field devices into high-resolution digital values for process monitoring and control. Featuring 1/32000 conversion resolution (16-bit), the module delivers precise measurement for pressure, flow, level, and temperature applications. The FX5-4AD connects to FX5U, FX5UJ, or FX5S CPU modules (with FX5UC requiring an adapter) and features a spring clamp terminal block for tool-free wiring.

Core Engineering Highlights:
4 analog input channels (voltage/current, per-channel configurable) | Voltage: -10 to +10 V DC (input resistance 400 kΩ or more) | Current: -20 to +20 mA DC (input resistance 250 Ω) | 1/32000 conversion resolution (16-bit) | Spring clamp terminal block | 24 V DC power supply | 0°C to +55°C operating temperature | 0.2 kg weight

Key Features:

• Original New Mitsubishi FX5-4AD module

• 4 analog input channels, each independently configurable as voltage or current input

• Voltage input ranges: -10 to +10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC

• Current input ranges: -20 to +20 mA DC, 0 to 20 mA DC, 4 to 20 mA DC

• 1/32000 conversion resolution (16-bit) for high-precision measurement

• Spring clamp terminal block for tool-free wiring

• Direct mounting via 2 x 4.5 mm mounting holes (M4 screws)

• POWER, RUN, ERROR, ALM LED status indicators

• Suitable for use with FX5U, FX5UJ, and FX5S CPU modules (FX5UC requires FX5-CNV-IFC or FX5-C1PS-5V)

• Configurable via GX Works3 engineering software

• Occupies 8 I/O points

• RoHS compliant, CE, UL/cUL approved

Applications:

• Analog signal acquisition from pressure, flow, and level transmitters

• Temperature and process monitoring in machine automation

• Data acquisition for packaging and material handling systems

• OEM equipment requiring high-precision analog input

• Process control loops with 4–20 mA transmitters

• Voltage signal monitoring from position and force sensors

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-F series programmable controllers (FX5U, FX5UJ, FX5S)

• For FX5UC CPU module, an FX5-CNV-IFC or FX5-C1PS-5V conversion adapter is required

• Connects directly to the CPU module's extension bus

• Configurable via GX Works3 engineering software (Ver.1.040S or later)

Related Products:

• FX5-4DA – 4-channel analog output module (complementary)

• FX5-4AD-ADP – 4-channel analog input adapter (left-side connection)

• FX5-8AD – 8-channel multiple input analog module

• FX5-4AD-PT-ADP – 4-channel Pt100 temperature input adapter

• FX5-4AD-TC-ADP – 4-channel thermocouple input adapter

• GX Works3 – Engineering software for MELSEC iQ-F series
