FX5-4DA-ADP 4-Channel Analog Output Adapter for MELSEC iQ-F | Mitsubishi

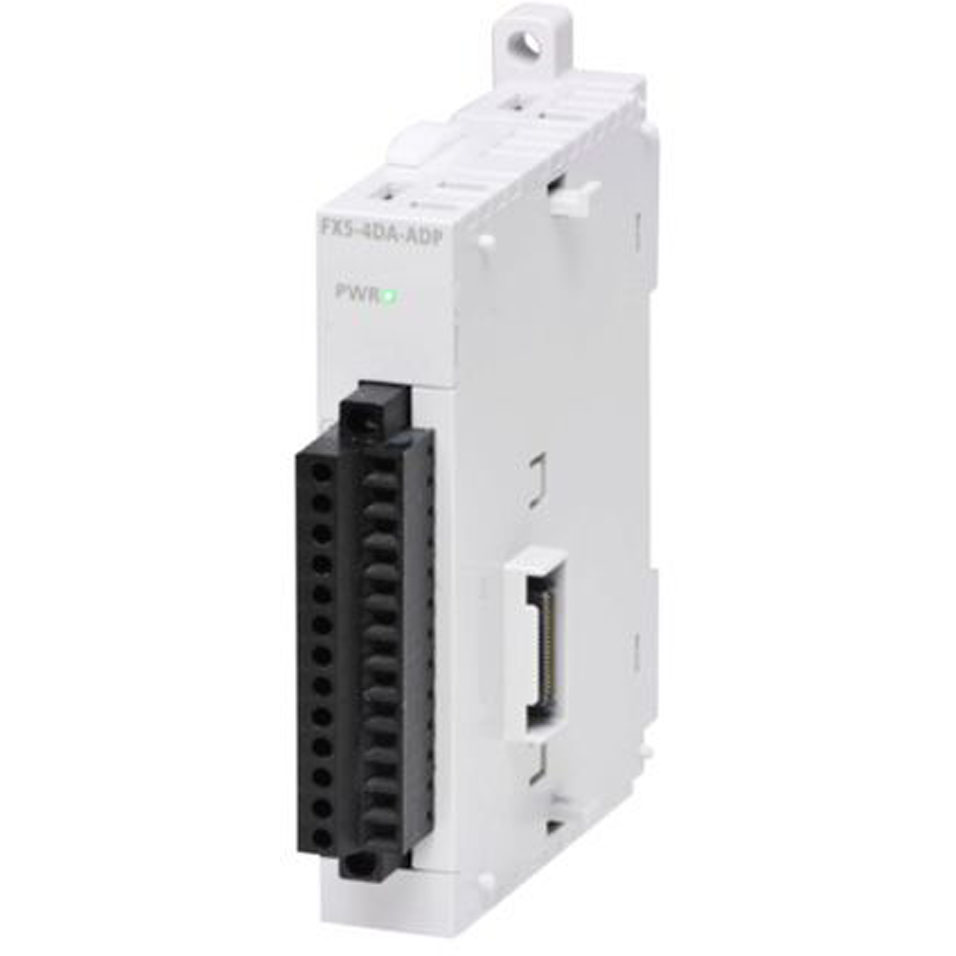

The Original New Mitsubishi FX5-4DA-ADP is a 4-channel analog output expansion adapter for the MELSEC iQ-F series programmable controllers. Designed to connect to the left side of the CPU module, it converts digital values into precise voltage or current signals for controlling variable frequency drives, proportional valves, actuators, and other analog field devices. With 14-bit binary resolution and a fast conversion speed of up to 950 µs, this adapter delivers high-accuracy analog control for machine automation, process control, and OEM equipment. Its compact 17.6 mm width and DIN rail mounting capability allow space-efficient installation in control panels.

Core Engineering Highlights:
4 analog output channels (voltage/current) | 14-bit binary digital input | Voltage output: -10 to +10 V DC (load 1 kΩ to 1 MΩ) | Current output: 0 to 20 mA DC (load 0 to 500 Ω) | Conversion speed: max. 950 µs | Accuracy: ±0.1% at 25±5°C / ±0.2% at -20 to 55°C | Photocoupler isolation | Occupies 0 I/O points | External 24 V DC supply (160 mA max) | 17.6 mm width | 0°C to +55°C operating temperature

Key Features:

• Original New Mitsubishi FX5-4DA-ADP adapter

• 4 analog output channels, individually configurable for voltage or current

• Voltage output ranges: -10 to +10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC

• Current output ranges: 0 to 20 mA DC, 4 to 20 mA DC

• 14-bit binary resolution for precise signal generation

• Fast conversion speed: maximum 950 µs

• Photocoupler isolation between output terminals and PLC for noise immunity

• Occupies 0 I/O points from the PLC allocation

• External 24 V DC power supply required for D/A conversion circuit (160 mA max)

• Internal interface powered from the CPU (5 V DC, 10 mA)

• Compact 17.6 mm width for high-density panel mounting

• DIN rail mounting with integrated hook

• Configured via GX Works3 engineering software

• Connects to the left side of the FX5 CPU module

Applications:

• Speed reference control for variable frequency drives (VFDs)

• Proportional valve and actuator positioning

• Analog signal generation for process control

• Machine automation and OEM equipment

• Temperature, pressure, and flow control loops

• General industrial automation requiring 4-channel analog output

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC iQ-F series programmable controllers (FX5U, FX5UC, FX5UJ, FX5S)

• Connects to the left side of the CPU module via the expansion connector

• Configured using GX Works3 engineering software

• Up to 4 special adapters can be connected to a single CPU module

• Requires external 24 V DC power supply wired to the bottom of the adapter

Related Products:

• FX5-4AD-ADP – 4-channel analog input adapter

• FX5-4A-ADP – 2 analog inputs + 2 analog outputs combination adapter

• FX5-4AD-PT-ADP – 4-channel Pt100 temperature input adapter

• FX5-4AD-TC-ADP – 4-channel thermocouple input adapter

• FX5-4DA – 4-channel analog output module (intelligent function module)

• GX Works3 – Engineering software for MELSEC iQ-F series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi, MELSEC, and MELSEC iQ-F are trademarks of Mitsubishi Electric Corporation.
