FX5-4DA 4-Channel Analog Output Module 1/32000 | Mitsubishi

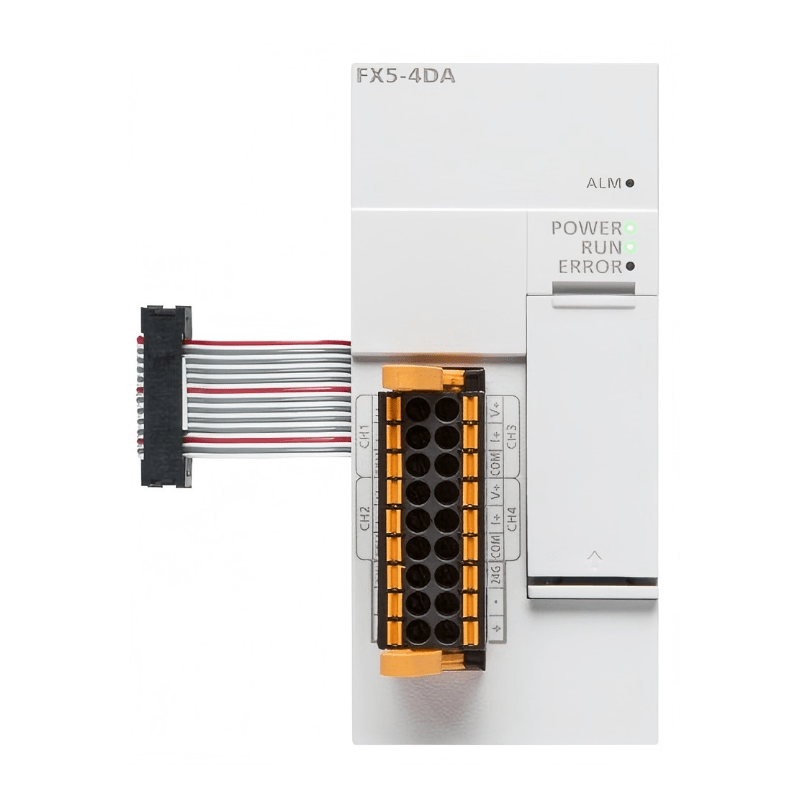

The Original New Mitsubishi FX5-4DA is a 4-channel analog output module from the MELSEC iQ-F series, designed for high-precision analog signal generation in compact machine control and industrial automation systems. As an intelligent function module, it converts digital values into analog voltage or current outputs across four independent channels, providing flexible control of variable frequency drives, proportional valves, actuators, and other analog field devices. Featuring 1/32000 conversion resolution, the module delivers precise signal generation for process control and monitoring applications. The FX5-4DA connects to FX5U, FX5UC, FX5UJ, or FX5S CPU modules and features a spring clamp terminal block for tool-free wiring.

Core Engineering Highlights:
4 analog output channels (voltage/current, per-channel configurable) | Voltage: -10 to +10 V DC, 0 to 10 V, 0 to 5 V, 1 to 5 V | Current: 0 to 20 mA, 4 to 20 mA | 1/32000 conversion resolution (16-bit) | 24 V DC power supply | Spring clamp terminal block | 0°C to +55°C operating temperature | 0.2 kg weight

Key Features:

• Original New Mitsubishi FX5-4DA module

• 4 analog output channels, each independently configurable as voltage or current output

• Voltage output ranges: -10 to +10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC

• Current output ranges: 0 to 20 mA DC, 4 to 20 mA DC

• 1/32000 conversion resolution (16-bit) for high-precision signal generation

• Spring clamp terminal block for tool-free wiring

• Direct mounting via 2 x 4.5 mm mounting holes (M4 screws)

• POWER, RUN, ERROR, ALM LED status indicators

• Suitable for use with FX5U, FX5UC, FX5UJ, and FX5S CPU modules

• Configurable via GX Works3 engineering software

• Occupies 16 I/O points

• RoHS compliant, CE, UL/cUL approved

Applications:

• Speed reference control for variable frequency drives (VFDs)

• Proportional valve and actuator positioning

• Analog signal generation for process control

• Machine automation and OEM equipment

• Temperature, pressure, and flow control loops

• General industrial automation requiring 4-channel analog output

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-F series programmable controllers (FX5U, FX5UC, FX5UJ, FX5S)

• Connects directly to the CPU module's extension bus

• Configurable via GX Works3 engineering software

• Suitable for use with Mitsubishi inverters, servo drives, and proportional valves

Related Products:

• FX5-4AD – 4-channel analog input module (complementary)

• FX5-4DA-ADP – 4-channel analog output adapter (12-bit, left-side connection)

• FX5-8AD – 8-channel multiple input analog module

• FX3U-4DA – Predecessor for FX3U series

• GX Works3 – Engineering software for MELSEC iQ-F series

• FX5U-64MR/ES – MELSEC iQ-F series PLC CPU with built-in Ethernet

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi, MELSEC, and MELSEC iQ-F are trademarks of Mitsubishi Electric Corporation.
