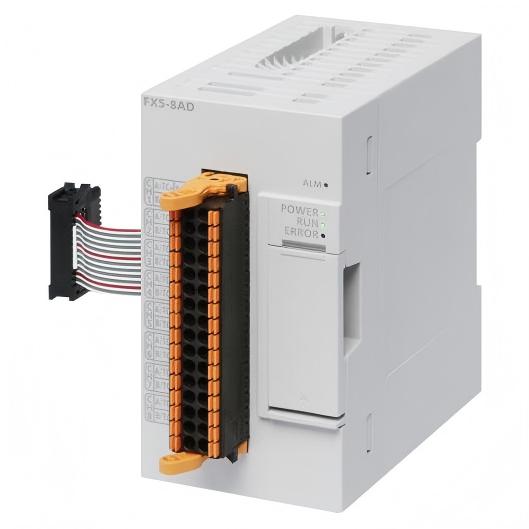

FX5-8AD 8-Channel Analog Input Module Pt100/Ni100/K/J/T/B/R/S | Mitsubishi

The Original New Mitsubishi FX5-8AD is an 8-channel multi-input analog input module for the MELSEC iQ-F series, designed to handle a versatile mix of analog signals including voltage, current, thermocouple, and RTD temperature sensors. With a single module covering 8 analog inputs across multiple signal types, it simplifies system design by reducing the need for separate dedicated modules. The module features a wide input range, high-resolution 1/32000 conversion, and a spring clamp terminal block for tool-free wiring. It is an ideal solution for machine automation, process control, and temperature monitoring applications requiring flexible and precise analog signal acquisition.

Core Engineering Highlights:
8 analog input channels (voltage, current, thermocouple, RTD) | 1/32000 conversion resolution (16-bit signed binary) | Voltage inputs: 0–10V, 0–5V, 1–5V, -10 to +10V | Current inputs: 0–20mA, 4–20mA, -20 to +20mA | Thermocouple types: K, J, T, B, R, S | RTD types: Pt100, Ni100 | Conversion speed: 1 ms/channel (voltage/current), 40 ms/channel (thermocouple/RTD) | Spring clamp terminal block | 8 occupied I/O points | 24V DC external power supply | 0°C to +55°C operating temperature | Approx. 0.3 kg weight

Key Features:

• Original New Mitsubishi FX5-8AD module

• 8 analog input channels, each configurable for voltage, current, thermocouple, or RTD

• Voltage/Current input ranges: 0–10V, 0–5V, 1–5V, -10 to +10V, 0–20mA, 4–20mA, -20 to +20mA

• Thermocouple types: K, J, T, B, R, S

• RTD types: Pt100, Ni100

• 1/32000 high-resolution conversion (16-bit signed binary, -32000 to +32000)

• Fast conversion speed: 1 ms per channel for voltage/current, 40 ms per channel for thermocouple/RTD

• Spring clamp terminal block for tool-free wiring

• Photocoupler isolation between input terminals and PLC (non-isolated between channels)

• Occupies 8 I/O points on the PLC

• Direct connection to FX5U, FX5UC, FX5UJ, and FX5S CPU modules

• External 24V DC power supply required for operation

• LED indicators for module status

• DIN rail mounting for space-efficient installation

Applications:

• Multi-channel temperature monitoring with thermocouples or RTDs

• Process variable acquisition from 4–20mA transmitters (pressure, flow, level)

• Voltage and current signal monitoring in industrial automation

• Machine automation and data acquisition

• Packaging machinery and material handling systems

• OEM equipment requiring mixed analog input types

• Factory automation and process control systems

• Legacy FX2N-8AD system upgrades

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-F series CPU modules:

  • FX5U CPU module: Ver. 1.050 or later

  • FX5UC CPU module: Ver. 1.050 or later (FX5-CNV-IFC or FX5-C1PS-5V required for connection)

  • FX5UJ CPU module: From first production

  • FX5S CPU module: From first production

• Configured via GX Works3 engineering software

• Connects to the right side of the CPU module via extension cable

• Part of the MELSEC iQ-F series I/O system architecture

Related Products:

• FX5-4AD – 4-channel analog input module (voltage/current)

• FX5-4DA – 4-channel analog output module (voltage/current)

• FX5-4AD-PT-ADP – 4-channel Pt100 temperature input adapter

• FX5-4AD-TC-ADP – 4-channel thermocouple input adapter

• FX5-CNV-IFC – Conversion adapter for FX5UC CPU connection

• FX5-8AD – 8-channel multi-input analog module (current model)

• GX Works3 – Engineering software for configuration and programming
