FX5-CCL-MS CC-Link Master/Intelligent Device Module | Mitsubishi

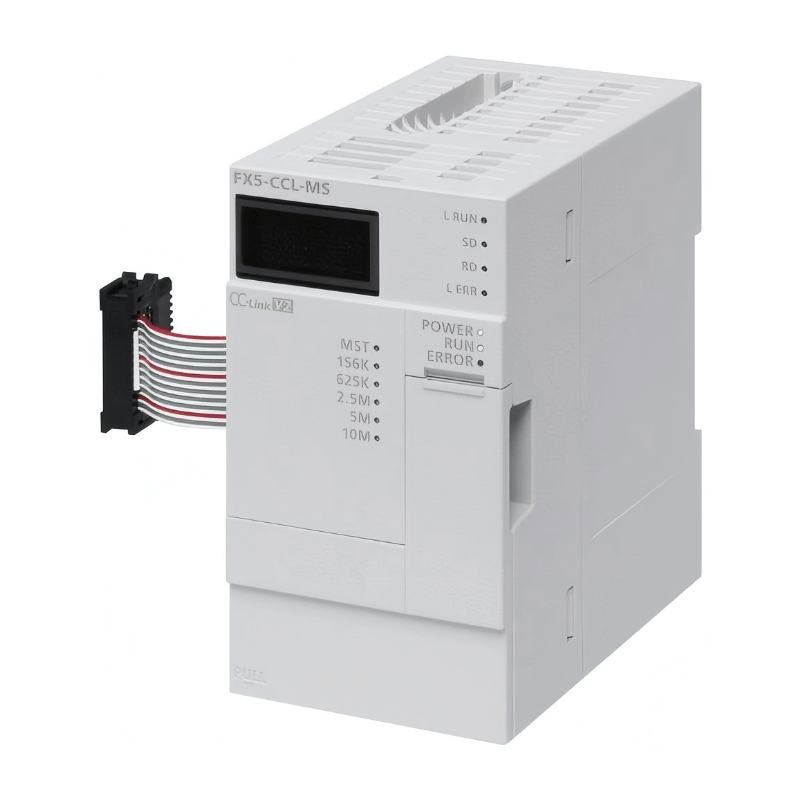

The Original New Mitsubishi FX5-CCL-MS is a CC-Link system master/intelligent device module for the MELSEC iQ-F series programmable controllers. It functions as either a CC-Link master station or an intelligent device station, selectable via parameter setting, providing flexible network configuration for distributed I/O control. The module supports CC-Link Ver. 2.00 (with Ver. 1.10 compatibility), transmission speeds from 156 kbps to 10 Mbps, and a maximum transmission distance of 1,200 m. Equipped with a 24 V DC external power supply and an 8-point I/O occupation, it enables high-speed data exchange with remote I/O stations, remote device stations, and intelligent device stations. This module is the direct successor to the FX3U-16CCL-M, offering enhanced integration with the iQ-F platform.

Core Engineering Highlights:
CC-Link Ver. 2.00 (Ver. 1.10 compatible) | Master station or intelligent device station (selectable) | Transmission speed: 156 kbps to 10 Mbps | Max. transmission distance: 1,200 m | Up to 64 stations connectable (master station) | 8 occupied I/O points | External 24 V DC power supply (100 mA) | 50 × 90 × 83 mm | Approx. 0.3 kg

Key Features:

• Original New Mitsubishi FX5-CCL-MS module

• Functions as CC-Link master station or intelligent device station (selectable via parameter)

• Supports CC-Link Ver. 2.00 with backward compatibility for Ver. 1.10

• Transmission speeds: 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps

• Maximum transmission distance: 1,200 m (varies with transmission speed)

• Broadcast polling method with bus (RS-485) topology

• HDLC-compliant frame synchronization, NRZI encoding, CRC error control

• Connectable stations (master): remote I/O station, remote device station, intelligent device station

• Number of occupied stations (intelligent device station): 1 to 4 stations (configurable)

• Maximum connectable stations: FX5U/FX5UC – up to 14 remote I/O stations (448 points max); FX5UJ – up to 6 remote I/O stations (192 points max)

• Maximum link points per system (master station, Ver. 2): RX/RY 768 points, RWw 48 points, RWr 48 points (FX5U/FX5UC); RX/RY 448 points, RWw 32 points, RWr 32 points (FX5UJ)

• Occupies 8 I/O points

• External 24 V DC power supply (allowable instantaneous power failure: 1 ms or less)

• Configurable via GX Works3 engineering software

• Direct successor to FX3U-16CCL-M

• RoHS compliant, CE, UL/cUL approved

Applications:

• CC-Link network master station for distributed I/O control

• Intelligent device station integration in multi-vendor CC-Link networks

• Factory automation and production line control with remote I/O

• Material handling and conveyor systems requiring high-speed fieldbus communication

• Packaging machinery and assembly lines with distributed control architecture

• General industrial automation requiring CC-Link connectivity for MELSEC iQ-F series PLCs

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-F series programmable controllers (FX5U, FX5UC, FX5UJ, FX5S)

• FX5U CPU module: Ver. 1.050 or later

• FX5UC CPU module: Ver. 1.050 or later (requires FX5-CNV-IFC or FX5-C1PS-5V)

• FX5UJ CPU module: Ver. 1.060N or later

• Configurable via GX Works3 engineering software (parameter settings for station type, mode, station number, and transmission speed)

• When using FX5-CCL-MS as master station, FX3U-16CCL-M cannot be used simultaneously

• When using FX5-CCL-MS as intelligent device station, FX3U-64CCL cannot be used simultaneously

Related Products:

• FX3U-16CCL-M – Predecessor CC-Link master module (for FX3U series)

• FX3U-64CCL – CC-Link intelligent device station module (for FX3U series)

• FX5-CNV-IFC – Conversion adapter for FX5UC CPU connection

• FX5-C1PS-5V – Power supply adapter for FX5UC CPU connection

• FX5U-64MR/ES – MELSEC iQ-F series PLC CPU with built-in Ethernet

• FX5-ENET/IP – EtherNet/IP communication module for MELSEC iQ-F

• GX Works3 – Engineering software for MELSEC iQ-F series
