FX5-ENET/IP EtherNet/IP Communication Module for MELSEC iQ-F | Mitsubishi
FX5-ENET/IP EtherNet/IP Communication Module for MELSEC iQ-F | Mitsubishi
11 in stock
Couldn't load pickup availability

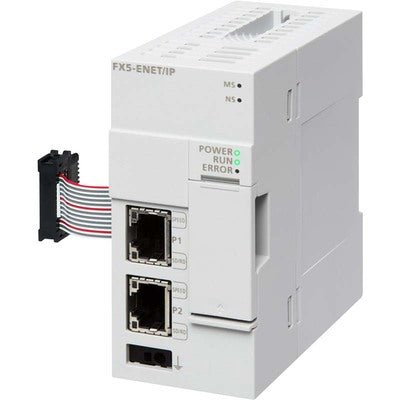

The Original New Mitsubishi FX5-ENET/IP is an intelligent EtherNet/IP communication module for the MELSEC iQ-F series programmable controllers. Installed as an expansion unit, it adds EtherNet/IP scanner capability to FX5U, FX5UC, FX5UJ, and FX5S CPU modules, enabling the PLC to exchange cyclic I/O data and message data with EtherNet/IP devices such as remote I/O blocks, drives, robots, and third-party controllers. The module also provides general-purpose Ethernet communication functions including MELSOFT connection, SLMP server, socket communication, simple CPU communication, and BACnet/IP. Dual RJ45 ports share a single IP address for flexible star or line topology wiring. This product has been announced as discontinued by Mitsubishi Electric, with the recommended successor being the FX5-EIP.
Core Engineering Highlights:
EtherNet/IP scanner (Class 1 instance, Class 3 message, UCMM message) | Up to 32 connections | Class 1 data size: 1444 bytes per connection | Data transmission speed: 100 Mbps full-duplex | 2 x RJ45 ports (shared IP address) | Occupies 8 I/O points | Internal 5 V DC current consumption: 0.1 A | Dimensions: 40 × 90 × 83 mm | Approx. 0.2 kg
Key Features:
-
Original New Mitsubishi FX5-ENET/IP module
-
Adds EtherNet/IP scanner functionality to MELSEC iQ-F series PLCs
-
EtherNet/IP communications: Class 1 instance communications, Class 3 message communications, UCMM message communications
-
Up to 32 EtherNet/IP connections (Class 3 + UCMM combined)
-
Class 1 communication data size: 1444 bytes per connection
-
Class 1 RPI (communication cycle): 2 to 60,000 ms
-
Class 1 PPS (communication processing performance): 3,000 pps (at 128 bytes)
-
General-purpose Ethernet communication: MELSOFT connection, SLMP server (3E/1E frame), socket communication, simple CPU communication, BACnet/IP
-
Up to 32 external devices accessible simultaneously
-
Dual RJ45 ports with shared IP address (IPv4 supported)
-
Supports star topology and line topology
-
100BASE-TX cascade connection: 2 levels maximum
-
Compatible with category 5 or higher STP Ethernet cable (straight or cross)
-
Configurable via GX Works3 and EtherNet/IP Configuration Tool for FX5-ENET/IP
-
Occupies 8 I/O points
-
RoHS compliant, CE, UL/cUL, KC, DNV GL, LR, NK approved
Applications:
-
EtherNet/IP network integration for MELSEC iQ-F PLC systems
-
Connecting FX5U PLCs as EtherNet/IP scanners to remote I/O and drives
-
Factory automation and production line control with EtherNet/IP devices
-
Interfacing with third-party EtherNet/IP controllers, robots, and vision systems
-
General industrial automation requiring EtherNet/IP communication
Technical Specifications:
| Attribute | Specification |
|---|---|
| Catalog Number | FX5-ENET/IP |
| Product Family | MELSEC iQ-F Series |
| Product Type | EtherNet/IP Communication Module (Scanner) |
| Applicable CPU Modules | FX5U (Ver. 1.050C or later), FX5UC (Ver. 1.050C or later), FX5UJ (Ver. 1.060N or later), FX5S |
| FX5UC Connection | FX5-CNV-IFC or FX5-C1PS-5V required |
| Applicable Engineering Tool | GX Works3, EtherNet/IP Configuration Tool for FX5-ENET/IP |
| Number of Connectable Modules | 1 module |
| Number of Ports | 2 (shared IP address) |
| Occupied I/O Points | 8 points |
| Weight | Approx. 0.2 kg |
EtherNet/IP Communications:
| Attribute | Class 1 | Class 3 | UCMM |
|---|---|---|---|
| Communication format | Standard EtherNet/IP | Standard EtherNet/IP | Standard EtherNet/IP |
| Number of connections | 32 | 32 (total with UCMM) | 32 (total with Class 3) |
| Communication data size | 1444 bytes/connection | 1414 bytes | – |
| Connection type | Point-to-point, multicast | Point-to-point | Point-to-point |
| RPI (communication cycle) | 2–60,000 ms | – | – |
| PPS (processing performance) | 3,000 pps (128 bytes) | – | – |
| Server function | – | Supported | – |
General-Purpose Ethernet Communication:
| Attribute | Specification |
|---|---|
| Data transmission speed | 100/10 Mbps |
| Communication mode | Full-duplex or half-duplex |
| Transmission method | Base band |
| Interface | RJ45 connector |
| Maximum segment length | 100 m (hub to node) |
| Cascade connections (100BASE-TX) | 2 levels maximum |
| Cascade connections (10BASE-T) | 4 levels maximum |
| Protocols | MELSOFT connection, SLMP server (3E/1E frame), socket communication, simple CPU communication, BACnet/IP |
| Number of connections | 32 external devices |
Transmission Specifications:
| Attribute | Specification |
|---|---|
| Data transmission speed | 100 Mbps |
| Communication mode | Full-duplex |
| Transmission method | Base band |
| Interface | RJ45 connector |
| IP version | IPv4 |
| Maximum segment length | 100 m (hub to node) |
| Network topology | Star topology, line topology |
| Hub | 100BASE-TX ports (IEEE 802.3 compliant) |
| Connection cable | Category 5 or higher STP cable (straight/cross) |
Power Supply Specifications:
| Attribute | Specification |
|---|---|
| Internal power supply voltage | 5 V DC (from CPU module) |
| Current consumption | 0.1 A |
Physical & Environmental:
| Attribute | Specification |
|---|---|
| Width | 40 mm |
| Height | 90 mm |
| Depth | 83 mm |
| Weight | Approx. 0.2 kg |
| Certifications | CE (EMC), CE (RoHS), UL, cUL, KC (EMC), LR, NK, DNV |
| Product Status | Discontinued (Order acceptance: December 2026 / Production discontinuation: March 2027) |
System Compatibility:
-
Compatible with Mitsubishi MELSEC iQ-F series programmable controllers (FX5U, FX5UC, FX5UJ, FX5S)
-
For FX5UC CPU modules, an FX5-CNV-IFC or FX5-C1PS-5V conversion adapter is required
-
FX5U and FX5UC CPU modules require firmware Ver. 1.050C or later
-
FX5UJ CPU modules require firmware Ver. 1.060N or later
-
Configurable via GX Works3 engineering software and EtherNet/IP Configuration Tool for FX5-ENET/IP
Related Products:
-
FX5-EIP – Recommended successor EtherNet/IP module
-
FX5-ENET – Ethernet communication module (general-purpose Ethernet, without EtherNet/IP)
-
FX5U-64MR/ES – MELSEC iQ-F series PLC CPU with built-in Ethernet
-
FX5-CNV-IFC – Conversion adapter for FX5UC CPU connection
-
FX5-C1PS-5V – Power supply adapter for FX5UC CPU connection
-
GX Works3 – Engineering software for MELSEC iQ-F series
