HC-KFS43 400W Low-Inertia AC Servo Motor 17-Bit Encoder | Mitsubishi

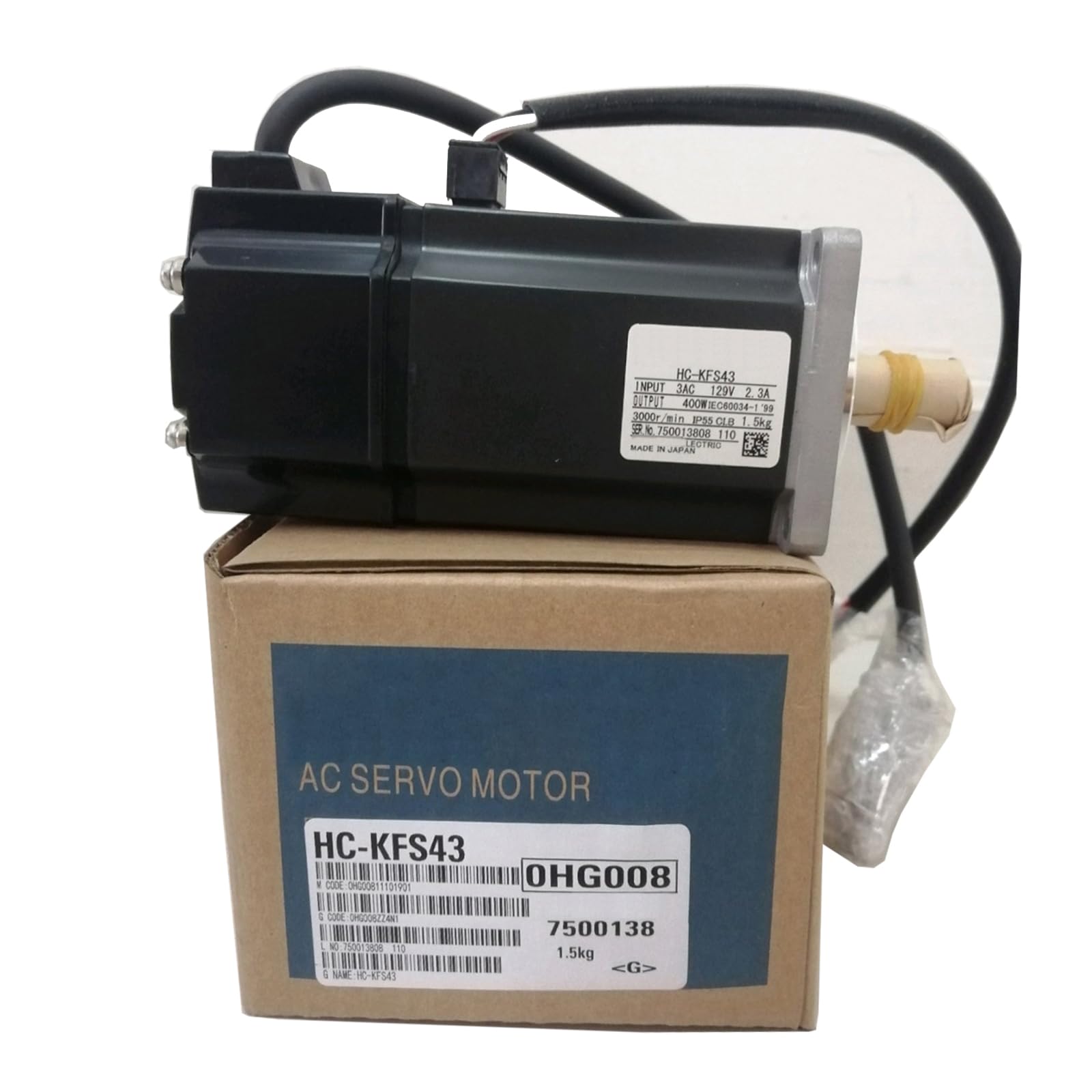

The Original New Mitsubishi HC-KFS43 is a 400 W (0.4 kW) low‑inertia AC brushless rotary servo motor from the MELSERVO J2S series, designed for high‑response precision motion control in industrial automation systems. Featuring a built‑in 17‑bit absolute feedback encoder (131,072 pulses/revolution) and a straight shaft design, it delivers accurate position feedback and reliable performance for applications requiring rapid acceleration and precise positioning. The motor is equipped with a 60 mm × 60 mm flange mounting interface and IP55 protection, making it suitable for machine tools, semiconductor manufacturing equipment, and general factory automation.

Core Engineering Highlights:
400 W (0.4 kW) rated output | 1.3 N·m rated torque / 3.8 N·m maximum torque | 3,000 rpm rated speed / 4,500 rpm maximum speed | 2.3 A rated current / 6.9 A maximum current | 17‑bit absolute encoder (131,072 ppr) | 0.0000460 kg·m² rotor inertia | 60 × 60 mm flange mounting | IP55 protection | 0°C to +40°C operating temperature

Key Features:

• Original New Mitsubishi HC-KFS43 servo motor

• 400 W (0.4 kW) rated output power

• 1.3 N·m rated torque, 3.8 N·m maximum torque

• 3,000 rpm rated speed, 4,500 rpm maximum speed

• 2.3 A rated current, 6.9 A maximum current

• Built-in 17-bit absolute encoder (131,072 pulses/revolution)

• Straight shaft design for secure coupling

• Low-inertia rotor (0.0000460 kg·m²) for rapid response

• 60 mm × 60 mm flange mounting

• IP55 protection against dust and water ingress

• Fan cooling for thermal management

• Compatible with MR-J2S series servo amplifiers

Applications:

• Precision positioning in semiconductor manufacturing equipment

• High-speed pick-and-place and assembly systems

• CNC machine tools and automated production lines

• Packaging machinery and labeling equipment

• General industrial automation requiring rapid acceleration and accurate positioning

• Material handling and conveyor systems

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSERVO J2S series servo amplifiers including MR-J2S-40A (pulse train interface) and MR-J2S-40B (SSCNET interface)

• Also compatible with MR-J3-40A and MR-J3-40B amplifiers when configured for J2S compatibility mode

• For absolute position retention during power-off, an external battery (MR-BAT6V1SET) is required

• Suitable for use with HC-KFS series motor cables and encoder cables

Related Products:

• MR-J2S-40A – MELSERVO J2S series 400 W servo amplifier (pulse train interface)

• MR-J2S-40B – MELSERVO J2S series 400 W servo amplifier (SSCNET interface)

• HC-KFS43B – 400 W version with built-in electromagnetic brake

• HC-KFS43K – 400 W version with keyed shaft

• HC-KFS23 – 200 W version (lower power)

• HC-KFS73 – 750 W version (higher power)

• MR-BAT6V1SET – Battery for absolute encoder backup

• MR-J3ENCBL2M-A1 – Encoder cable, 2 m

• MR-PWS1CBL2M-A1 – Power cable, 2 m
