HG-KR13 100W Low-Inertia AC Servo Motor 22-Bit Encoder | Mitsubishi

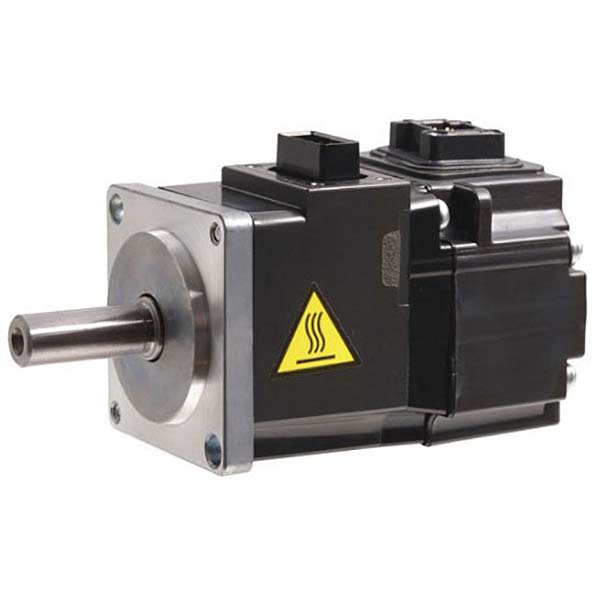

The Original New Mitsubishi HG-KR13 is a 100 W (0.1 kW) low‑inertia AC brushless rotary servo motor from the MELSERVO J4 series, designed for high‑frequency positioning and rapid acceleration/deceleration applications in industrial automation systems. Featuring a built‑in 22‑bit absolute feedback encoder (4,194,304 pulses/revolution) and a straight shaft design, it delivers high‑precision position feedback and reliable performance for applications requiring fast response and precise positioning. The motor is equipped with a 40 mm × 40 mm flange mounting interface and IP65 protection, making it suitable for semiconductor manufacturing equipment, small pick‑and‑place systems, and general factory automation.

Core Engineering Highlights:
100 W (0.1 kW) rated output | 0.32 N·m rated torque / 1.1 N·m maximum torque | 3,000 rpm rated speed / 6,000 rpm maximum speed | 0.8 A rated current / 2.5 A maximum current | 22‑bit absolute encoder (4,194,304 ppr) | 0.00000777 kg·m² rotor inertia | 40 × 40 mm flange mounting | IP65 protection | 0°C to +40°C operating temperature

Key Features:

• Original New Mitsubishi HG-KR13 servo motor

• 100 W (0.1 kW) rated output power

• 0.32 N·m rated torque, 1.1 N·m maximum torque

• 3,000 rpm rated speed, 6,000 rpm maximum speed

• 0.8 A rated current, 2.5 A maximum current

• Built-in 22-bit absolute encoder (4,194,304 pulses/revolution)

• Straight shaft design for secure coupling

• Low-inertia rotor (0.00000777 kg·m²) for rapid response

• 40 mm × 40 mm flange mounting

• IP65 protection against dust and water ingress

• Natural cooling, no external fan required

• Compatible with MR-J4 series servo amplifiers

Applications:

• High-frequency positioning in small pick-and-place and assembly automation

• Semiconductor manufacturing and electronics assembly

• Medical equipment and laboratory automation

• Small packaging machinery and labeling equipment

• High-speed positioning in X-Y tables and automated production lines

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSERVO J4 series servo amplifiers including MR-J4-10A (pulse train interface), MR-J4-10B (SSCNET III/H interface), MR-J4-10GF, and MR-J4W□-□□B multi-axis amplifiers (100 W rating)

• For absolute position retention during power-off, an MR-BAT6V1SET battery backup unit is required

• Suitable for use with MR-J3ENCBL2M-A1 encoder cable (2 m) and MR-PWS1CBL2M-A1 power cable (2 m)

Related Products:

• MR-J4-10B – 100 W servo amplifier with SSCNET III/H interface

• MR-J4-10A – 100 W servo amplifier with pulse train interface

• HG-KR23 – 200 W version (higher power)

• HG-KR43 – 400 W version (higher power)

• MR-BAT6V1SET – Battery for absolute encoder backup

• MR-J3ENCBL2M-A1 – Encoder cable, 2 m (standard bending life)

• MR-PWS1CBL2M-A1 – Power cable, 2 m
