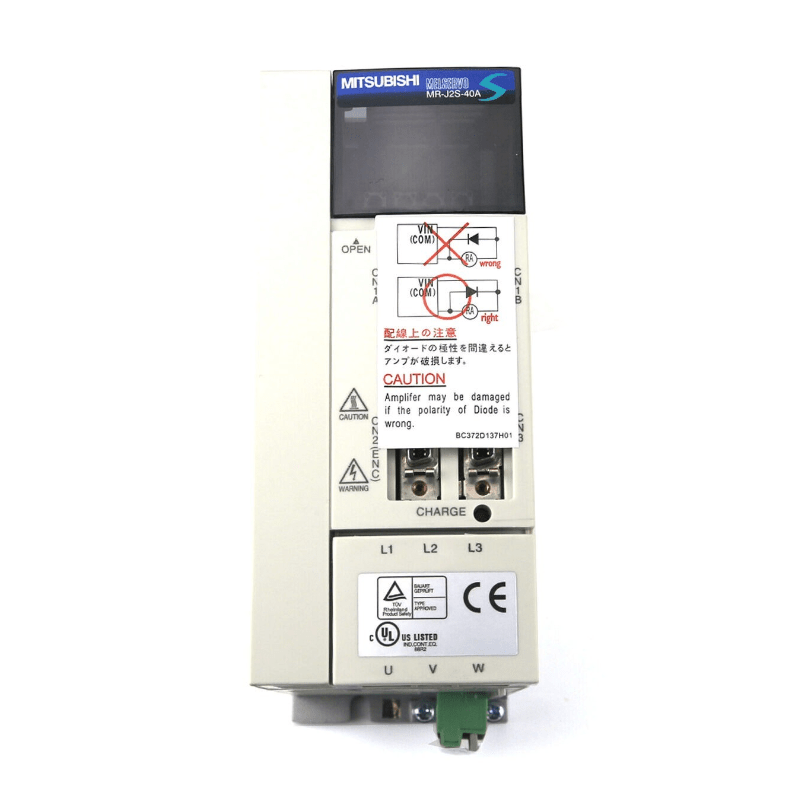

MR-J2S-40A MELSERVO-J2S 400W AC Servo Amplifier | Mitsubishi

The Original New Mitsubishi MR-J2S-40A is a universal interface AC servo amplifier from the MELSERVO J2-Super series, designed for precise motion control in industrial automation systems. Rated at 400W (0.4kW) with 200–230V AC single-phase or three-phase input, it delivers reliable performance for a wide range of positioning applications. The amplifier features a sine-wave PWM control method with speed and torque control modes, achieving a speed loop frequency response of 550Hz or higher for high-speed positioning. Built-in dynamic brake, natural cooling, and a 17-bit absolute/incremental encoder interface (131,072 pulses/revolution) provide a robust motion control solution. This product is discontinued and available as a spare part for maintaining existing MELSERVO J2S-based systems. For new installations, the recommended replacement is the MR-J4-40A-RJ.

Core Engineering Highlights:
400W (0.4kW) rated output | 2.8A rated output current | 200–230V AC single-phase or three-phase input | Sine-wave PWM control / Current control method | Speed, torque, and position control modes | ≥550 Hz speed loop frequency response | 17-bit absolute/incremental encoder (131,072 pulses/revolution) | Built-in dynamic brake | Natural cooling (fanless) | 9 digital inputs + 3 relay outputs + 2 analog inputs | 70 × 168 × 135 mm dimensions | 1.13 kg weight | 0°C to +55°C operating temperature | IP20 protection rating

Key Features:

• Original New Mitsubishi MR-J2S-40A amplifier

• 400W (0.4kW) rated output power

• 2.8A rated output current

• 200–230V AC single-phase or three-phase input (170–253V AC permissible range for three-phase; 207–253V AC for single-phase 230V)

• Sine-wave PWM control method / Current control method

• Position, speed, and torque control modes (selectable)

• Speed loop frequency response: ≥550 Hz for high-speed positioning

• 17-bit absolute/incremental encoder feedback (131,072 pulses/revolution)

• Built-in dynamic brake

• Natural convection cooling (fanless)

• 9 digital inputs (24V DC, sink/source): EMG, LSP, LSN, SON, RES, PC/ST1/RS2, TL/ST2/RS1, SP2

• 3 digital outputs (relay contact type): ALM, ZSP, TLC/VLC

• 2 analog inputs: 1 × 0–10V DC (TLA/TC), 1 × –10 to +10V DC (VC/VLA)

• Communication: RS-232C, RS-422 (general-purpose interface)

• Compact 70 mm width for space-saving panel mounting

• IP20 protection rating

• Discontinued product available as a spare part

Applications:

• High-speed positioning for pick-and-place robotics and assembly systems

• CNC machine tools and automated production lines

• Semiconductor and electronics manufacturing equipment

• Packaging machinery and labeling equipment

• General factory automation and OEM machinery

• Legacy system maintenance and spare part replacement for MELSERVO J2S-based configurations

Technical Specifications:

Position Control Mode:

Speed Control Mode:

Torque Control Mode:

Environmental & Physical:

Motor Compatibility:

• Compatible with Mitsubishi HC-KFS series (low inertia) and HC-MFS series (medium inertia) servo motors

• Recommended matching motors: HC-KFS43 (400W, 17-bit encoder), HC-MFS43

• Supports 17-bit absolute/incremental encoder feedback

• In absolute encoder mode, an external battery (MR-BAT6V1SET) is required for position retention during power-off

System Compatibility:

• Universal interface supports pulse train (differential line driver or open-collector) and analog voltage commands

• Parameter setting and monitoring via MR Configurator software using RS-422/RS-232C communication

• For detailed wiring, connector pinout, and parameter settings, refer to the MR-J2S-A Instruction Manual

Product Status:
Discontinued – Production of the MR-J2S series was discontinued in August 2015. This product remains available as a spare part for maintaining existing MELSERVO J2S-based systems while supplies last. For new installations, the recommended replacement is the MR-J4-40A-RJ.

Recommended Replacement:

• MR-J4-40A-RJ: MELSERVO-J4 series 400W servo amplifier with built-in dynamic brake, built-in regenerative resistor, and STO safety function. Supports 22-bit absolute encoder feedback with advanced vibration suppression control II and one-touch auto-tuning. The MR-J2 Super Renewal Tool allows staged migration while retaining existing HC-KFS/HC-MFS motors and existing wiring where applicable.

Related Products:

• HC-KFS43 – 400W low-inertia servo motor with 17-bit absolute encoder

• HC-MFS43 – 400W medium-inertia servo motor with 17-bit absolute encoder

• MR-J4-40A-RJ – Recommended replacement (MELSERVO-J4 series)

• MR-BAT6V1SET – Battery for absolute encoder (for absolute position retention)

• MR-J3ENCBL2M-A1 – Encoder cable, 2m (standard bending life)

• MR-PWS1CBL2M-A1 – Power cable, 2m

• MR Configurator – PC software for parameter setting, monitoring, and tuning
