MR-J3ENSCBL5M-L Encoder Feedback Cable 5m IP67 | Mitsubishi

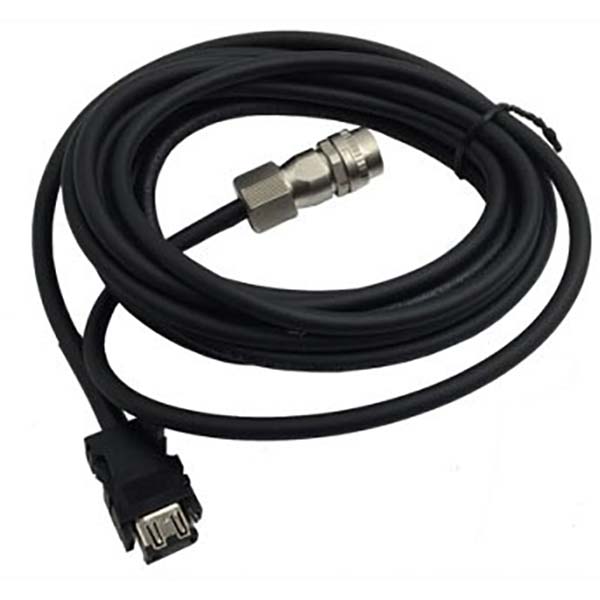

The Original New Mitsubishi MR-J3ENSCBL5M-L is a 5-metre fully shielded encoder feedback cable (cordset) from the MELSERVO-J3 series, designed to transmit precise position and speed data between a servo motor and its amplifier with minimal electromagnetic interference. Equipped with a junction connector on the motor side and a servo amplifier connector on the drive side, this standard-flex cable provides reliable signal integrity for industrial motion control applications. Its IP67 protection rating ensures resistance to dust and water ingress, making it suitable for demanding factory environments. The cable is compatible with a broad range of Mitsubishi MELSERVO servo motor series, including HK-ST, HG-KR, HG-MR, HG-SR, HG-RR, HG-UR, and HF-series motors.

Core Engineering Highlights:
5 m cable length | Fully shielded construction | IP67 protection rating | Standard flex flexibility | Junction connector + servo amplifier connector | 0°C to +55°C operating temperature | –20°C to +75°C storage temperature | Approx. 0.26 kg

Key Features:

• Original New Mitsubishi MR-J3ENSCBL5M-L encoder cable

• 5 m fully shielded encoder feedback cable

• Junction connector on the motor side and servo amplifier connector on the drive side

• Fully shielded for low-noise signal transmission and electromagnetic interference protection

• IP67 ingress protection for dust-tight and water-resistant operation

• Standard flex flexibility for efficient routing in control cabinets and machinery

• Compatible with a wide range of Mitsubishi MELSERVO servo motor series

• Operating ambient temperature: 0°C to +55°C

• Storage ambient temperature: –20°C to +75°C

Applications:

• Encoder signal transmission in MELSERVO MR-J3 series servo systems

• Factory automation and precision motion control equipment

• CNC machine tools and automated assembly lines

• Packaging machinery and material handling systems

• Robotics and pick-and-place equipment

• Semiconductor manufacturing and inspection equipment

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSERVO-J3 series servo systems

• Compatible servo motor series include: HK-ST, HG-KR, HG-MR, HG-SR, HG-RR, HG-UR, HF-KP, HF-MP, HF-SP, HC-LP, HC-RP, HC-UP, HA-LP, HF-JP, HG-KN, HG-SN, HF-KN, HG-KNS, HG-SNS

• Also compatible with HG-JR series servo motors

• For absolute position retention during power-off, an external battery (MR-BAT6V1SET) is required

• Suitable for use with MR-J3 series and MR-J4 series (in J3 compatibility mode) servo amplifiers

Related Products:

• MR-J3ENSCBL2M-L – 2 m version (shorter length)

• MR-J3ENSCBL3M-L – 3 m version (intermediate length)

• MR-J3ENSCBL10M-L – 10 m version (longer length)

• MR-J3ENSCBL5M-H – 5 m highly bend-resistant version for dynamic applications

• MR-PWS1CBL2M-A1 – Power cable, 2 m (complementary)

• MR-BAT6V1SET – Battery for absolute encoder backup

• MR-J3 series servo amplifiers – Compatible amplifier family
