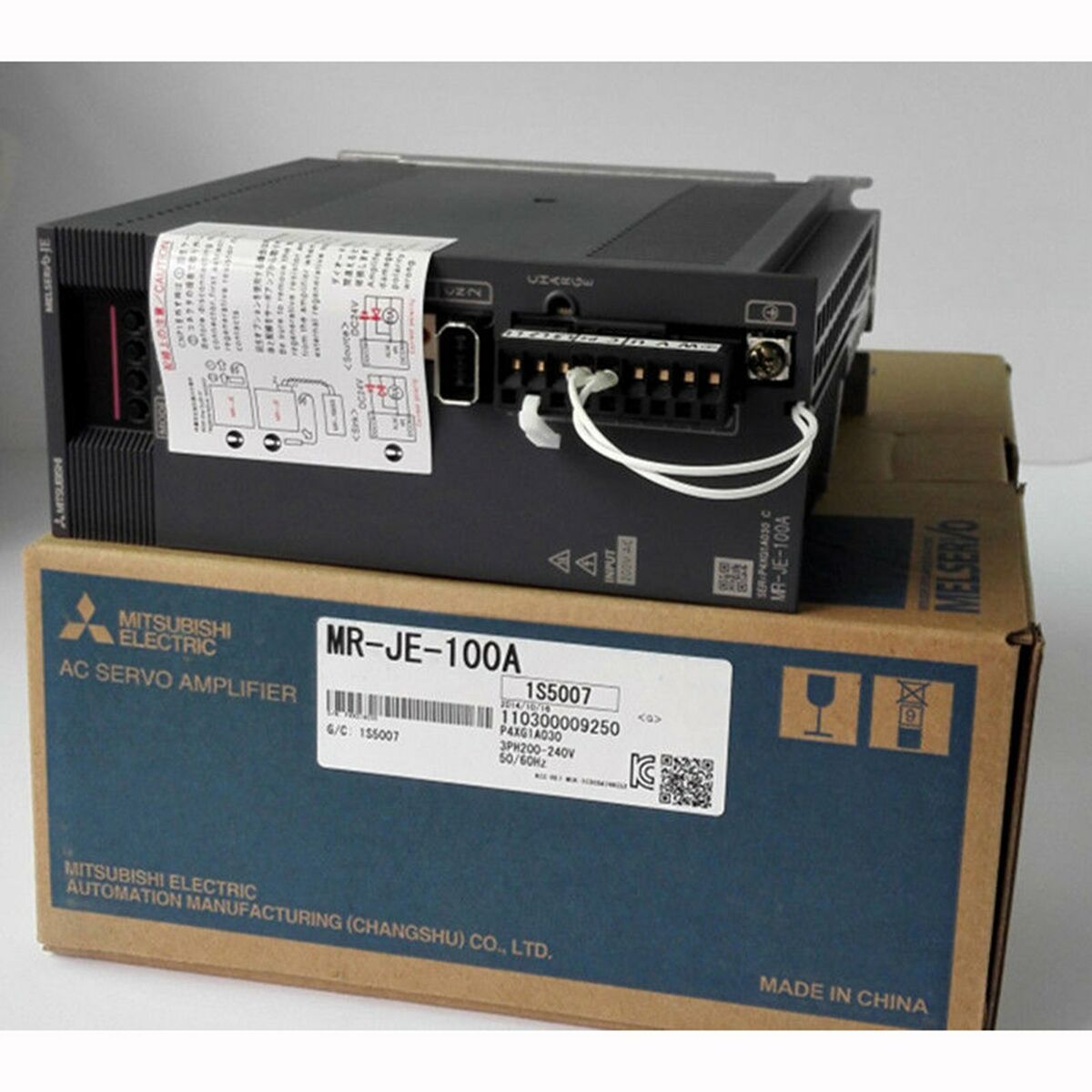

Mitsubishi MR-JE-100A MELSERVO-JE 1kW General-Purpose AC Servo Amplifier

Mitsubishi Electric MELSERVO-JE MR-JE-100A is a general-purpose AC servo amplifier for high-precision motion control in industrial automation and OEM systems. Rated output 1 kW (1,000 W) at 200-240 V AC, single-phase or three-phase input. Supports position, speed, and torque control modes with 17‑bit absolute encoder feedback (131,072 pulses/revolution). Built‑in dynamic brake, built‑in regenerative resistor, and advanced one‑touch auto‑tuning simplify setup and reduce commissioning time. 4 Mpps maximum input pulse frequency (differential receiver). Suitable for a wide range of automation applications requiring precise speed, torque, and position control.

Applications:

• CNC machine tools and precision machining equipment

• Automated assembly lines and pick‑and‑place robotics

• Packaging machinery, labeling systems and material handling

• Conveyor systems and factory automation equipment

• OEM machinery requiring integrated positioning without a separate motion controller

Core Specifications:

• Rated output power: 1 kW (1,000 W)

• Rated output current: 6 A

• Input voltage: Single‑phase or 3‑phase 200‑240 V AC, 50/60 Hz

• Permissible voltage fluctuation: 170‑264 V AC

• Control methods: Position, speed, torque control (switchable)

• Speed frequency response: 2.0 kHz

• Control interface: Pulse train (differential line driver/open‑collector) + analog input

• Encoder feedback: 17‑bit absolute/incremental encoder (131,072 pulses/revolution)

• Built‑in dynamic brake: Yes

• Built‑in regenerative resistor: Yes (tolerable regenerative power 20 W)

• Communication functions: USB (MR Configurator2 compatible), RS‑422/RS‑485 (1 : n communication up to 32 axes)

• Maximum input pulse frequency (differential receiver): 4 Mpps

• Maximum input pulse frequency (open‑collector): 200 kpps

• Electronic gear: A/B multiplication (A: 1 to 16,777,215, B: 1 to 16,777,215, 1/10 < A/B < 4003)

• Encoder output pulse: A/B/Z‑phase pulse compatible

• Analog monitor: 5 channels

• Positioning functions: Point table method, program method, simple cam, encoder follow, mark detection

• Positioning complete width: 3 pulses to ±65,535 pulses (command pulse unit)

• Torque limit: Parameter setting or external analog input (0 V DC to +10 V DC / maximum torque)

• Speed control range: 1:2000 (analog speed command), 1:5000 (internal speed command)

• Analog speed command input: 0 V DC to ±10 V DC / rated speed (speed at 10 V changeable with [Pr. PC12])

• Torque control mode: Analog torque command input 0 V DC to ±8 V DC / maximum torque (input impedance 10 kΩ to 12 kΩ)

• Speed limit in torque control: Parameter setting or external analog input (0 V DC to ±10 V DC / rated speed)

Advanced Specifications:

• Control method: Sine‑wave PWM control, current control method

• Tolerable regenerative power (built‑in regenerative resistor): 20 W

• Dynamic brake: Built‑in (Note 4, 8)

• Overload capacity: electronic thermal protection (150% of rated for short periods)

• Protective functions: Overcurrent shut‑off, regenerative overvoltage shut‑off, overload shut‑off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, excessive error protection

• Servo functions: Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one‑touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function

• Control modes supported: Position control, speed control, torque control, fully closed‑loop control (with external encoder)

• Absolute position detection: Yes (with MR‑BAT6V1SET battery, sold separately)

Physical & Environmental Specifications:

• Cooling method: Natural cooling (fanless)

• Enclosure rating: IP20

• Dimensions (W × H × D): 70 mm × 168 mm × 185 mm

• Weight: approx. 1.5 kg – 1.7 kg

• Ambient operating temperature: 0 °C … 55 °C

• Storage temperature: –20 °C … 65 °C

• Humidity: 10 % … 90 % (non‑condensing)

• Altitude: ≤ 1,000 m

• Certifications: CE, UL, cUL, RoHS

Motor Compatibility:

• Compatible with Mitsubishi Electric HG‑KN series (low inertia) and HG‑SN series (medium inertia) servo motors

• Recommended matching motors: HG‑SN102J (medium inertia, 1 kW, 17‑bit absolute encoder), HG‑KN102J‑S100, HG‑KN102BJ‑S100

• For medium‑inertia applications requiring higher load capacity, select HG‑SN series

System Integration:

• This amplifier belongs to the Mitsubishi Electric MELSERVO‑JE series.

• Universal interface supports pulse train (differential line driver or open‑collector) and analog voltage commands.

• USB port (mini‑B) connects directly to a PC for parameter setting, tuning, and diagnostics using MR Configurator2 software.

• RS‑422/RS‑485 serial communication enables 1 : n connection of up to 32 axes to a host controller.

• Built‑in positioning function allows point table‑based or program‑based positioning without a separate positioning module, simplifying system architecture and reducing cost.

• For absolute position retention during power‑off, install an MR‑BAT6V1SET battery backup unit.

• For detailed installation, wiring, connector pinout, and parameter settings, refer to the MR‑JE‑_A Instruction Manual.

Related Products:

• HG‑SN102J – 1 kW medium‑inertia servo motor with 17‑bit absolute encoder

• HG‑KN102J‑S100 – 1 kW low‑inertia servo motor with 17‑bit absolute encoder, straight shaft, IP65

• MR‑BAT6V1SET – Battery for absolute encoder (for absolute position retention)

• MR‑J3ENCBL2M‑A1 – Encoder cable, 2 m (standard bending life)

• MR‑PWS1CBL2M‑A1 – Power cable, 2 m

• MR Configurator2 – PC software for parameter setting, tuning, and diagnostics
