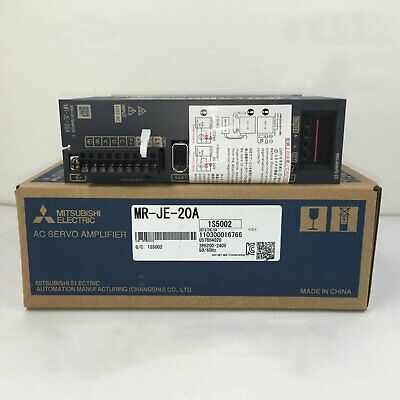

Mitsubishi MR-JE-20A MELSERVO-JE 200W AC Servo Amplifier 200W 1‑Phase/3‑Phase 200‑240V

Mitsubishi Electric MELSERVO‑JE MR‑JE‑20A is a general‑purpose AC servo amplifier for precise motion control in industrial automation. Rated output 200W (0.2kW) at 200‑240V AC, single‑phase or three‑phase input. Supports position, speed, and torque control modes with high‑resolution 17‑bit absolute encoder feedback (131,072 pulses/revolution). Built‑in dynamic brake, 2.0 kHz speed frequency response, and one‑touch tuning for simplified setup. Advanced vibration suppression control automatically detects and suppresses mechanical resonance between 10‑500Hz. Designed for small‑to‑mid‑size precision automation, pick‑and‑place, packaging, conveyor positioning, and laboratory automation equipment.

Applications:

• Automated assembly systems and pick‑and‑place stations

• Packaging machinery, labeling machines, and form‑fill‑seal equipment

• Conveyor positioning and material handling systems

• Laboratory automation and precision instruments

• Small CNC routers, engraving machines, and X‑Y tables

• Textile machinery and printing equipment

• Food processing machinery and pharmaceutical packaging

Core Specifications:

Advanced Specifications:

Position Control

• Maximum input pulse frequency: 4 Mpps (differential line driver), 200 kpps (open‑collector)

• Electronic gear: A/B multiplication (A = 1‑16,777,215; B = 1‑16,777,215; 1/10 < A/B < 4000)

• Position loop gain: 1‑1000 1/s

Speed Control

• Speed control range: 1:2000 (analog speed command), 1:5000 (internal speed command)

• Analog speed command input: 0‑10V DC / rated speed

• Speed fluctuation rate (load change 0‑100%): ≤ ±0.01%

Torque Control

• Analog torque command input: 0‑±8V DC / maximum torque (input impedance 10‑12kΩ)

• Speed limit: parameter setting or external analog input (0‑±10V DC / rated speed)

I/O Summary

• Digital inputs: 8 (24V DC, sink/source configurable)

• Digital outputs: 3 (relay contact type: ALM, ZSP, TLC/VLC)

• Analog inputs: 2 (0‑10V DC for TLA/TC, –10 to +10V DC for VC/VLA)

• Communication ports: USB (mini‑B, MR Configurator2 compatible), RS‑422/RS‑485 (Modbus‑RTU)

• Encoder output pulse: ABZ phase output supported

• Analog monitor: 2 channels

Motor Compatibility:

• Compatible servo motors: HG‑KN13J (100W), HG‑KN23J (200W), HG‑KN43J (400W), HG‑KN73J (750W)

• Recommended mating motor: HG‑KN23J‑S100 (200W, 0.64 N·m rated torque)

• Also compatible with HG‑SN23J‑S100 (medium‑inertia series)

• Supports 17‑bit incremental encoder (absolute mode requires MR‑JE‑B series)

Protection Functions:
Overcurrent shut‑off, regenerative overvoltage shut‑off, overload shut‑off (electronic thermal), servo motor overheat protection, encoder fault protection, undervoltage protection, overspeed protection, excessive error protection.

Certifications & Compliance:
CE (EMC, LVD), UL/cUL, UKCA, RoHS.

System Integration:

• This amplifier belongs to the Mitsubishi Electric MELSERVO‑JE series.

• Panel mounting with M5 screws via 6.3mm slotted holes.

• Supports one‑touch tuning: automatic servo gain adjustment without PC via front panel pushbutton.

• Vibration suppression control and adaptive filter automatically detect and suppress mechanical resonance (10‑500Hz).

• USB port connects to PC for parameter setting, operation monitoring and diagnostics using MR Configurator2 software (free download from Mitsubishi Electric website).

• RS‑422/RS‑485 communication supports Modbus‑RTU protocol for integration with PLCs, HMIs, and SCADA systems.

• Compatible with both sink and source (PNP/NPN) wiring for command pulse inputs and digital I/O.

• One‑touch tuning can be performed without a PC via the front panel operation button.

Related Products:

• HG‑KN23J‑S100 – 200W low‑inertia servo motor (recommended mating motor)

• HG‑SN23J‑S100 – 200W medium‑inertia servo motor

• MR‑J3ENCBL5M‑A1‑L – 5m encoder feedback cable (standard bending life)

• MR‑PWS1CBL2M‑A1‑L – 2m motor power cable (standard bending life)

• MR‑J3CN1 – CN1 connector kit (I/O signals)

• FR‑CB20□ – Parameter unit connection cable (for MR‑PU07 parameter unit)

• MR Configurator2 – PC setup software for parameter management and tuning
