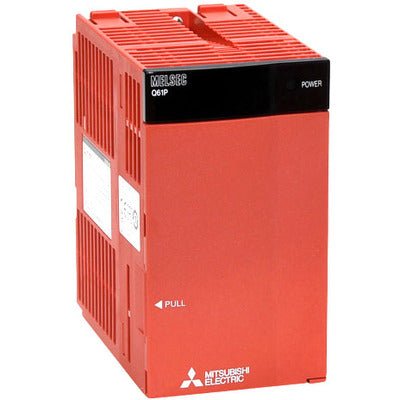

Mitsubishi Q61P MELSEC-Q Series Power Supply Module 6A 5V DC

Mitsubishi Q61P is a power supply module for the MELSEC-Q series PLC system. Converts 100‑240 V AC input to 5 V DC output rated at 6 A, supplying power to the backplane and all connected modules. Once plugged into the base unit, all Q series modules on the same backplane are powered from this unit. Designed for main base units and expansion base units in industrial automation systems.

Applications:

• Rack power supply for MELSEC-Q series PLC systems

• Main base unit and expansion base unit power distribution

• Industrial automation control panels

• Factory automation and machine control systems

Technical Specifications:

Core Specifications

• Product type: MELSEC-Q series power supply module (normal type)

• Input voltage: 100‑240 V AC (‑15% to +10%)

• Input frequency: 50/60 Hz ±5%

• Output voltage: 5 V DC

• Output current: 6 A

• Max. input apparent power: 105 VA

• Efficiency: 70% or higher

• Inrush current limiting: Built‑in

• Overcurrent protection: Built‑in

• Overvoltage protection: Built‑in

• Mounting: Base unit (main base or extension base)

• Cooling method: Natural air cooling

• Protection rating: IP20

Physical Specifications

• Dimensions (H × W × D): 98 mm × 55.2 mm × 90 mm

• Weight: 0.40 kg

• Connection: screw terminal block (M3.5 screws)

Environmental Specifications

• Operating temperature: 0 °C … 55 °C

• Storage temperature: –20 °C … 75 °C

• Operating humidity: 10% … 90% RH (non‑condensing)

• Storage humidity: 10% … 90% RH (non‑condensing)

• Altitude: 2,000 m max.

• Vibration resistance: 5 … 8.4 Hz: 3.5 mm amplitude, 8.4 … 150 Hz: 9.8 m/s²

• Shock resistance: 147 m/s² (15 G), 3 times each in X, Y, Z directions

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• Q62P – MELSEC-Q series power supply, 5 V DC / 3 A + 24 V DC / 0.6 A

• Q63P – MELSEC-Q series power supply, 24 V DC input type

• Q64P – MELSEC-Q series power supply, 5 V DC / 8.5 A higher capacity

• Q33B – Main base unit, 3 slots

• Q35B – Main base unit, 5 slots

• Q38B – Main base unit, 8 slots

• Q312B – Main base unit, 12 slots
