Q68ADI 8-Channel Analog Input Module Current 0-20mA | Mitsubishi

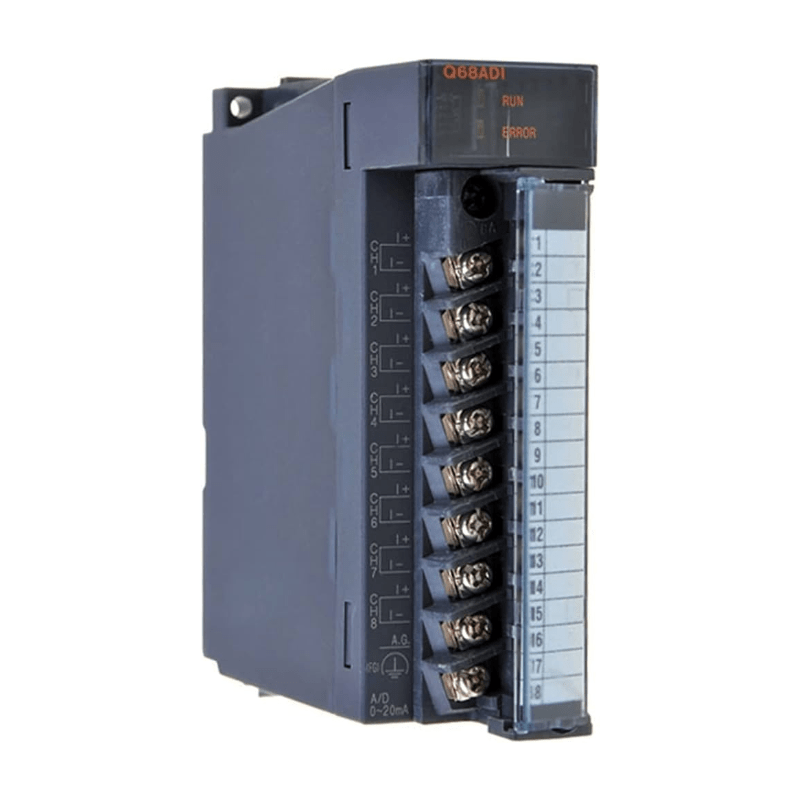

The Original New Mitsubishi Q68ADI is an 8-channel analog input module from the MELSEC-Q series, designed for high-precision current signal acquisition in industrial automation systems. It accepts 0–20 mA DC and 4–20 mA DC current inputs with a 16-bit signed binary digital output, providing reliable conversion of analog process signals from transmitters, sensors, and field instruments into digital values for the PLC. Part of the MELSEC-Q modular platform, the Q68ADI integrates directly into Q series base units and is compatible with QnU, QnH, and other Q series CPU modules. Its compact 27.4 mm width and 18-point screw terminal block make it suitable for space-efficient control panel installations.

Core Engineering Highlights:
8 analog input channels (current) | Input range: 0–20 mA DC / 4–20 mA DC | 16-bit signed binary digital output | Resolution modes: 0–4000, –4000–4000, 0–12000, –12000–12000 | Conversion speed: 80 µs per channel | Input resistance: 250 Ω | Photocoupler isolation between I/O terminals and PLC power supply | 18-point screw terminal block | Occupied I/O points: 16 (Intelligent 16 points)

Key Features:

• Original New Mitsubishi Q68ADI module

• 8 analog input channels for current signals (0–20 mA DC, 4–20 mA DC)

• 16-bit signed binary digital output for high-precision measurement

• Multiple resolution modes: 0–4000 (normal), 0–12000 / –12000–12000 (high resolution)

• Fast conversion speed: 80 µs per channel

• 250 Ω input resistance for stable current loop measurement

• Photocoupler insulation between I/O terminals and PLC power supply

• 18-point screw terminal block for field wiring

• Occupied I/O points: 16 (Intelligent 16 points assignment)

• E²PROM write count: max. 100,000 times

• Compact 27.4 mm width for space-saving installation

• DIN rail mounting via Q series base unit

• Suitable for 2-wire transmitter connection (4–20 mA)

Applications:

• Process variable monitoring (pressure, flow, level, temperature) via 4–20 mA transmitters

• Current loop signal acquisition in industrial automation systems

• Factory automation and process control systems

• Data acquisition for packaging, material handling, and manufacturing equipment

• Integration with 2-wire transmitters and current-output sensors

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series base units (main base and extension base)

• Compatible with Q series CPU modules including QnU, QnH, QnPH, QnPRH, and Q00J/Q00/Q01 series

• Installs in any Q series I/O slot via the Q series backplane bus

• Programming and configuration via GX Works2 or GX Developer engineering software

Related Products:

• Q68ADV – 8-channel analog input module (voltage input)

• Q64AD – 4-channel analog input module (voltage/current)

• Q68DAI – 8-channel analog output module (current output)

• Q68DAV – 8-channel analog output module (voltage output)

• R60ADI8 – Successor module for MELSEC iQ-R series (replacement recommendation)

• Q61P – Power supply module for MELSEC-Q base units
