Q68ADV 8-Channel Analog Input Module Voltage 16-Bit | Mitsubishi Electric

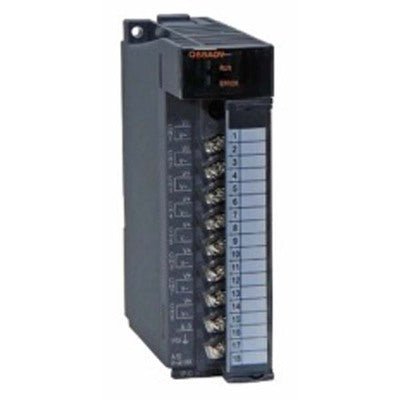

The Original New Mitsubishi Electric Q68ADV is an 8-channel analog input module for the MELSEC-Q series programmable controllers. It accepts voltage signals from -10 to +10 V DC, with selectable input ranges including 0-10 V, 0-5 V, and 1-5 V. The module provides 16-bit signed binary resolution with an A/D conversion speed of 80 µs per channel, making it suitable for precise process monitoring and machine control applications. It occupies 16 I/O points on the PLC rack and connects via an 18-point screw terminal block. Part of the MELSEC-Q QnU series, it is designed for industrial automation systems requiring high-speed, high-accuracy analog signal acquisition.

Core Engineering Highlights:
8 analog input channels (voltage) | -10 to +10 V DC input range (selectable 0-10 V, 0-5 V, 1-5 V) | 16-bit signed binary resolution (-32768 to 32767) | 80 µs per channel conversion speed | ±0.1% accuracy at 25°C | 16 occupied I/O points | 18-point screw terminal block | 0.64 A @ 5 V DC current consumption | 98 × 27.4 × 90 mm | 0.19 kg

Key Features:

• Original New Mitsubishi Electric Q68ADV module

• 8 analog input channels for voltage signals

• Selectable input ranges: -10 to +10 V DC, 0 to 10 V DC, 0 to 5 V DC, 1 to 5 V DC

• 16-bit signed binary digital output (-32768 to 32767)

• High-speed A/D conversion: 80 µs per channel

• Accuracy: ±0.1% at 25°C ambient temperature

• Resolution up to 16000 steps (0.625 mV)

• 18-point screw terminal block for field wiring

• Occupies 16 I/O points (1 slot) on the PLC rack

• Compact dimensions: 98 × 27.4 × 90 mm

• Lightweight design: 0.19 kg

• RoHS compliant, CE and UL/cUL approved

Applications:

• Process automation and control

• Machine control and monitoring

• Precise measurement acquisition

• Analog signal conversion for sensors and transmitters

• Factory automation systems requiring high-speed analog input

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC-Q series programmable controllers. Module compatibility should be verified before installation.

• Compatible with MELSEC-Q series CPU modules (QnU series and other compatible Q series CPUs).

• Configuration and programming performed using GX Works2 or GX Developer engineering software.

• Requires dedicated buffer-memory commands (FROM/TO) for data exchange with the CPU.

Related Products:

• Q68ADI – 8-channel analog input module (current input)

• Q64AD – 4-channel analog input module (voltage/current)

• Q68AD-G – 8-channel channel-isolated analog input module

• Q64ADH – 4-channel high-speed analog input module (20 µs/channel)

• R60ADV8 – Successor model for MELSEC iQ-R series (8-channel analog voltage input)

• Q68DAV – 8-channel analog output module (voltage)

• Q68DAI – 8-channel analog output module (current)
