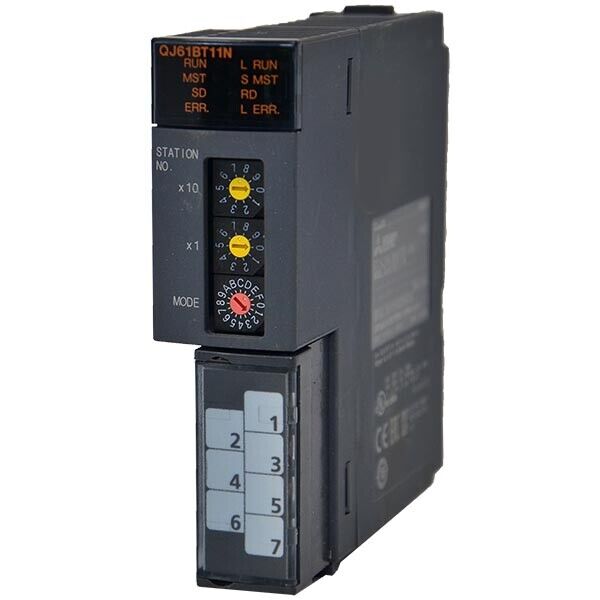

QJ61BT11N CC-Link Master/Local Module Ver.2 10Mbps | Mitsubishi

The Original New Mitsubishi QJ61BT11N is a CC-Link master/local module for the MELSEC-Q series PLC system, designed to provide high-speed, deterministic fieldbus communication for industrial automation applications. Supporting both CC-Link Ver. 1 and Ver. 2, this module can operate as either a master station or a local station, offering flexible network configuration. It enables high-speed transmission of bit data (ON/OFF status) and word data (analog values) up to 10 Mbps, with a maximum of 8,192 remote I/O points and 2,048 remote register points per system in Ver. 2 mode. The module features broadcast polling communication, RS-485 bus transmission, and independent cyclic and transient transmission paths, ensuring link scan time is not affected by message communication. With a 0.46 A current consumption and compact 98 × 27.4 × 90 mm dimensions, it is suitable for factory automation, process control, and distributed I/O applications.

Core Engineering Highlights:
CC-Link Ver. 1 and Ver. 2 support | Master station or local station operation | Selectable communication speed: 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps | Up to 8,192 remote I/O points (RX, RY) in Ver. 2 | Up to 2,048 remote register points (RWw, RWr) in Ver. 2 | Maximum 64 connected stations (master) | Bus (RS-485) transmission path | 32 occupied I/O points | 0.46 A @ 5V DC current consumption | 98 × 27.4 × 90 mm dimensions | 0.12 kg weight | 0°C to +55°C operating temperature

Key Features:

• Original New Mitsubishi QJ61BT11N module

• Supports CC-Link Ver. 1 and Ver. 2 protocols

• Can be used as master station or local station

• Selectable transmission speed: 156 kbps to 10 Mbps

• Maximum 64 connected stations (master station, remote I/O only)

• 32 occupied I/O points (intelligent 32 points)

• Broadcast polling communication method

• RS-485 bus transmission path

• Cyclic transmission kept consistent even during saturated message communication

• Transient transmission for occasional message communication

• Compact 27.4 mm width for space-saving installation

• DIN rail mounting on Q series base units

• CE, UL/cUL compliant

• Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA

• RoHS compliant

Applications:

• Distributed I/O control in factory automation systems

• Multi-vendor device networking via CC-Link fieldbus

• Material handling and conveyor systems

• Packaging machinery and assembly lines

• Automotive manufacturing and robotic cells

• Process control and monitoring

• High-speed data exchange between PLC and remote I/O stations

• Legacy system upgrades and spare part replacement for Q series configurations

Technical Specifications:

Maximum Link Points Per System (Ver. 2):

Link Points Per Station (Ver. 2) – Expanded Cyclic Setting:

Maximum Number of Connected Stations (Master Station): 64

Total Distance / Speed (Ver. 1.10): 1,200 m / 156 kbps; 900 m / 625 kbps; 400 m / 2.5 Mbps; 160 m / 5 Mbps; 100 m / 10 Mbps (up to 13.2 km with repeaters)

Occupied I/O Points: 32 points (I/O assignment: Intelligent 32 points)

Internal Current Consumption: 0.46 A @ 5V DC

Dimensions (H × W × D): 98 × 27.4 × 90 mm

Weight: Approx. 0.12 kg

Mounting: Q series base unit (1 slot)

Operating Temperature: 0°C to 55°C

Storage Temperature: –20°C to 75°C

Certifications: CE, UL/cUL

Shipping Approvals: ABS, BV, DNV GL, LR, NK, RINA

RoHS: COMPLIANT

Country of Origin: JP (Japan)

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series CPU modules (Q00J, Q00, Q01, Qn, QnH, QnPH, QnPRH, QnU series)

• Installs in Q series main base unit or expansion base unit (1 slot)

• Supports CC-Link remote I/O stations, remote device stations, and intelligent device stations

• Configuration via GX Works2 or GX Developer

• Dedicated PLC instructions for data transmission

Related Products:

• QJ61BT11 – Predecessor version (Function Version A)

• RJ61BT11 – Successor model for MELSEC iQ-R series

• QJ71E71-100 – Ethernet interface module for Q series

• QJ71MT91 – MODBUS/TCP interface module for Q series

• QJ71C24N-R2 – Serial communication module (2 × RS-232)

• CC-Link dedicated cable – Ver. 1.10 compatible shielded twisted-pair cable
