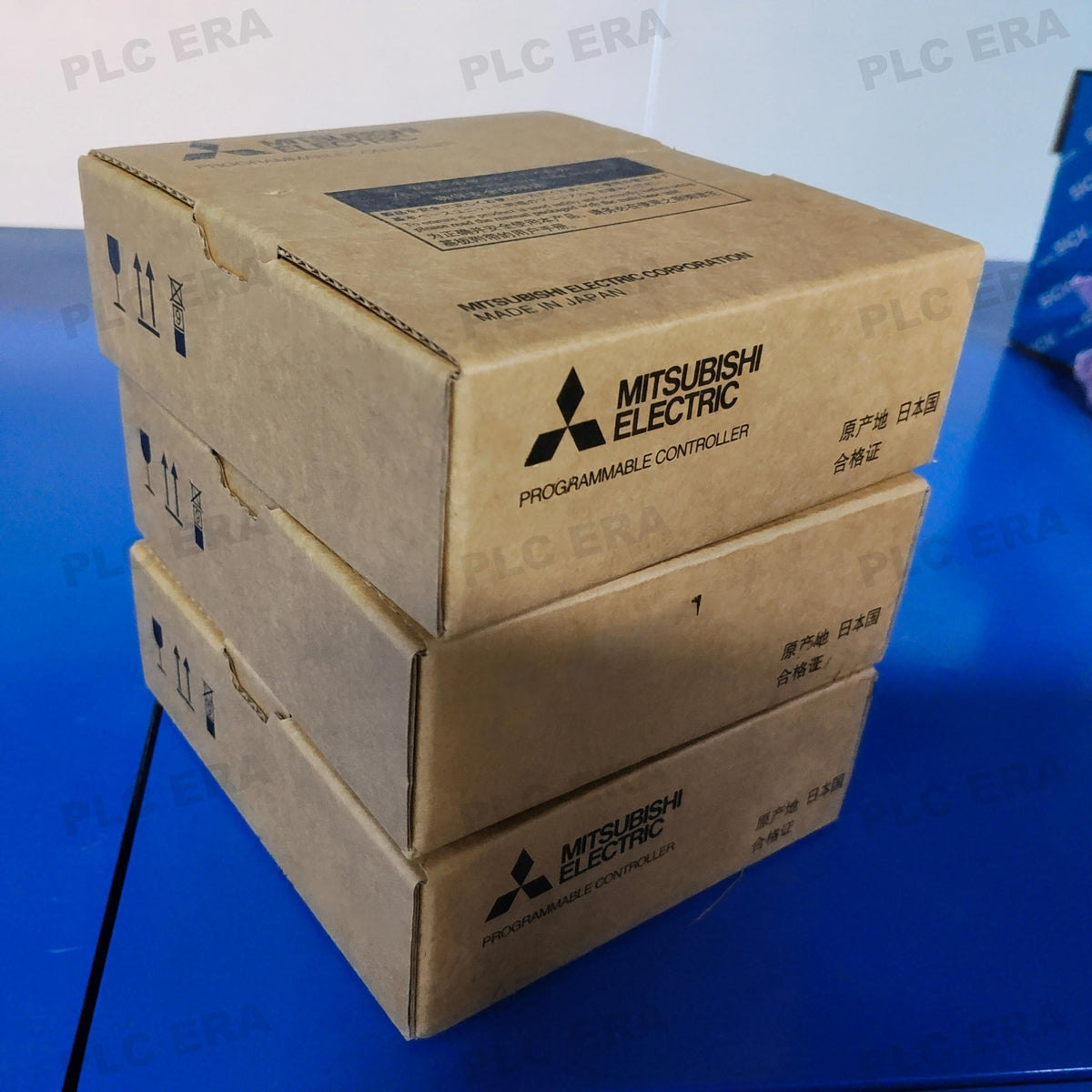

QJ71E71-100 Ethernet Interface Module 10/100Mbps RJ45 | Mitsubishi

The Original New Mitsubishi QJ71E71-100 is an Ethernet interface module for the MELSEC-Q series PLC system, designed to enable seamless connectivity to control systems, host computers, and higher-level networks via 10BASE-T/100BASE-TX. Supporting up to 16 simultaneous connections, this module facilitates high-speed data exchange with up to 16 external devices using TCP/IP and UDP/IP protocols. It features a fixed buffer of 1K words × 16 and a random access buffer of 6K words × 1 for flexible data handling. With an RJ45 connector, 0.50 A current consumption, and compact 98 × 27.4 × 90 mm dimensions, the QJ71E71-100 is a reliable solution for factory automation, process control, and machine networking applications.

Core Engineering Highlights:
10/100 Mbps auto-negotiation (10BASE-T/100BASE-TX) | RJ45 connector | 16 simultaneous connections | 1K words × 16 fixed buffer + 6K words × 1 random access buffer | Email transmission/reception with attachments | 32 occupied I/O points | 0.50 A @ 5V DC current consumption | 98 × 27.4 × 90 mm dimensions | 0.11 kg weight

Key Features:

• Original New Mitsubishi QJ71E71-100 module

• Ethernet interface for MELSEC-Q series PLCs

• 10BASE-T/100BASE-TX auto-negotiation

• RJ45 connector for standard Ethernet cabling

• Up to 16 simultaneous connections for multi-device communication

• Fixed buffer memory: 1K words × 16 for data exchange

• Random access buffer: 6K words × 1 for flexible data handling

• TCP/IP and UDP/IP protocol support

• Email transmission/reception with attachments (6K words × 1, body: 960 words × 1)

• 32 occupied I/O points (I/O assignment: Intelligent 32 points)

• Compact design: 98 × 27.4 × 90 mm

• Lightweight: 0.11 kg

• CE, UL/cUL, marine approvals (ABS, BV, DNV GL, LR, NK, RINA)

• RoHS compliant

• Direct connection to PLC CPU via dedicated instructions

• Web server function support

Applications:

• Integration of MELSEC-Q series PLCs into Ethernet networks

• Machine and plant control via TCP/IP or UDP/IP

• Process automation and data acquisition

• Connection to SCADA systems and host computers

• Email notification for system status and alarms

• Remote monitoring and maintenance

• Data exchange between multiple PLC CPUs and higher-level systems

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series CPU modules (Q00J, Q00, Q01, Qn, QnH, QnPH, QnPRH, QnU series)

• Installs in Q series main base unit or expansion base unit (1 slot)

• Supported by products with serial number prefix 15042 or later

• Programming and configuration via GX Works2 or GX Developer

• Dedicated PLC instructions for data transmission (OPEN, CLOSE, BUFSND, BUFRCV, etc.)

Related Products:

• QJ71E71-B5 – Ethernet interface module (10BASE5/10BASE-T, BNC connector)

• QJ71E71-B2 – Ethernet interface module (10BASE2, coaxial connector)

• QJ71C24N-R2 – Serial communication module (2 × RS-232)

• QJ71MT91 – MODBUS/TCP interface module

• LJ71E71-100 – Ethernet interface module for MELSEC-L series
