QX80 16-Point Digital Input Module 24V DC Source | Mitsubishi

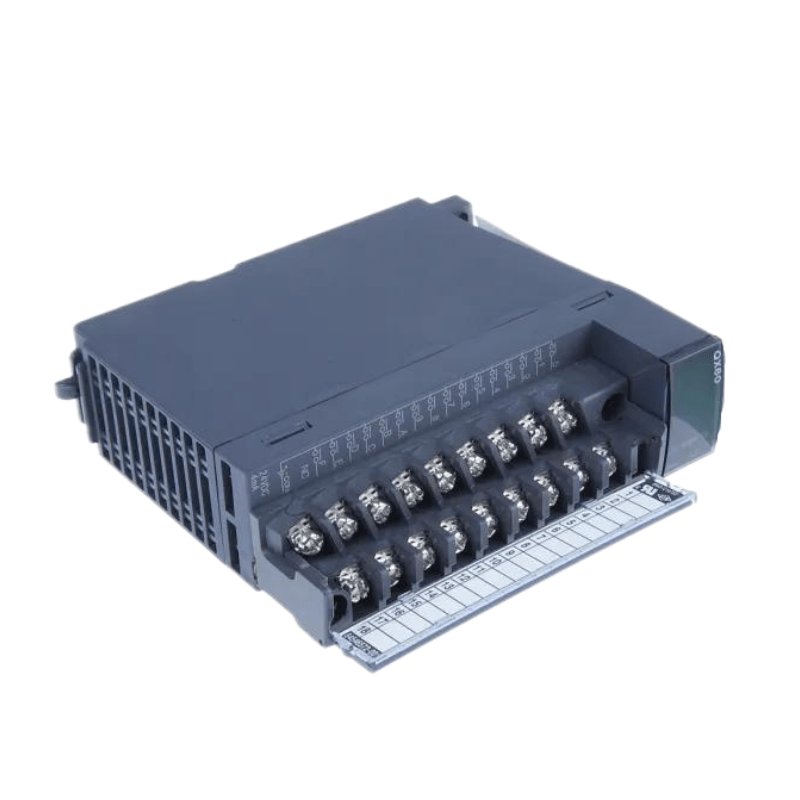

The Original New Mitsubishi QX80 is a 16-point digital input module from the MELSEC-Q series, designed for reliable ON/OFF signal acquisition in industrial automation systems. It accepts 24 V DC source-type input signals and features an 18-point screw terminal block for field wiring. The module uses opto-isolator insulation between input terminals and the PLC power supply, ensuring reliable signal transmission in electrical noisy environments. As part of the MELSEC-Q QnU series, it integrates directly into Q series base units and is compatible with QnU, QnH, and other Q series CPU modules. Its compact 27.4 mm width and 98 × 90 mm footprint make it suitable for space-efficient control panel installations.

Core Engineering Highlights:
16 digital inputs (24 V DC, source/negative common type) | 4 mA rated input current | Selectable input response time: 1 / 5 / 10 / 20 / 70 ms | Opto-isolator insulation | 16 points/common | 50 mA (TYP.) internal current consumption | 18-point screw terminal block | 0.16 kg weight | IP2X protection

Key Features:

• Original New Mitsubishi QX80 module

• 16 digital input points, 24 V DC source type (negative common)

• 4 mA rated input current at 24 V DC

• Selectable input response time: 1 / 5 / 10 / 20 / 70 ms

• ON voltage/current: 19 V or more / 3 mA or more

• OFF voltage/current: 11 V or less / 1.7 mA or less

• Opto-isolator insulation between input terminals and PLC power supply

• 16 points/common configuration (common terminal: TB18)

• 18-point screw terminal block (M3 screws) for field wiring

• ON display LED per input point for easy status verification

• Occupied I/O points: 16 (I/O assignment: Input 16 points)

• Compact 27.4 mm width for high-density panel mounting

• RoHS compliant

Applications:

• Digital signal acquisition from sensors, limit switches, and pushbuttons

• Factory automation and production line control

• Conveyor and material handling systems

• Packaging machinery and assembly line monitoring

• Process control and machine automation

• Distributed I/O systems with MELSEC-Q series

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series base units (main base and extension base)

• Compatible with Q series CPU modules including QnU, QnH, QnPH, QnPRH, and Q00J/Q00/Q01 series

• Installs in any Q series I/O slot via the Q series backplane bus

• Programming and configuration via GX Works2 or GX Developer engineering software

Related Products:

• QX80-TS – 16-point DC input module with spring-clamp terminal block

• QX81 – 32-point DC input module (source type)

• QX82 – 64-point DC input module (source type)

• QX40 – 16-point DC input module (sink type)

• QY10 – 16-point relay output module

• Q61P – Power supply module for MELSEC-Q base units

• Q38B – 8-slot main base unit for Q series
