Mitsubishi QX81 MELSEC‑Q 32‑Point DC Input Module 24V Source Type
Mitsubishi QX81 MELSEC‑Q 32‑Point DC Input Module 24V Source Type
53 in stock
Couldn't load pickup availability

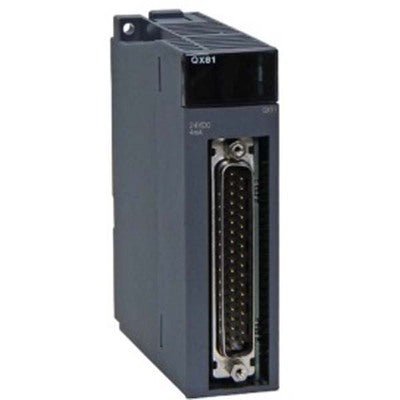

Mitsubishi Electric MELSEC‑Q series digital input module with 32 source‑type (positive common) channels. Rated input voltage 24 V DC (+20 %/ –15 %), rated input current approx. 4 mA (6 mA for QX81‑S2 variant). Configurable input response time (1, 5, 10, 20, 70 ms, default 10 ms). 32 points share a single common. Photocoupler isolation between input terminals and PLC power supply. 37‑pin D‑sub connector interface. 98 (H) × 27.4 (W) × 90 (D) mm, 0.16 kg. For MELSEC‑Q series main base units and extension base units. Suitable for high‑density digital signal acquisition in factory automation, process control, and machine automation systems.
Applications:
-
Digital signal acquisition from sensors, limit switches and pushbuttons
-
High‑density input expansion for Q series PLC systems
-
Conveyor control and material handling systems
-
Packaging machinery and assembly line monitoring
-
Factory automation and process control input panels
Core Specifications:
| Parameter | Specification |
|---|---|
| Number of inputs | 32 (source type, positive common) |
| Rated input voltage | 24 V DC (+20 % / –15 %, ripple ≤ 5 %) |
| Rated input current | Approx. 4 mA (6 mA for QX81‑S2 variant) |
| Input impedance | Approx. 5.6 kΩ |
| ON voltage / ON current | ≥ 19 V DC / ≥ 3 mA |
| OFF voltage / OFF current | ≤ 11 V DC / ≤ 1.7 mA |
| Response time | Configurable 1, 5, 10, 20, 70 ms (default 10 ms, set via PLC parameter) |
| Isolation method | Photocoupler |
| Withstand voltage | 560 V AC rms for 3 cycles |
| Insulation resistance | ≥ 10 MΩ (insulation resistance tester) |
| Noise immunity | 500 Vp‑p noise voltage, 1 μs noise width, 25 ‑ 60 Hz noise frequency; IEC 61000‑4‑4: 1 kV |
| Protection rating | IP2X |
Power Consumption & Physical Specifications:
| Parameter | Specification |
|---|---|
| Internal current consumption (5 V DC) | 75 mA (TYP., all points ON) |
| Occupied I/O points | 32 (I/O assignment: Input 32 points) |
| Common terminal arrangement | 32 points / 1 common (common terminals: 17, 18, 36) |
| External connection | 37‑pin D‑sub connector (A6CON1E, A6CON2E, A6CON3E optional) |
| Applicable wire size | 0.088 ‑ 0.3 mm² |
| Dimensions (H × W × D) | 98 mm × 27.4 mm × 90 mm |
| Weight | 0.16 kg |
| Operating temperature | 0 °C … 55 °C |
| Storage temperature | –20 °C … 75 °C |
| Operating humidity | 10 % … 90 % (non‑condensing) |
System Integration:
-
This input module belongs to the Mitsubishi Electric MELSEC‑Q series.
-
Installs into any MELSEC‑Q series main base unit (Q3□B, Q5□B, Q6□B series) or extension base unit slot via the Q series backplane bus.
-
Compatible with Q series CPU modules (Q00J, Q00, Q01, Qn, QnH, QnPH, QnPRH, QnU series).
-
Input response time is set via I/O assignment parameters in GX Works2 or GX Developer.
-
Requires optional A6CON1E (screw terminal block conversion module) for field wiring.
-
For detailed wiring and configuration, refer to the MELSEC‑Q series User's Manual (Hardware Design, Maintenance and Inspection).
Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details (CE, UL, cUL).
Related Products:
-
QX80 – 16‑point DC input module (source type)
-
QX81‑S2 – 32‑point DC input module, 6 mA rated input current (higher sensitivity)
-
QY10 – 16‑point relay output module
-
QY80 – 16‑point source transistor output module
-
A6CON1E – 37‑pin D‑sub screw terminal block conversion module
-
A6CON2E – 37‑pin D‑sub spring clamp terminal block conversion module
-
Q61P – Power supply module for Q series base unit
