QY10 16-Point Relay Output Module 240V AC/24V DC 2A | Mitsubishi

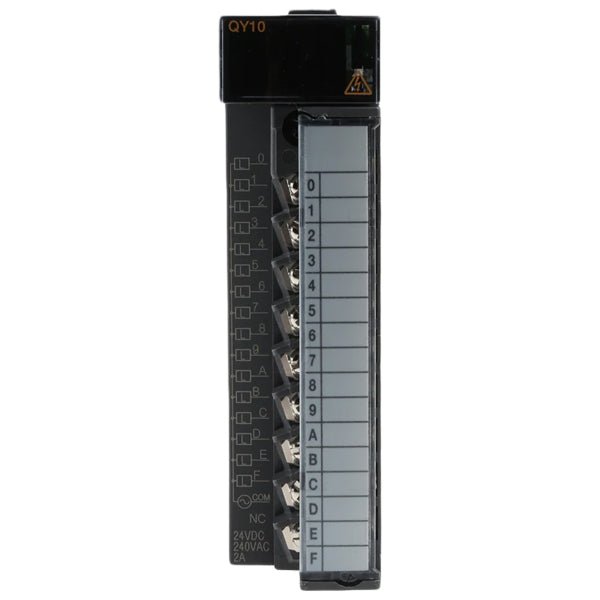

The Original New Mitsubishi QY10 is a 16-point relay output module for the MELSEC-Q series PLC system, designed to provide flexible AC/DC load switching in industrial automation applications. Each of the 16 independent normally open relay contacts is rated at 2A per point (8A per common) and supports switching from 5V DC/1mA up to 264V AC or 125V DC. The module features a single common arrangement for simplified wiring, LED status indication per output point, and high isolation for reliable operation in demanding environments. Part of the Q series I/O system, it integrates seamlessly with QnU, QnH, and QnPRH CPU modules.

Core Engineering Highlights:
16 relay outputs (normally open contacts) | 240V AC / 24V DC rated load voltage | 2A per point, 8A per common | ≤10 ms OFF→ON / ≤12 ms ON→OFF response time | 16 points per common | Screw terminal connection | 430 mA @ 5V DC current consumption | 98 × 27.4 × 90 mm | 0.22 kg weight | IP1X protection | 20 million cycles mechanical life

Key Features:

• Original New Mitsubishi QY10 module

• 16 relay outputs with normally open (NO) contacts

• Rated load voltage: 240V AC / 24V DC

• Rated switching current: 2A per point, 8A per common

• Wide switching range: 5V DC/1mA to 264V AC or 125V DC

• Fast response: OFF→ON ≤10 ms, ON→OFF ≤12 ms

• 16 points per common (common terminal: TB17)

• Screw terminal connection (18-point terminal block, M3×6 screws)

• LED indicator per output point for status verification

• Mechanical life: ≥20 million switching cycles

• Electrical life: ≥100,000 switching cycles at rated load

• Maximum switching frequency: 3,600 operations/hour

• DIN rail or panel mounting

• High insulation resistance: 10 MΩ

• Conforms to CE, UL/cUL, UKCA, RoHS

• Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA

Applications:

• Switching of solenoids, contactors, and relays

• Control of signal lamps, small motors, and alarm indicators

• Interfacing with AC or DC loads in machine control panels

• General-purpose discrete output control in factory automation

• Legacy system upgrades and spare part replacement for Q series configurations

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series CPU modules (QnU, QnH, QnPH, QnPRH series)

• Installs in Q series main base unit or expansion base unit (1 slot)

• Compatible with Q series I/O modules and intelligent function modules

• Part of the MELSEC-Q series I/O system architecture

Related Products:

• QY18A – 8-point relay output module (all points independent)

• QY22 – 16-point TRIAC output module (AC load switching)

• QY40P – 16-point transistor output module (sink type, 0.1A)

• QY50 – 16-point transistor output module (sink type, 0.5A)

• QY80 – 16-point transistor output module (source type, 0.5A)

• QY10-TS – Spring-clamp terminal version of QY10

• QY10-C – Conformal coated version for harsh environments

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi and MELSEC are trademarks of Mitsubishi Electric Corporation.
