QY80 16-Point Transistor Output Module 24V DC Source | Mitsubishi

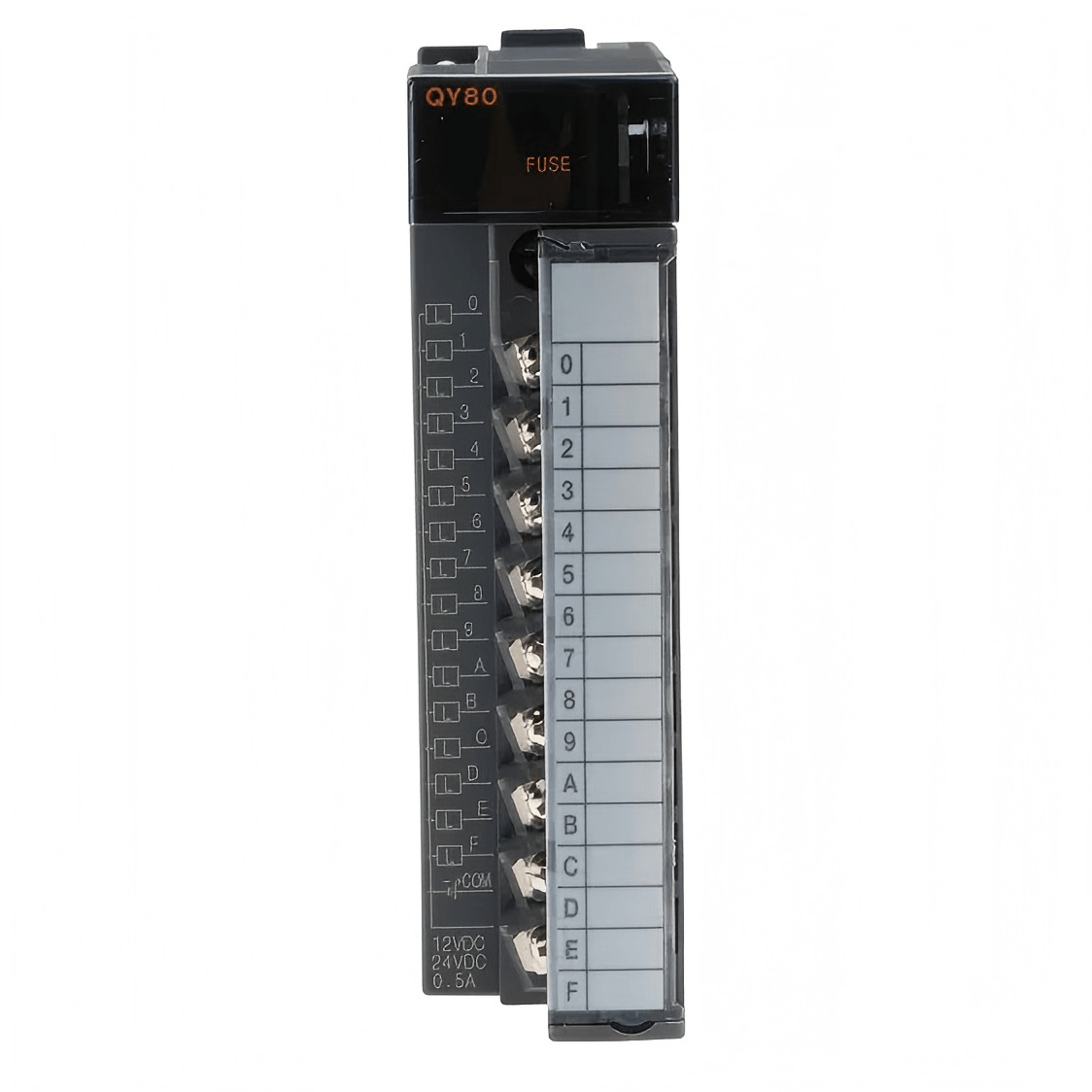

The Original New Mitsubishi QY80 is a 16-point transistor output module (source type) from the MELSEC-Q series, designed for high-speed switching of DC loads in industrial automation systems. It features photocoupler isolation, a rated load voltage of 12–24 V DC, and a maximum load current of 0.5 A per point with 4 A per common. The module includes a built-in fuse with blow indication (LED and signal output to CPU) and a Zener diode surge suppressor for enhanced reliability. Its 18-point screw terminal block provides secure field wiring, and the compact 27.4 mm width allows efficient use of panel space. As part of the Q series platform, it integrates directly into Q series base units and is compatible with QnU, QnH, and other Q series CPU modules.

Core Engineering Highlights:
16 transistor outputs (source type) | 12–24 V DC rated load voltage | 0.5 A per point, 4 A per common | OFF to ON response: 1 ms or less | Photocoupler isolation | Built-in fuse with blow indication | Zener diode surge suppressor | 18-point screw terminal block | 0.17 kg weight

Key Features:

• Original New Mitsubishi QY80 module

• 16 transistor outputs, source type (positive common)

• Rated load voltage: 12–24 V DC (+20%/-15%, ripple ratio within 5%)

• Maximum load current: 0.5 A per point, 4 A per common

• Maximum inrush current: 4 A, 10 ms or less

• Leakage current at OFF: 0.1 mA or less

• OFF to ON response time: 1 ms or less (rated resistive load)

• Built-in fuse (6.7 A, unchangeable, blow capacity 50 A) with fuse blow indication (LED and signal output to CPU)

• Zener diode surge suppressor for inductive load protection

• Photocoupler isolation between output terminals and PLC power supply

• 18-point screw terminal block (M3 × 6 screws) for field wiring

• Applicable wire size: 0.3–0.75 mm²; applicable crimping terminal: R1.25-3

• 16 points/common (common terminal: TB17)

• Occupied I/O points: 16 (I/O assignment: Output 16 points)

• Internal current consumption (5 V DC): 80 mA (TYP., all points ON)

• Compact 27.4 mm width for high-density panel mounting

• RoHS compliant

Applications:

• High-speed switching of DC solenoids, relays, and indicator lamps

• Factory automation and production line control

• Conveyor and material handling systems

• Packaging machinery and assembly equipment

• Process control and machine automation

• Distributed I/O systems with MELSEC-Q series

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC-Q series base units (main base and extension base)

• Compatible with Q series CPU modules including QnU, QnH, QnPH, QnPRH, and Q00J/Q00/Q01 series

• Installs in any Q series I/O slot via the Q series backplane bus

• Programming and configuration via GX Works2 or GX Developer engineering software

• For AnS/QnAS series replacement, the conversion adapter ERNT-ASQTY80 enables reuse of existing wiring (A1SY80 → QY80)

Related Products:

• QY80-TS – 16-point transistor output module with spring-clamp terminal block

• QY81P – 32-point transistor output module (sink type, 0.5 A)

• QY10 – 16-point relay output module (2 A)

• QX80 – 16-point digital input module (source type)

• Q61P – Power supply module for MELSEC-Q base units

• Q38B – 8-slot main base unit for Q series

• ERNT-ASQTY80 – Conversion adapter for AnS/QnAS series replacement
