R38B MELSEC iQ-R 8-Slot Main Base Unit | Mitsubishi

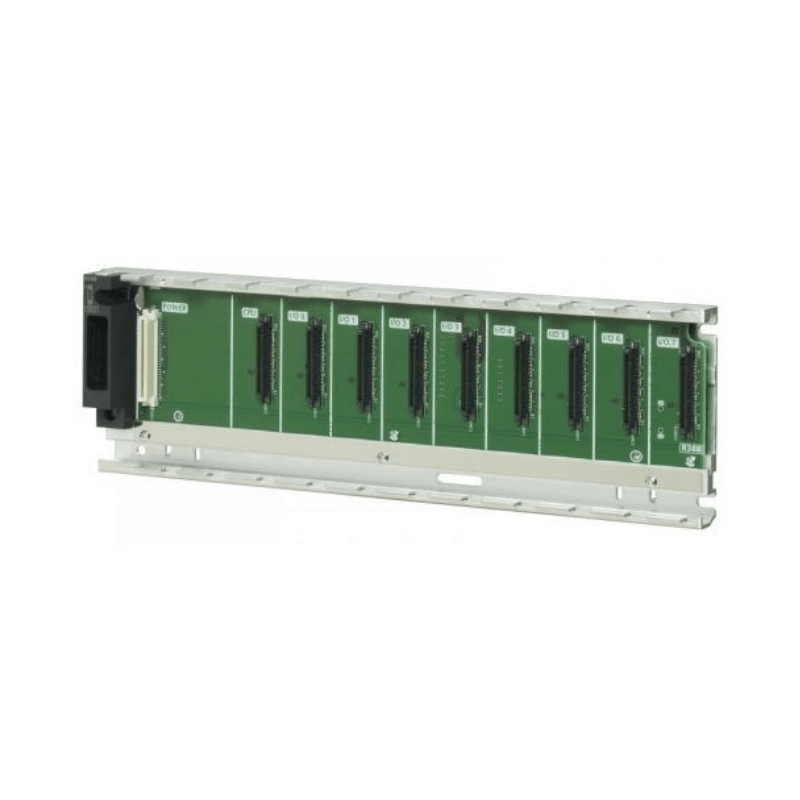

The Original New Mitsubishi R38B is an 8-slot main base unit (backplane/rack) for the MELSEC iQ-R series programmable controller platform. It provides the physical and electrical foundation for assembling a modular control system, accommodating one power supply module, one CPU module, and up to six I/O or intelligent function modules. The R38B features a rigid metal construction with M4 mounting holes for surface/panel installation and supports optional DIN rail mounting via the R6DIN1 adapter (sold separately). As the central chassis of an iQ-R system, it enables high-speed backplane communication between modules, supports multi-CPU configurations, and allows expansion with up to seven extension base units for large-scale automation applications.

Core Engineering Highlights:
8 total slots (1 power supply + 1 CPU + 6 I/O module slots) | 5 V DC internal current consumption: 0.71 A | Dimensions (H × W × D): 101 × 328 × 32.5 mm | Weight: approx. 0.55 kg | Mounting: panel/surface mount (M4 screw holes) | Optional DIN rail adapter: R6DIN1 (sold separately) | Supports up to 4 CPU modules | Expandable with up to 7 extension base units

Key Features:

• Original New Mitsubishi R38B main base unit

• 8 slots: 1 dedicated power supply slot (leftmost), 1 CPU slot (second from left), 6 slots for I/O and intelligent function modules

• Rigid metal base with M4 mounting holes (or ø4.5 mm holes for M4 screws) for secure surface/panel installation

• Supports optional DIN rail mounting with the R6DIN1 adapter (sold separately)

• High-speed iQ-R backplane bus for low-latency communication between modules

• Multi-CPU configuration support (up to 4 CPUs per rack)

• Expandable with up to 7 extension base units via RC series extension cables (0.6 m to 10 m)

• Compatible with the full range of MELSEC iQ-R series modules

• Compact 328 mm width for space-efficient panel layout

• RoHS compliant, CE, UL/cUL, UKCA approved

• Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA

Applications:

• Central chassis for MELSEC iQ-R series PLC systems

• Hosting power supply, CPU, I/O, and intelligent function modules

• Multi-CPU configurations for high-speed motion control and sequence control

• Medium to large-scale machine automation and process control

• Factory automation and production line control panels

• Distributed I/O architectures with extension base units

• Industrial control panels requiring modular PLC configuration

Technical Specifications:

System Compatibility:

• Compatible with all Mitsubishi MELSEC iQ-R series power supply modules (R61P, R62P, R63P, R64P, R61SP, R64RP)

• Compatible with all iQ-R series CPU modules (R00CPU, R01CPU, R02CPU, R04CPU, R08CPU, R16CPU, R32CPU, R64CPU, R120CPU, and Motion CPU modules)

• Compatible with the full range of iQ-R series I/O modules, intelligent function modules, and communication modules

• Expandable with iQ-R series extension base units (R65B, R68B, R612B) using RC series extension cables

• Multi-CPU configurations supported (up to 4 CPUs per rack)

• Configured via GX Works3 engineering software

Related Products:

• R33B – 3-slot main base unit (lower slot count)

• R35B – 5-slot main base unit (mid slot count)

• R312B – 12-slot main base unit (higher slot count)

• R65B – 5-slot extension base unit with power supply slot

• R68B – 8-slot extension base unit with power supply slot

• R61P – Power supply module, 100–240 V AC input, 5 V DC 6.5 A output

• R04CPU – iQ-R series CPU module, 40K steps program capacity

• RX40C7 – 16-point digital input module, 24 V DC

• R6DIN1 – DIN rail mounting adapter for R38B (sold separately)

• GX Works3 – Engineering software for MELSEC iQ-R series
