R60AD4 MELSEC iQ-R 4-Channel Analog Input Module 80µs | Mitsubishi

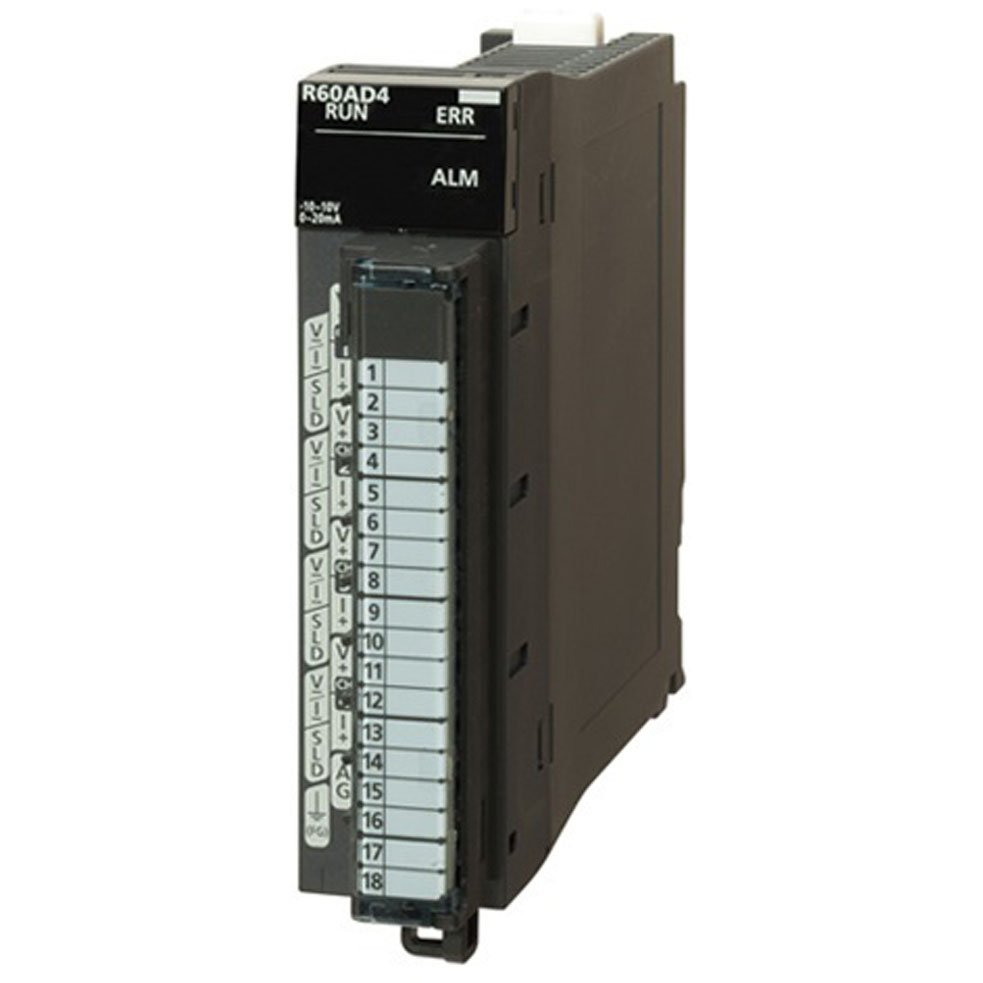

The Original New Mitsubishi Electric R60AD4 MELSEC iQ-R Analog Input Module is a high-speed 4-channel analog input unit designed for precise voltage and current signal acquisition in industrial automation systems. Accepting ±10 V DC and 0–20 mA DC signals, it delivers 16-bit resolution with an 80 µs per channel conversion speed, enabling responsive process monitoring and control. The module features an 18-point screw terminal block for secure field wiring and occupies 16 I/O points on the PLC rack. Part of the MELSEC iQ-R series, it supports advanced functions including scaling, alert output, input signal error detection, logging, and inter-module synchronization.

Core Engineering Highlights:
4 analog input channels (voltage/current) | ±10 V DC / 0–20 mA DC input ranges | 16-bit signed binary resolution (-32768 to 32767) | 80 µs per channel conversion speed | ±0.1% accuracy at 25±5°C | 18-point screw terminal block | 16 occupied I/O points | Inter-module synchronization support | Logging and alert output functions

Key Features:

• Original New Mitsubishi Electric R60AD4 module

• 4 analog input channels for voltage (-10 to 10 V DC) or current (0 to 20 mA DC)

• 16-bit signed binary digital output (-32768 to 32767)

• High-speed 80 µs per channel conversion

• Accuracy: within ±0.1% at 25±5°C ambient, within ±0.3% at 0–55°C

• Input resistance: 1 MΩ (voltage), 250 Ω (current)

• 18-point screw terminal block for field wiring

• Occupies 16 I/O points on the PLC rack

• Supports multiple input ranges: 0–10 V, 0–5 V, 1–5 V, -10–10 V, 0–20 mA, 4–20 mA

• Advanced functions: range switching, scaling, alert output, input signal error detection, logging, interrupt function, inter-module synchronization, error history

• Offset/gain settings: up to 50,000 times

• Module status LEDs: RUN, ERR, ALM

Applications:

• Process variable monitoring (pressure, flow, level, temperature)

• Machine automation and high-speed data acquisition

• Packaging machinery and material handling systems

• Factory automation and process control

• Analog signal conversion for sensors and transmitters

• Applications requiring fast, precise analog input in MELSEC iQ-R systems

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC iQ-R series programmable controllers

• Mounts on iQ-R series main base unit or extension base unit

• Configured via GX Works3 engineering software

• Supports inter-module synchronization with other iQ-R modules

Related Products:

• R60ADV8 – 8-channel analog input module (voltage only)

• R60ADI8 – 8-channel analog input module (current only)

• R60AD8-G – 8-channel channel-isolated analog input module

• R60AD16-G – 16-channel channel-isolated analog input module

• R60ADH4 – 4-channel high-speed analog input module (1 µs/channel)

• R60DA4 – 4-channel analog output module

• R60DAV8 – 8-channel analog output module (voltage)

• R60DAI8 – 8-channel analog output module (current)

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi Electric, MELSEC, and iQ-R are trademarks of Mitsubishi Electric Corporation.
