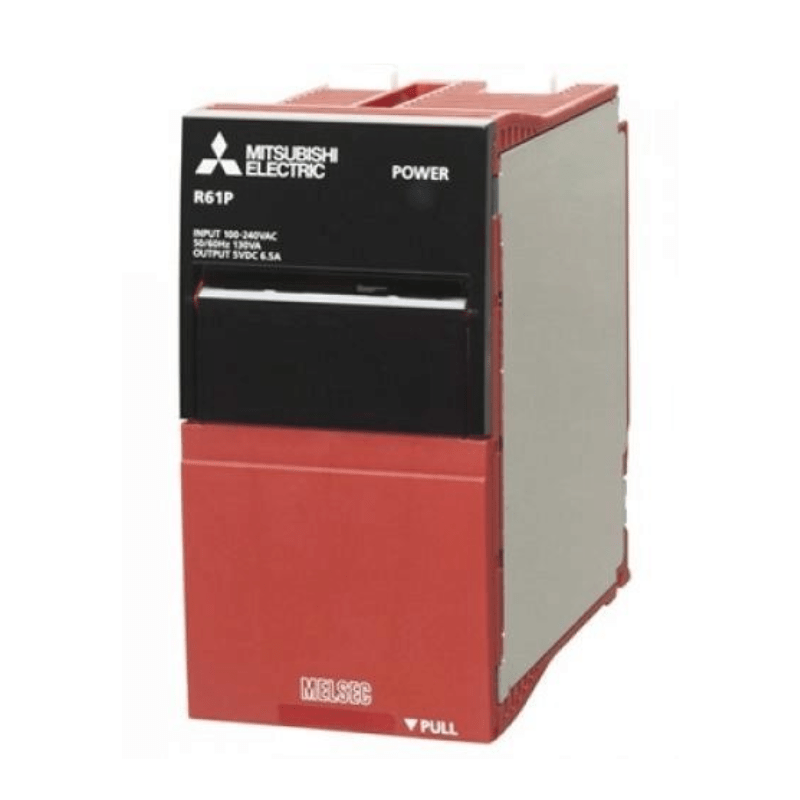

R61P MELSEC iQ-R Power Supply Unit 5V DC 6.5A AC Input | Mitsubishi

The Original New Mitsubishi R61P is a standard AC input power supply unit for the MELSEC iQ-R series programmable controller platform. It converts a wide-range 100–240 V AC input into a stable 5 V DC output rated at 6.5 A, supplying power to the CPU module and all I/O and intelligent function modules mounted on the same base unit. Designed for backplane/rack mounting, the R61P installs in the leftmost slot of an iQ-R main or extension base unit and is the foundation for reliable, high-availability control system operation. With built-in overcurrent and overvoltage protection, an error contact output for external diagnostics, and a compact 54.6 mm width, the R61P delivers dependable power distribution for medium to large automation systems.

Core Engineering Highlights:
100–240 V AC wide-range input (85–264 V AC) | 5 V DC, 6.5 A rated output | 130 VA maximum input apparent power | 20 A inrush current (8 ms or less) | Overcurrent protection: 7.1 A or higher | Overvoltage protection: 5.5–6.5 V | 76% or higher efficiency | 20 ms allowable momentary power failure time | 2300 V AC dielectric withstand voltage | Backplane/rack mounting | 0.41 kg weight

Key Features:

• Original New Mitsubishi R61P power supply unit

• Standard AC input type for MELSEC iQ-R series

• 100–240 V AC input, 50/60 Hz ±5%

• 5 V DC, 6.5 A rated output current

• Maximum input apparent power: 130 VA

• Inrush current: 20 A within 8 ms

• Built-in overcurrent protection (7.1 A or higher)

• Built-in overvoltage protection (5.5–6.5 V)

• Efficiency: 76% or higher

• Allowable momentary power failure time: 20 ms

• Dielectric withstand voltage: 2300 V AC rms per minute between line input/LG terminals and FG/output terminals

• Insulation resistance: 10 MΩ or higher at 500 V DC

• Built-in fuse (user-unchangeable)

• ERR contact output for external failure monitoring (24 V DC, 0.5 A rated switching)

• POWER LED indicator for operational status

• M4.0 terminal screw size, applicable torque 1.02–1.38 N·m

• Backplane/rack mounting in the leftmost slot of the base unit

• RoHS compliant, CE, UL/cUL, UKCA, EAC approved

• Shipping approvals: ABS, BV, DNV GL, LR, NK, RINA

Applications:

• Power supply for MELSEC iQ-R series main base units

• Power distribution to CPU, I/O, and intelligent function modules

• Medium-scale machine automation and process control

• Factory automation and production line control systems

• Industrial control panels requiring stable 5 V DC backplane power

• Redundant-capable power architectures (when used with redundant base units)

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-R series main base units (R33B, R35B, R38B, R312B)

• Compatible with MELSEC iQ-R series extension base units (R65B, R68B, R612B)

• Compatible with all iQ-R series CPU modules (R00CPU, R04CPU, R08CPU, R16CPU, R32CPU, R64CPU, R120CPU, etc.)

• Powers all iQ-R series I/O modules, intelligent function modules, and communication modules mounted on the same base unit

• Installs in the leftmost slot (power supply slot) of the base unit

Related Products:

• R62P – Power supply module, 100–240 V AC input, 5 V DC 3.5 A + 24 V DC 0.6 A output

• R63P – Power supply module, 24 V DC input, 5 V DC 6.5 A output

• R64P – Power supply module, 100–240 V AC input, 5 V DC 9 A output (large capacity type)

• R61SP – Slim type power supply module, 5 V DC 2.5 A output

• R64RP – Redundant power supply module, 100–240 V AC input, 5 V DC 9 A output

• R38B – 8-slot main base unit for iQ-R series

• R312B – 12-slot main base unit for iQ-R series

• R08CPU – iQ-R series CPU module, 80K steps

• R60AD4 – 4-channel analog input module (voltage/current)

• GX Works3 – Engineering software for MELSEC iQ-R series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi, MELSEC, and MELSEC iQ-R are trademarks of Mitsubishi Electric Corporation.
