R64P MELSEC iQ-R Power Supply Module 9A 100-240V AC | Mitsubishi Electric

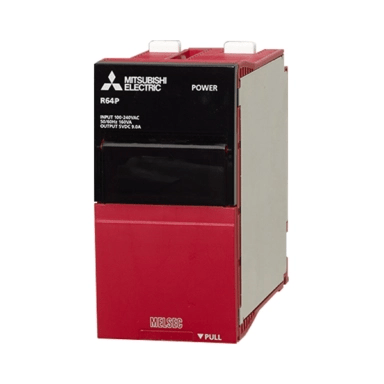

The Original New Mitsubishi Electric R64P is a large-capacity AC power supply module for the MELSEC iQ-R series programmable controller system. Delivering 9 A at 5 V DC, it provides stable backplane power for the CPU module and all connected I/O, intelligent function, and network modules within a single iQ-R base unit. Supporting a wide 100–240 V AC input range (85–264 V AC), the R64P is designed for industrial automation control panels requiring higher current capacity and reliable operation. It mounts directly into the leftmost slot of an iQ-R main base unit or extension base unit.

Core Engineering Highlights:
9 A rated output current at 5 V DC | 100–240 V AC input (85–264 V AC) | 160 VA maximum input apparent power | 20 A inrush current (within 8 ms) | Overcurrent protection 10.0 A or higher (auto-recovery) | Overvoltage protection 5.5–6.5 V | 70% or higher efficiency | 54.6 × 98 (106) × 110 mm | 0.46 kg

Key Features:

• Original New Mitsubishi Electric R64P power supply module

• Large-capacity AC input type for MELSEC iQ-R series (9 A output current)

• Wide input voltage range: 100–240 V AC (+10%, -15%), 85–264 V AC

• Input frequency: 50/60 Hz (±5%)

• Maximum input apparent power: 160 VA

• Inrush current: 20 A within 8 ms

• Overcurrent protection (5 V DC): 10.0 A or higher, auto-recovery

• Overvoltage protection (5 V DC): 5.5–6.5 V, shut off, restart by cycling input power

• Efficiency: 70% or higher

• Allowable momentary power loss duration: within 20 ms

• Withstand voltage: 2,300 V AC for 1 minute (altitude 0–2,000 m) between all inputs/LG and all outputs/FG

• Insulation resistance: 10 MΩ or more at 500 V DC

• Built-in fuse (cannot be replaced by the user)

• Status LEDs for power supply and failure indication

• Backplane / rack mounting (installs in leftmost slot of iQ-R base unit)

Applications:

• Power supply for MELSEC iQ-R series main base units and extension base units

• Industrial automation control panels requiring higher current capacity

• Large-scale PLC configurations with multiple I/O and intelligent function modules

• Factory automation and process control systems

• Systems requiring stable 5 V DC backplane power for CPU and I/O modules

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi Electric MELSEC iQ-R series programmable controllers. Module compatibility should be verified before installation.

• Installs in the leftmost slot of iQ-R series main base units (R33B, R35B, R38B, R312B) and extension base units (R65B, R68B, R612B)

• Compatible with all iQ-R series CPU modules, I/O modules, intelligent function modules, and network modules

• Configuration performed using GX Works3 engineering software

Related Products:

• R61P – 6.5 A standard AC power supply module (lower capacity)

• R62P – 3.5 A AC power supply module with 24 V DC service power supply

• R64RP – 9 A redundant AC power supply module

• R63P – 6.5 A DC input power supply module (24 V DC)

• R38B – 8-slot main base unit for iQ-R series

• R312B – 12-slot main base unit for iQ-R series

• GX Works3 – Programming and configuration software

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi Electric and MELSEC are trademarks of Mitsubishi Electric Corporation.
