RX40C7 16-Point Digital Input Module 24V DC MELSEC iQ-R | Mitsubishi

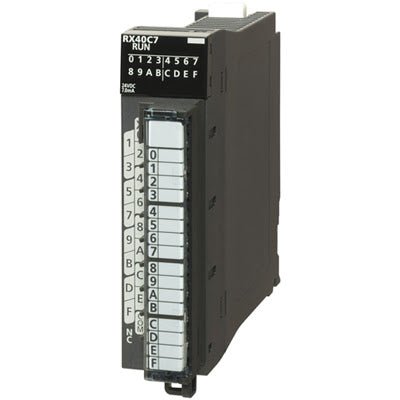

The Original New Mitsubishi RX40C7 Digital Input Local Unit Module is a 16-point DC input module from the MELSEC iQ-R series, designed for reliable signal acquisition from field devices in industrial automation systems. It accepts 24 V DC input signals with a rated input current of 7.0 mA and supports a wide configurable response time range from 0.1 ms to 70 ms, allowing adaptation to different sensor and application requirements. The module features a positive/negative common shared wiring configuration, providing installation flexibility, and is equipped with an interrupt function that can be configured via module parameters. The unit connects to the backplane/rack via an 18-point screw-clamp terminal block and is rated IP2X for protection against finger contact.

Core Engineering Highlights:
16 digital input points | 24 V DC rated input voltage (allowable range 20.4–28.8 V DC) | 7.0 mA typical input current | Selectable response time: 0.1 / 0.2 / 0.4 / 0.6 / 1.5 / 10 / 20 / 70 ms (default 10 ms) | 16 points/common, positive/negative common shared | Interrupt function configurable | 18-point screw-clamp terminal block | 110 mA (TYP., all points ON) internal current consumption | 0.16 kg weight | IP2X protection

Key Features:

• Original New Mitsubishi RX40C7 module

• 16 DC input points, 24 V DC rated voltage (20.4–28.8 V DC allowable range, ripple ratio within 5%)

• 7.0 mA typical input current at 24 V DC

• Selectable response time: 0.1 / 0.2 / 0.4 / 0.6 / 1.5 / 10 / 20 / 70 ms (default 10 ms)

• Positive/negative common shared type, 16 points/common (common terminal: 9)

• Interrupt function available (configurable via module parameter)

• 18-point screw-clamp terminal block for field wiring

• 16 occupied I/O points (I/O assignment: Input 16 points)

• 110 mA internal current consumption (5 V DC, TYP., all points ON)

• Withstand voltage: 510 V AC rms for 1 minute

• Insulation resistance: 10 MΩ or higher

• Noise immunity: 500 Vp-p noise voltage, 1 µs noise width, 25–60 Hz noise frequency

• Backplane/rack mounting

• RoHS compliant

Applications:

• Digital signal acquisition from sensors, limit switches, and pushbuttons

• Factory automation and production line control

• Conveyor and material handling systems

• Packaging machinery and assembly line monitoring

• Process control and machine automation

• Distributed I/O systems with MELSEC iQ-R series

Technical Specifications:

System Compatibility:

• Compatible with Mitsubishi MELSEC iQ-R series programmable controllers

• Mounts in iQ-R series main base unit or extension base unit via the iQ-R backplane bus

• Compatible with R00CPU, R04CPU, R08CPU, R16CPU, R32CPU, R64CPU, R120CPU, and other iQ-R series CPU modules

• Configured via GX Works3 engineering software

• Interrupt function configurable through module parameters

Related Products:

• RX40C7-TS – 16-point DC input module with spring-clamp terminal block

• RX41C4 – 32-point DC input module with 40-pin connector

• RX42C4 – 64-point DC input module with 40-pin connector

• RX40NC6B – 16-point DC input with diagnostic functions (SIL2 mode)

• RY40NT5P – 16-point transistor output module (PNP)

• R60AD4 – 4-channel analog input module (voltage/current)

• GX Works3 – Engineering software for MELSEC iQ-R series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Mitsubishi, MELSEC, and MELSEC iQ-R are trademarks of Mitsubishi Electric Corporation.
