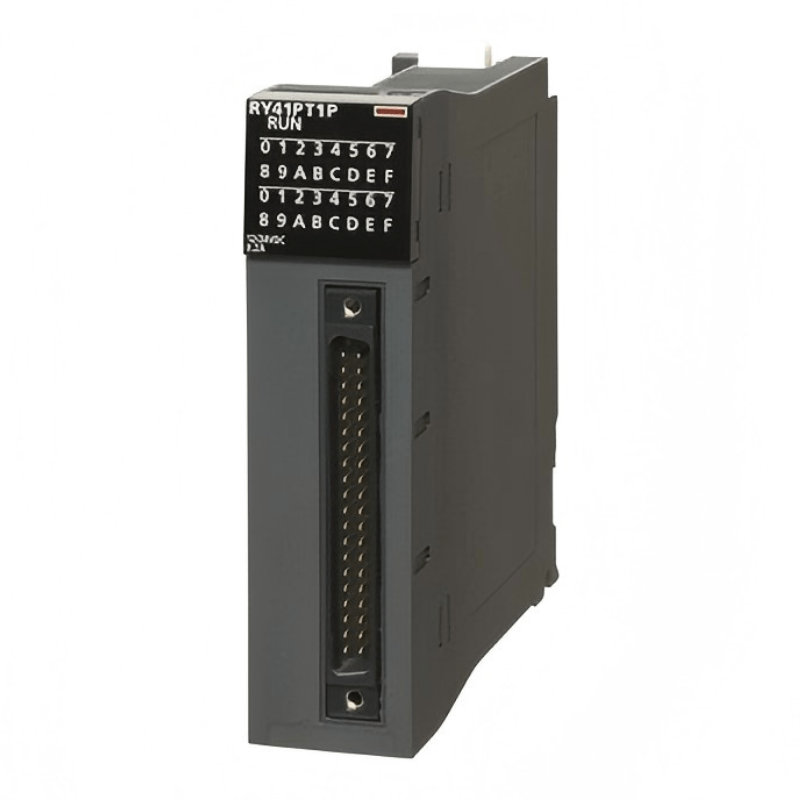

Mitsubishi RY41PT1P MELSEC iQ-R 32-Point Source Transistor Output Module
Mitsubishi RY41PT1P MELSEC iQ-R 32-Point Source Transistor Output Module
99 in stock
Couldn't load pickup availability
Mitsubishi Electric MELSEC iQ‑R series digital output module with 32 independent source‑type (positive common) transistor channels, each rated at 0.1 A. 32 points share a single common with common terminals B01 and B02. OFF→ON response time ≤ 0.5 ms and ON→OFF ≤ 1 ms (rated resistive load). Integrated overload protection (per point, current limited to 1–3 A when detected) and overheat protection (activated in increments of 2 points) — individual external fuses are not required. 40‑pin connector interface for high‑density wiring. 27.8 mm width, 0.11 kg. For MELSEC iQ‑R series main base units and extension base units. Suitable for factory automation, machine control, packaging systems, material handling, and conveyor lines.
Applications:
-
Solenoid valve, relay and indicator light control in machine automation
-
High‑density output expansion for iQ‑R series PLC configurations
-
Conveyor systems, material handling and packaging machinery
-
Factory automation and process control output panels
-
Direct 12‑24 V DC load switching in control cabinets
Technical Specifications:
| Parameter | Specification |
|---|---|
| Number of output points | 32 (source type, positive common) |
| Rated load voltage | 12‑24 V DC (allowable range 10.2‑28.8 V DC) |
| Maximum load current | 0.1 A per point, 2 A per common |
| Maximum inrush current | limited by overload protection function |
| Leakage current at OFF | ≤ 0.1 mA |
| Maximum voltage drop at ON | 0.1 V DC (TYP.) at 0.1 A, 0.2 V DC (MAX.) at 0.1 A |
| Response time | OFF→ON ≤ 0.5 ms, ON→OFF ≤ 1 ms (rated resistive load) |
| Surge suppressor | Zener diode |
| External power supply | 12‑24 V DC (ripple ≤ 5%), current 19 mA (TYP.) at 24 V DC |
| Output common arrangement | 32 points / 1 common (common terminals B01, B02) |
| Withstand voltage | 510 V AC rms for 1 minute |
| Insulation resistance | ≥ 10 MΩ (insulation resistance tester) |
| Noise immunity | 500 Vp‑p, noise width 1 μs, noise frequency 25‑60 Hz (noise simulator) |
| Protection rating | IP2X |
| External connection | 40‑pin connector |
| Occupied I/O points | 32 points (I/O assignment: Output 32 points) |
| Internal current consumption (5 V DC) | 190 mA (TYP., all points ON) |
| Dimensions (H × W × D) | 106 mm × 27.8 mm × 131 mm |
| Weight | 0.11 kg |
| Operating temperature | 0 °C … 55 °C |
| Storage temperature | –20 °C … 75 °C |
| Certifications | CE, UL/cUL, UKCA, ABS, BV, DNV GL, LR, NK, RINA |
Protection Functions:
-
Overload protection: when overcurrent is detected, output current is limited to 1‑3 A per point; activated per point
System Integration:
-
This output module belongs to the Mitsubishi Electric MELSEC iQ‑R series.
-
Installs into any MELSEC iQ‑R series main base unit (R33B, R35B, R38B, R312B) or extension base unit slot via the iQ‑R backplane bus.
-
Compatible with R00CPU, R04CPU, R08CPU, R16CPU, R32CPU, R64CPU, R120CPU, and other iQ‑R series CPU modules.
-
The 40‑pin connector interface mates with standard 40‑pin connector cables (A6CON1, A6CON2, A6CON3, A6CON4 series) .
-
For DIN rail mounting, use R6DIN1 adapter (sold separately). For replacement of legacy MELSEC‑A series AY81/AY81EP modules, use the ERNT‑1AR41Y upgrade tool conversion adapter .
-
For detailed installation, wiring, and configuration, refer to the MELSEC iQ‑R I/O Module User's Manual.
Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
Related Products:
-
R33B / R35B / R38B / R312B – Main base units for iQ‑R series
-
R61P – AC power supply module (100‑240 V AC, 5 V DC 6.5 A)
-
R64P – AC power supply module (100‑240 V AC, 5 V DC 9 A)
-
R6DIN1 – DIN rail mounting adapter
-
A6CON1E – 40‑pin connector screw terminal block conversion module
