OGE500 Through-Beam Sensor Receiver 25m M18 PNP | IFM

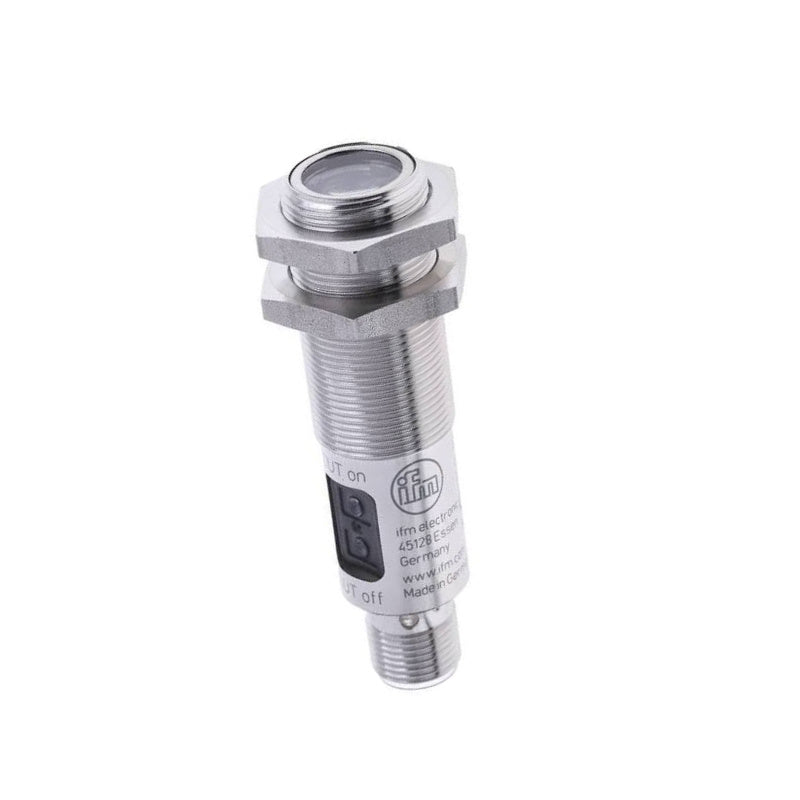

The Original New IFM OGE500 is a through-beam photoelectric sensor receiver designed for precise non‑contact object detection in harsh industrial environments. As part of a two‑part system, it must be used with a matching transmitter (e.g., OGS500) to form a complete through‑beam sensing pair. Its robust stainless steel housing (IP67) and 25 m sensing range ensure reliable detection in factory automation, packaging, and conveying applications. The receiver offers intuitive pushbutton configuration of sensitivity and output function, with programmable light‑on/dark‑on modes, a visible red light source (624 nm), and PNP output with 1,000 Hz switching frequency. An M12 connector (A‑coding) and gold‑plated contacts ensure reliable signal transmission. With a wide operating temperature range of –25°C to +80°C, high vibration and shock resistance, and an MTTF of 786 years, the OGE500 delivers the long‑term stability required for demanding industrial applications.

Core Engineering Highlights:
Up to 25 m sensing range | PNP programmable output (light‑on/dark‑on) | 10‑36 V DC operating voltage | 1,000 Hz switching frequency | 624 nm visible red light | M18 x 1 stainless steel housing (316L) | IP67 protection | M12 connector (A‑coding) | –25°C to +80°C operating temperature | 786 years MTTF | Pushbutton teach‑in

Key Features:

• Original New IFM OGE500 receiver

• Through-beam sensing principle — requires matching transmitter (e.g., OGS500)

• Up to 25 m sensing range for long-distance object detection

• Visible red light (624 nm) with M18 x 1 stainless steel housing (316L/1.4404)

• PNP output with programmable light‑on/dark‑on mode

• 1,000 Hz switching frequency for high‑speed applications

• Pushbutton teach‑in for intuitive sensitivity and output function setting

• IP67 protection for dust‑tight and water‑resistant operation

• M12 connector (A‑coding) with gold‑plated contacts

• Wide ambient temperature range: –25°C to +80°C

• Reverse polarity, short‑circuit (non‑latching), and overload protection

• 786 years MTTF for long‑term reliability

• 2 lock nuts included

• cULus listed — Class 2 power source required

Applications:

• Object presence detection on conveyor and material handling systems

• Positioning and counting in packaging machinery

• Long‑range detection in warehouse and logistics automation

• Factory automation and assembly line monitoring

• High‑speed detection applications requiring 1,000 Hz switching

• Harsh environment installations requiring stainless steel housing and IP67 protection

Technical Specifications:

Electrical Data:

Environmental & Approvals:

Mechanical Data:

System Compatibility:

• Requires matching transmitter (e.g., OGS500) for operation

• PLCs and controllers via PNP digital input

• M12 A‑coded connection cables (4‑pin)

• 24V DC power supplies (Class 2 source recommended for cULus)

• IFM mounting brackets and accessories

Related Products:

• OGS500 – Matching through‑beam transmitter, 25m, M18, 10‑36V DC, M12 connector

• OGS200 – Alternative transmitter for shorter ranges

• EVC001 – M12 female cordset, 2m

• EVC002 – M12 female cordset, 5m

• EVC003 – M12 female cordset, 10m

• E11048 – Mounting clamp, M18

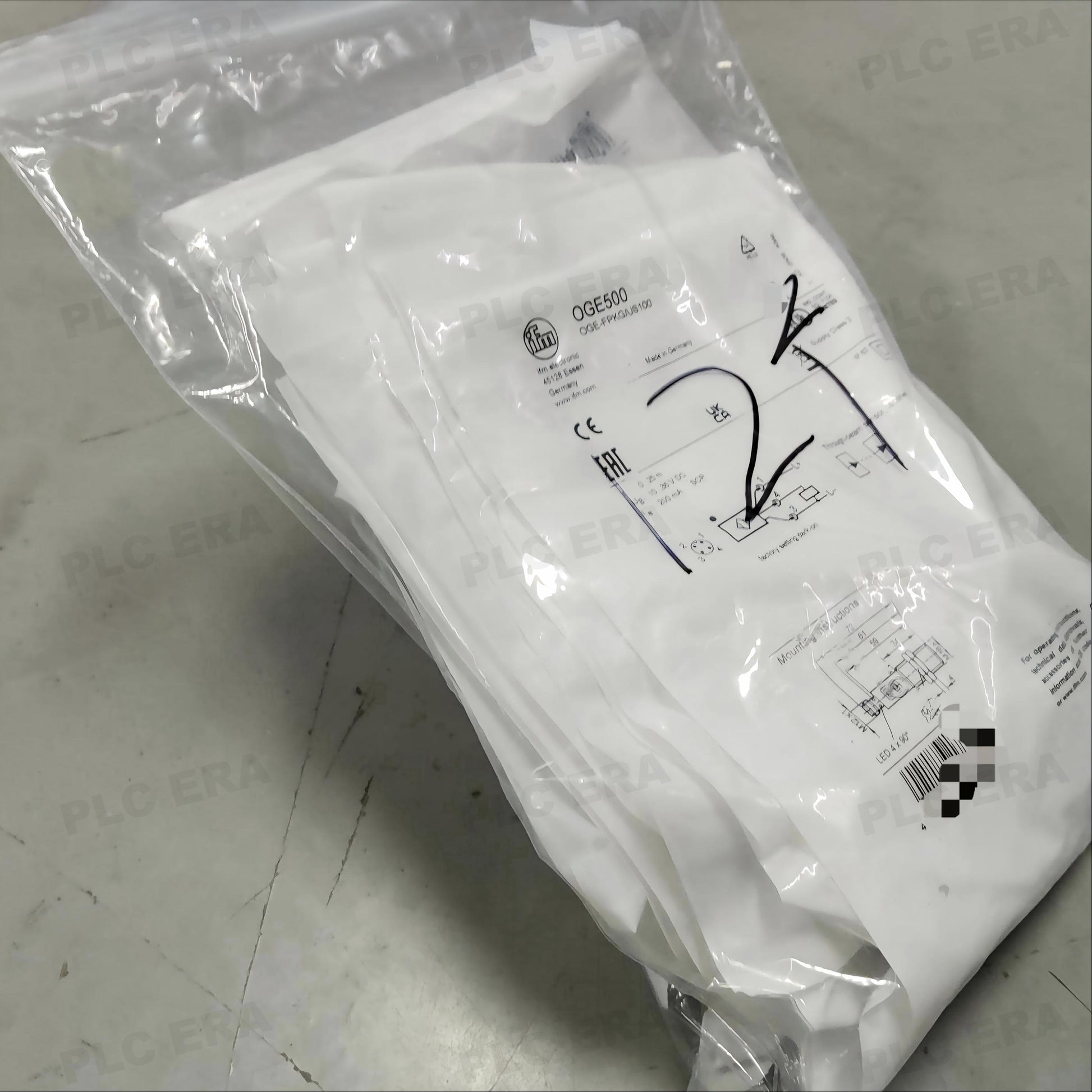

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. IFM is a trademark of ifm electronic gmbh.
