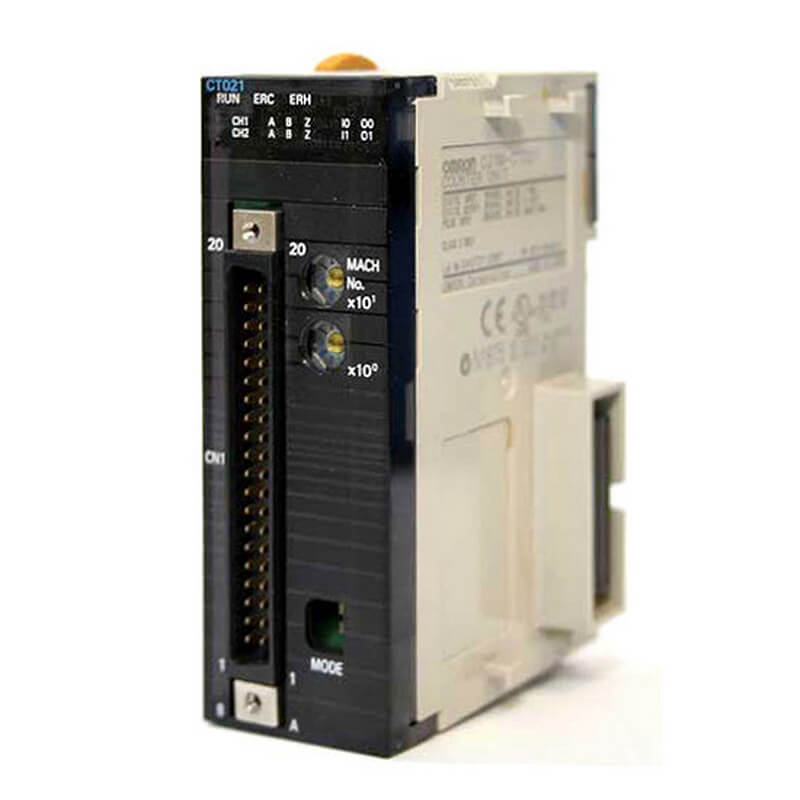

The Original New Omron CJ1W-CT021 High-Speed Counter Unit is a Special I/O Unit for SYSMAC CJ-series PLCs, designed for high-precision position and speed measurement in industrial automation systems. It features two independent 32-bit counters capable of accepting input pulse frequencies up to 500 kHz [0†L7][2†L5][5†L15]. Supporting incremental encoder signals via RS-422 line driver or open-collector inputs, this unit is ideal for motion control, positioning, and high-speed counting applications.

Core Engineering Highlights:
2 independent 32-bit counters | 500 kHz maximum input frequency | RS-422 line driver or open-collector input | 2 external control inputs + 2 external outputs + 30 internal soft outputs | 0.5 ms maximum response time [1†L24-L25][6†L33] | Simple, circular, and linear counting modes | Digital variable noise filter | 0.28 A current consumption [5†L14] | 31 mm width [6†L9] | 100 g weight [6†L9] | CE, cULus, NK, Lloyd's certified [5†L15]

Key Features:

• Original New Omron CJ1W-CT021 module

• 2 independent 32-bit counters (simple, circular, or linear modes selectable via DIP switch) [6†L30-L33]

• Maximum input frequency: 500 kHz (RS-422 line driver) / 50 kHz (open-collector) [0†L7][5†L14]

• Input signals: Phase A, B, and Z (incremental encoder) [6†L34]

• RS-422 line driver and open-collector input support (5 V, 12 V, 24 V) [0†L6][5†L13-L14]

• 2 external control inputs (I0, I1) and 2 external outputs (O0, O1) [6†L34-L37]

• 30 internal soft outputs for advanced control patterns [3†L8][6†L37-L38]

• Maximum response time: 0.5 ms (counter input to external output) [1†L24-L25][6†L33]

• Digital variable noise filter for reliable counting in noisy environments [2†L6]

• Counting modes: phase differential (×1, ×2, ×4), up/down, pulse & direction [6†L38-L40]

• Counter control via CIO software bits: gate, preset, reset, capture, stop/capture/reset [6†L40-L43]

• Occupies 40 words in Special I/O Unit (CIO) Area and 400 DM words [9†L13-L15]

• 40-pin solder-type connector included (Fujitsu FCN-361J040-AU) [5†L24-L26]

• 31 mm width for space-saving installation in CJ-series racks [6†L9]

Applications:

• High-speed position and length measurement on packaging and converting lines

• Encoder feedback for conveyor tracking and material handling

• Speed monitoring and rotation counting in rotary tables and indexing machinery

• High-precision motion control applications requiring 32-bit counting range

• Automated assembly and positioning systems

• Legacy system upgrades and spare part replacement for CJ-series configurations

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ-series CPU units (CJ1, CJ2)

• Compatible with NJ-series CPU units (some functions unavailable – refer to manual) [5†L16-L23]

• Installs on CJ-series CPU Rack or CJ-series Expansion Rack via CJ I/O Bus [6†L10]

• For external interrupt task functionality: unit must be placed within 5 positions of CJ1-H CPU or 3 positions of CJ1M CPU [9†L9-L12]

• Requires 40-pin connector cable and terminal block conversion units for field wiring (sold separately) [5†L34-L39]

Related Products:

• XW2D-40G6 – 40-pin connector-terminal block conversion unit (M3 screw terminals) [5†L39]

• XW2Z-050B / 100B / 200B / 500B – Connecting cables (0.5 m to 5.0 m) [5†L36-L38]

• CJ1W-ID211 – 16-point DC input unit (for general-purpose inputs)

• CJ1W-OD211 – 16-point transistor output unit (for general-purpose outputs)

• CJ2M-CPU32 – CJ2M CPU unit with built-in EtherNet/IP

• CJ1W-PA205R – Power supply unit for CJ-series CPU rack
