CJ1W-DA021 2-Channel Analog Output Unit ±10V/4-20mA | Omron

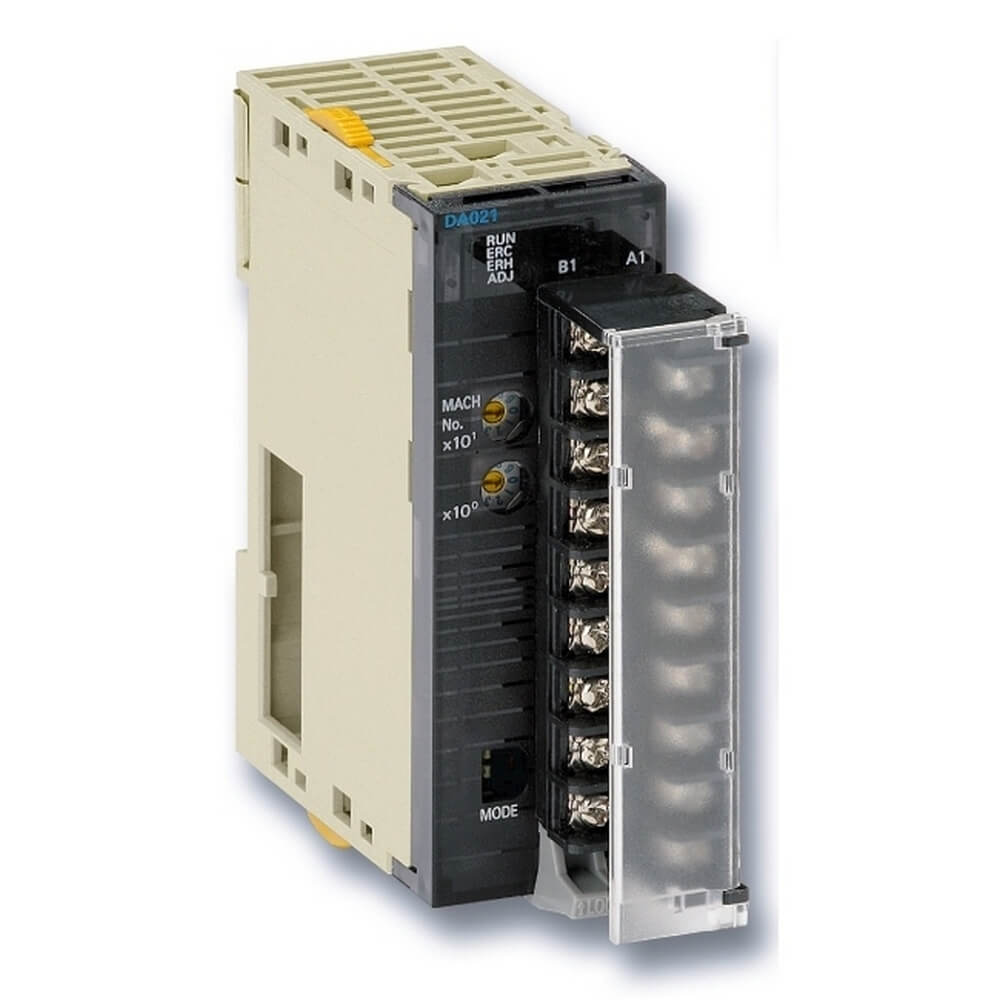

The Original New Omron CJ1W-DA021 is a 2-channel analog output unit for SYSMAC CJ-series PLCs, designed to convert digital values from the CPU into precision analog voltage or current signals for industrial control applications. Each of the 2 outputs is independently configurable for voltage ranges including –10 to +10V, 0 to 10V, 0 to 5V, 1 to 5V, or 4 to 20 mA current output. With 12-bit resolution and photocoupler isolation between outputs and PLC signals, this Special I/O Unit delivers reliable analog control for actuators, drives, valves, and other field devices.

Core Engineering Highlights:
2 analog outputs (voltage/current configurable) | 12-bit resolution (1/4000 full scale) | Output ranges: –10 to +10V, 0–10V, 0–5V, 1–5V, 4–20mA | 1 ms per point D/A conversion | 0.5 Ω output impedance (voltage) | 0.3% voltage / 0.5% current accuracy | Removable screw terminal block | 90 × 31 × 89 mm | 150 g weight | 0°C to 55°C operating temperature

Key Features:

• Original New Omron CJ1W-DA021 module

• 2 independent analog output channels

• Selectable output ranges: –10 to +10V, 0–10V, 0–5V, 1–5V, 4–20mA

• 12-bit resolution (1/4000 full scale)

• 1 ms per point D/A conversion time

• Photocoupler isolation between outputs and PLC signals

• Removable screw terminal block for easy wiring

• Scaling function support

• Output hold function for maintaining outputs during CPU errors

• LED indicators for module status

• DIN rail mounting

• CE, UL, CSA, NK, Lloyd's Register certified

• RoHS compliant

Applications:

• Precision speed control for variable frequency drives and servo systems

• Positioning control for proportional valves and actuators

• Process control signal generation for instrumentation

• Machine automation and industrial control systems

• OEM equipment requiring multi-channel analog output

• 4–20 mA current loop control for industrial transmitters

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ-series CPU units (CJ1, CJ2)

• Compatible with NJ-series Machine Automation Controllers

• Installs on CJ-series CPU Rack or Expansion Rack via CJ I/O Bus

• Configuration performed in CX-Programmer (I/O Table and Unit Setup)

• For detailed installation, wiring, and parameter setting, refer to the CJ-series Analog I/O Units Operation Manual

Related Products:

• CJ1W-DA041 – 4-channel analog output unit (higher density)

• CJ1W-DA08V – 8-channel analog voltage output unit

• CJ1W-DA08C – 8-channel analog current output unit (4–20mA)

• CJ1W-MAD42 – 4 analog inputs + 2 analog outputs combination module

• CJ1W-AD041-V1 – 4-channel analog input unit

• CJ1W-PA205R – Power supply unit for CJ-series CPU rack

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron, SYSMAC, and CJ-series are trademarks of Omron Corporation.
