CJ1W-DA041 4-Channel Analog Output Unit ±10V/4-20mA | Omron

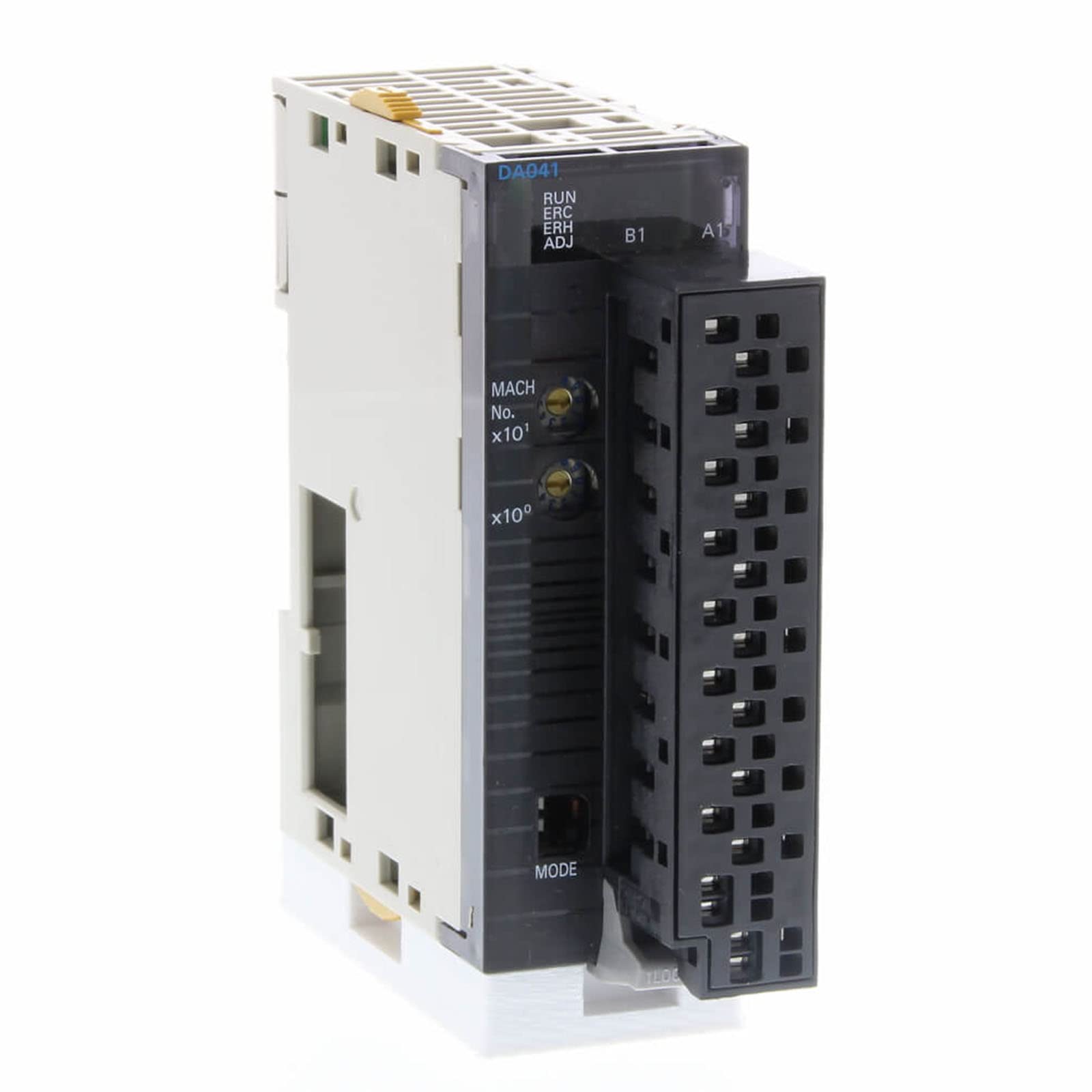

The Original New Omron CJ1W-DA041 is a 4-channel analog output unit for the SYSMAC CJ series programmable logic controller (PLC) platform, designed to convert digital data from the CPU into precise analog signals for control of field devices. It supports voltage (±10 V, 0–10 V, 0–5 V, 1–5 V) and current (4–20 mA) output signals, each channel independently configurable. Featuring 1/4000 resolution, 16-bit binary data conversion, and a 1.0 ms max/point D/A conversion period, this module delivers accurate and responsive analog control for variable speed drives, proportional valves, and actuators. Part of the CJ-series Special I/O Unit family, it is fully compatible with CJ1, CJ2, and NJ series CPU units. External 24 V DC power supply (200 mA) is required for operation.

Core Engineering Highlights:
4 analog output channels (individually configurable) | Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V | Current: 4–20 mA | 1/4000 resolution | 16-bit binary data | 1.0 ms max/point D/A conversion period | 0.5 Ω max external output impedance (voltage) | 600 Ω max allowable load resistance (current) | External 24 V DC power supply (200 mA) | Removable screw terminal block | 31 mm width | 150 g weight | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CJ1W-DA041 module

• 4 analog output channels, individually selectable for voltage or current signals

• Voltage output ranges: –10 to +10 V, 0–10 V, 0–5 V, 1–5 V

• Current output range: 4–20 mA

• 1/4000 resolution for precise analog control

• 16-bit binary data conversion

• 1.0 ms max/point D/A conversion period

• Voltage output: 0.5 Ω max external output impedance, 12 mA max output current per point

• Current output: 600 Ω max allowable load resistance

• Output hold function: maintains specified output status (CLR, HOLD, or MAX) under error conditions

• Overall accuracy: ±0.3% of F.S. (voltage) / ±0.5% of F.S. (current) at 25°C

• Photocoupler isolation between I/O and controller signals

• Detachable screw terminal block (M3 screws) for simplified wiring

• DIN rail mounting for control cabinet installation

• UC1, N, L, CE certified (cULus Class I Division 2, NK, Lloyd‘s, CE)

• RoHS compliant

Applications:

• Speed reference control for variable speed drives and servo drives

• Valve positioning and actuator control

• Analog signal generation for process control

• Machine automation and OEM equipment

• SCADA system analog output expansion

• 4–20 mA current loop control

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ1, CJ2, and NJ series CPU units

• Uses CJ-series I/O bus

• Mounts on CPU rack or expansion rack

• Programming software: CX-Programmer (CX-One) / Sysmac Studio

• Requires external 24 V DC power supply (200 mA)

Related Products:

• CJ1W-AD081-V1 – 8-channel analog input unit

• CJ1W-DA08V – 8-channel analog output unit (voltage)

• CJ1W-DA08C – 8-channel analog output unit (current)

• CJ1W-MAD42 – 4 inputs / 2 outputs combination analog I/O unit

• CJ1W-PA205R – Power supply unit, 100-240 V AC, 25 W, with RUN output

• CJ1W-BC103 – 3-slot CPU rack

• CJ1W-ID211 – 16-point DC input unit

• CJ1W-OD212 – 16-point PNP transistor output unit

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron and SYSMAC are trademarks of Omron Corporation.
