CJ1W-DA08C 8-Channel Analog Output Unit 4-20mA 12-bit | Omron

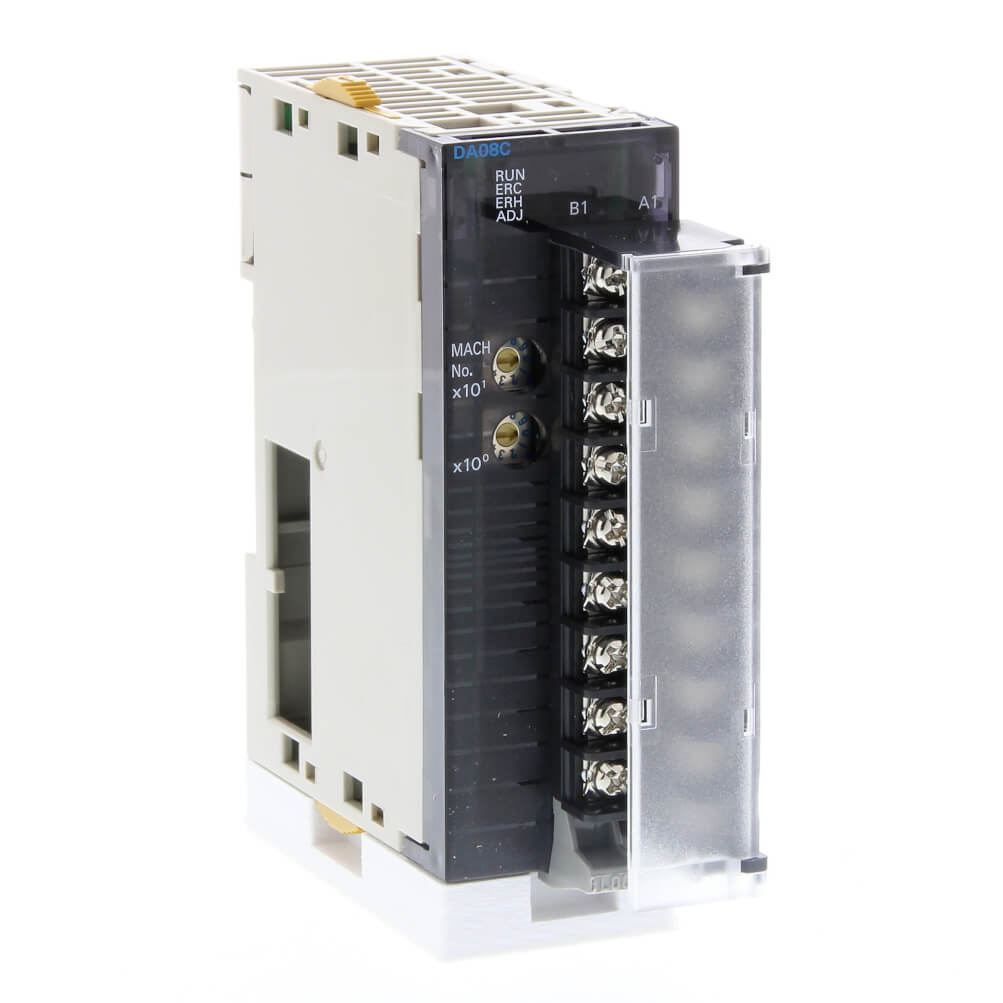

The Original New Omron CJ1W-DA08C is an 8-channel analog output unit for SYSMAC CJ-series PLCs, designed to convert digital values from the CPU into precision analog current signals for industrial control applications. Each of the 8 outputs provides a 4–20 mA signal, making this unit ideal for controlling actuators, valves, drives, and process instrumentation in factory automation and process control systems. As a Special I/O Unit for CJ-series PLCs, it supports scaling functions and output hold capabilities for reliable analog control.

Core Engineering Highlights:
8 analog current outputs (4–20 mA) | 12-bit resolution | 4000 ms/unit conversion time  | 4–20 mA linear analog output type  | Scaling function supported  | Output hold function supported | 0°C to 55°C operating temperature | 90 × 31 × 89 mm | 140 g weight

Key Features:

• Original New Omron CJ1W-DA08C module

• 8 independent analog current output channels

• Output signal: 4–20 mA (linear analog output)

• 12-bit resolution for precise analog control

• Scaling function supported for user-defined engineering units

• Output hold function for maintaining outputs during CPU errors

• 4000 ms/unit conversion time (all 8 channels)

• 1 x I/O connector with detachable terminal block

• LED indicators for module and output status

• DIN rail mounting for space-efficient installation

• Occupies one slot in CJ-series CPU or Expansion Rack

• Special I/O Unit type for flexible system configuration

Applications:

• Precision current loop control (4–20 mA) for actuators and valves

• Speed reference for variable frequency drives and servo systems

• Process control signal generation for instrumentation

• Machine automation and industrial control systems

• OEM equipment requiring multi-channel analog output

• Legacy system upgrades and spare part replacement for CJ-series configurations

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ-series PLCs (CJ1, CJ2)

• Compatible with NJ-series Machine Automation Controllers

• Installs on CJ-series CPU Rack or Expansion Rack via CJ I/O Bus

• Configuration performed in CX-Programmer (I/O Table and Unit Setup)

• For detailed installation, wiring, and parameter setting, refer to the CJ-series Analog I/O Units Operation Manual

Related Products:

• CJ1W-DA08V – 8-channel analog voltage output unit (0–10V, ±10V)

• CJ1W-DA041 – 4-channel analog output unit (voltage/current)

• CJ1W-DA021 – 2-channel analog output unit (voltage/current)

• CJ1W-MAD42 – 4 analog inputs + 2 analog outputs combination module

• CJ1W-AD041-V1 – 4-channel analog input unit

• CJ1W-PA205R – Power supply unit for CJ-series CPU rack

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron, SYSMAC, and CJ-series are trademarks of Omron Corporation.
