CJ1W-EIP21 CJ Series EtherNet/IP Unit 100Base-TX | Omron

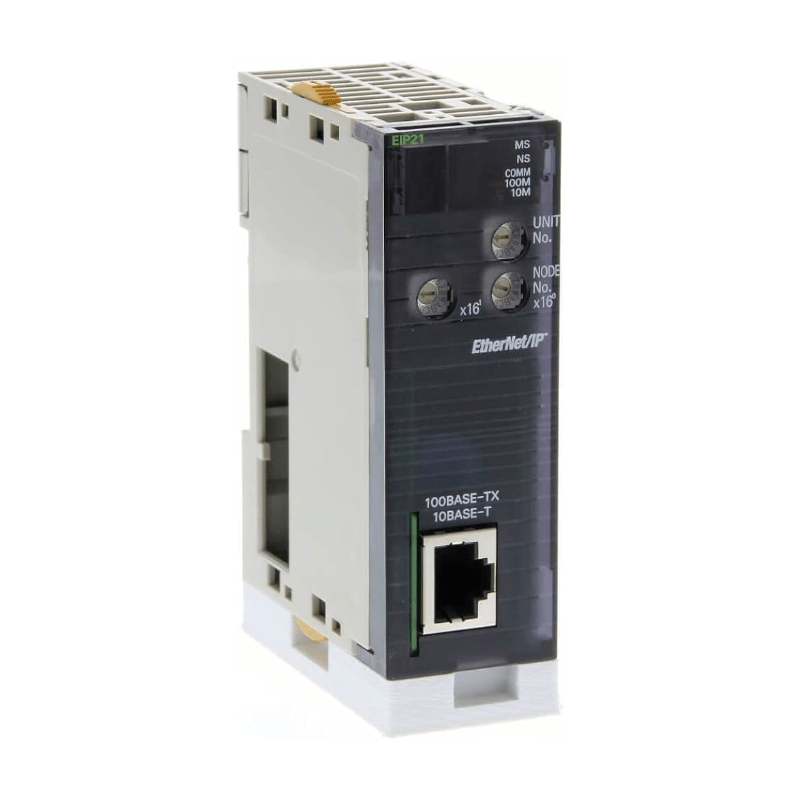

The Original New Omron CJ1W-EIP21 is an EtherNet/IP unit for the SYSMAC CJ series programmable logic controller (PLC) platform, designed to connect production sites to information networks via EtherNet/IP protocol. Equipped with a single RJ45 socket supporting 100Base-TX (100 Mbit/s) and 10Base-T (10 Mbit/s), it provides high-speed data exchange between PLCs, host computers, HMIs, and other Ethernet devices. Featuring a massive 184,832-word tag data link capacity, this unit enables flexible, large-scale data sharing across up to 256 nodes using 256 connections—9 times the capacity of previous OMRON models. Part of the CJ-series CPU Bus Unit family, it is compatible with CJ1, CJ2, NJ-series, CP1H, and NSJ series PLCs.

⚠️ Important Product Status Note:

This product has been discontinued by Omron as of March 2025 (last order date: March 31, 2025). The recommended replacement is the CJ1W-EIP21S (improved security functions). For new designs, please consider the recommended replacement model.

Core Engineering Highlights:
EtherNet/IP tag data link capacity: 184,832 words max (180,000+ words) | 256 connections per unit | 256 tag sets | 0.5–10,000 ms packet interval (refresh cycle) | 100Base-TX/10Base-T auto-negotiation | 1 x RJ45 Ethernet port | FINS/UDP & FINS/TCP message communications | CIP message service (Class 1, 2, 3) | 410 mA current consumption at 5 V DC | 31 × 90 × 65 mm (W × H × D) | 94 g max weight

Key Features:

• Original New Omron CJ1W-EIP21 EtherNet/IP unit

• Massive tag data link capacity: 184,832 words max (up to 722 CH per node)

• 256 connections and 256 tag sets for large-scale data exchange

• CIP communications support: Tag data links (cyclic communications), CIP message communications

• FINS message communications via UDP/IP or TCP/IP with host applications or CX-Programmer

• 0.5–10,000 ms packet interval, independently settable per connection

• 100Base-TX (100 Mbit/s) and 10Base-T (10 Mbit/s) auto-negotiation

• Single RJ45 Ethernet port for network connectivity

• Units per CPU: NJ-series: 4 max., CJ-series: 8 max., CP1H: 2 max.

• Mounts on CPU rack or expansion rack (CJ-series CPU Bus Unit)

• 31 mm width for space-saving installation

• High-speed, high-capacity data link for large-scale system networking

• Non-volatile memory stores Unit settings (IP address, DNS, FINS/UDP/TCP settings)

• UC1, N, L, CE certified

Applications:

• Factory automation network integration for CJ-series PLCs

• High-speed, large-volume data exchange between PLCs and host computers, HMIs, or SCADA systems

• Multi-vendor device communication using standard CIP protocol

• Machine control and manufacturing automation systems

• Process control and data acquisition networks

• Remote monitoring and control via EtherNet/IP

• Production line data sharing across multiple nodes

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ1, CJ2, NJ-series, CP1H, and NSJ series PLCs

• Uses CJ-series I/O bus

• Mounts on CPU rack or expansion rack

• CJ2H-CPU6[]-EIP: up to 7 units per CPU

• CJ2M CPU Unit: up to 2 units per CPU

• NJ-series CPU Unit: up to 4 units per system

• Requires unit version 2.1 or later to connect to NJ-series CPU Unit

• Programming software: CX-Programmer (CX-One), CX-Integrator

• Recommended network device: Switching Hub (W4S1-05D)

Related Products:

• CJ1W-EIP21S – Recommended replacement (enhanced security functions)

• NX102-9000 – NX-series replacement option

• W4S1-05D – Industrial Switching Hub, 5 ports, recommended network device

• CJ1W-PA205R – Power supply unit, 100-240 V AC, 25 W, with RUN output

• CJ1W-ID211 – 16-point DC input unit

• CJ1W-OD212 – 16-point PNP transistor output unit

• CJ1W-OC211 – 16-point relay output unit

• CJ2M-CPU32 – CPU unit with built-in EtherNet/IP

• CX-Programmer – Programming software for CJ-series PLCs

• CX-Integrator – Network configuration tool
