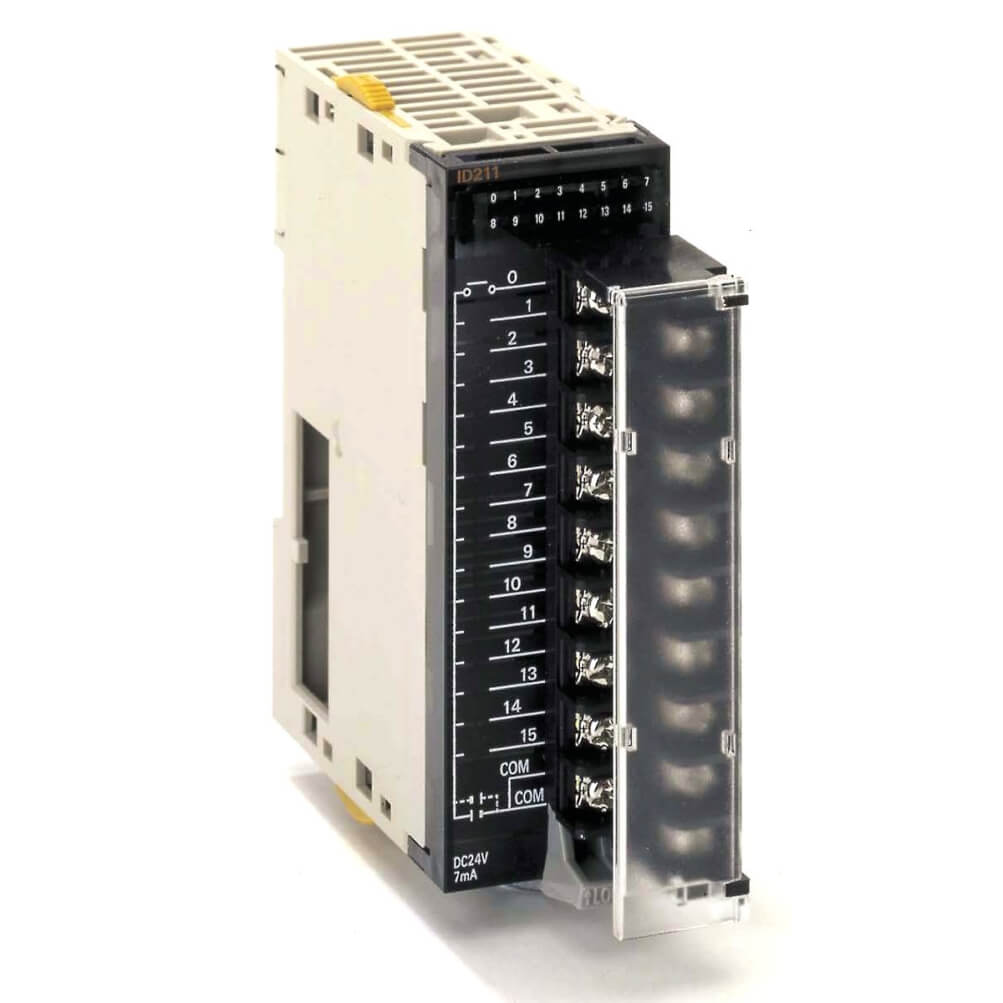

Omron CJ1W-ID211 CJ Series 16-Point DC Input Unit

Omron CJ1W-ID211 is a 16-point DC input unit for the SYSMAC CJ series modular PLC system. DIN rail mounting. Screw terminal connection. Detachable I/O connector for easy installation.

Applications:

• Machine automation and control panel expansion

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• OEM equipment requiring digital input expansion

Core Specifications:

• Number of inputs: 16

• Input type: DC (sink/source, compatible with both NPN and PNP output devices using same polarity within the same common)

• Rated input voltage: 24 V DC

• Permitted input voltage range: 20.4 V DC … 26.4 V DC

• Input impedance: 3.3 kΩ

• Typical input current: 7 mA (at 24 V DC)

• ON voltage/current: 14.4 V DC min. / 3 mA min.

• OFF voltage/current: 5 V DC max. / 0.5 mA max.

• ON response time: configurable 0 ms … 32 ms (can be set in PC settings)

• OFF response time: configurable 0 ms … 32 ms

• Commons: 16 points, 1 common

• External connection: Removable screw terminal block

• I/O connection type: Screw terminal

• I/O connection: Detachable I/O connector

Advanced Specifications:

• Word allocation: 1 word

• Current consumption (5 V DC): 0.08 A

• Current consumption (24 V DC): not applicable

• Dimensions (H × W × D): approx. 90 mm × 31 mm × 85 mm

• Weight: approx. 60 g

• Operating temperature: 0 °C … 55 °C

• Storage temperature: –20 °C … +75 °C

• Certifications: CE, cULus, NK, Lloyd

System Integration:

• This input unit belongs to the Omron SYSMAC CJ series I/O system.

• Clips to the right of a CJ series CPU unit or expansion rack via the CJ I/O bus.

• Mounts on 35 mm DIN rail.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• CJ1W-OD211 – 16-point transistor output unit (sinking)

• CJ1W-OC211 – 16-point relay output unit

• CJ1W-ID231 – 32-point DC input unit (MIL connector)

• CJ1W-ID261 – 64-point DC input unit (MIL connector)
