CJ1W-ID232 CJ Series 32-Point DC Input Module 24V MIL Connector | Omron

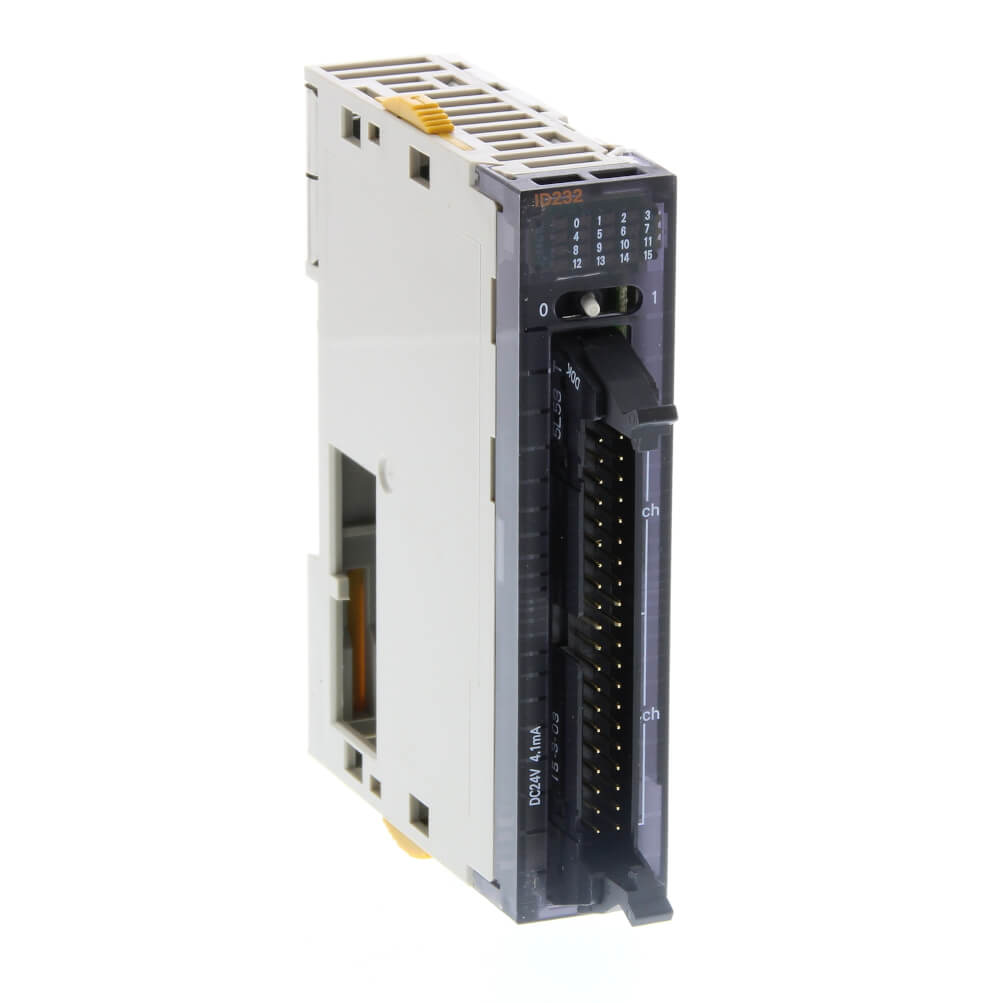

The Original New Omron CJ1W-ID232 is a 32-point DC input unit for the SYSMAC CJ series programmable logic controller (PLC) platform. It accepts 24 V DC signals from field devices such as sensors, pushbuttons, and limit switches, supporting both NPN and PNP output devices without the need for polarity selection. Featuring a MIL40 connector interface for high-density wiring and a configurable digital filter (0–32 ms) to reduce the influence of external noise, this module provides reliable digital signal acquisition for factory automation, machine control, and process automation applications. Part of the CJ-series Basic I/O Unit family, it is fully compatible with CJ1, CJ2, and NJ series CPU units.

Core Engineering Highlights:
32 digital inputs (24 V DC, NPN/PNP compatible) | 4.1 mA typical input current | 20.4–26.4 V DC permitted input voltage | 0–32 ms configurable OFF/ON delay | 1 MIL40 connector (plug not included) | 2 words allocated in I/O memory | 90 mA current consumption at 5 V DC | 20 × 90 × 83.6 mm (W × H × D) | 62 g weight | IP20 protection | 0°C to +55°C operating temperature

Key Features:

• Original New Omron CJ1W-ID232 module

• 32 digital inputs for 24 V DC signals

• NPN/PNP compatible—no polarity selection required; the same polarity is used for the same common

• 4.1 mA typical input current at 24 V DC

• 5.6 kΩ input impedance

• ON voltage/current: 19 V DC min. / 3 mA min.

• OFF voltage/current: 5 V DC max. / 1 mA max.

• Configurable digital filter: 0–32 ms to reduce external noise influence

• MIL40 connector interface for high-density wiring (connector not included)

• 2 words allocated in I/O memory

• 4 COM terminals

• DIN rail mounting for control cabinet installation

• 90 mA current consumption at 5 V DC

• 62 g lightweight design

• IP20 protection for control cabinet environments

• cULus (Class I Division 2 Hazardous Locations), NK, Lloyd‘s certified

Applications:

• Digital signal acquisition from sensors, pushbuttons, and limit switches

• Factory automation and machine control systems

• Conveyor and material handling equipment

• Packaging machinery and assembly lines

• OEM equipment requiring high-density DC input expansion

• CJ and NJ series PLC system I/O expansion

Technical Specifications:

System Compatibility:

• Compatible with Omron SYSMAC CJ1, CJ2, and NJ series CPU units

• Uses CJ-series I/O bus

• Mounts on CPU rack or expansion rack

• MIL connector interface requires separate MIL40 connector cable (e.g., XW2Z-□□□□K)

• Compatible with terminal block conversion units (XW2D-40G6)

• Programming software: CX-Programmer (CX-One) / Sysmac Studio

Related Products:

• XW2Z-100K – 1 m MIL40 connection cable for CJ1W-ID232

• XW2D-40G6 – General-purpose I/O terminal block with MIL40 socket, M3 captive screws, 40 points

• XW2R-□□□□C-2 – Connector-terminal block conversion unit for CJ1W-ID232

• G70V-SID16P – Relay terminal, PLC Input, 16 channels, NPN, Push-in terminals

• G70V-SID16P-1 – Relay terminal, PLC Input, 16 channels, PNP, Push-in terminals

• CJ1W-ID231 – 32-point DC input unit (Fujitsu connector)

• CJ1W-ID233 – 32-point DC input unit (MIL connector, high-speed version)

• CJ1W-ID262 – 64-point DC input unit (MIL connector, 2 × 40-pin)

• CJ1W-PA205R – Power supply unit, 100-240 V AC, 25 W, with RUN output

• CJ1W-BC103 – 3-slot CPU rack

• CJ1W-OD212 – 16-point PNP transistor output unit

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Omron and SYSMAC are trademarks of Omron Corporation.
